ABB Procontrol P14 89MS01 R1300 R1400 Station-Bus Cabinet with Distribute- and Supervising Unit (EMC-Version) Manual

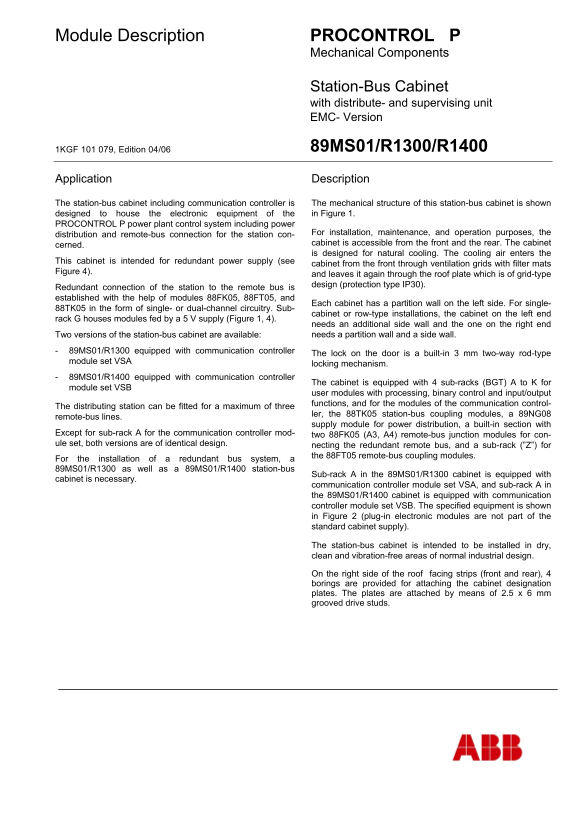

Module Description PROCONTROL P Mechanical Components Station-Bus Cabinet with distribute- and supervising unit EMC- Version

1KGF 101 079, Edition 04/06 89MS01/R1300/R1400

Application Description

The station-bus cabinet including communication controller is The mechanical structure of this station-bus cabinet is shown

designed to house the electronic equipment of the in Figure 1.

PROCONTROL P power plant control system including power

For installation, maintenance, and operation purposes, the

distribution and remote-bus connection for the station con-

cabinet is accessible from the front and the rear. The cabinet

cerned.

is designed for natural cooling. The cooling air enters the

This cabinet is intended for redundant power supply (see

cabinet from the front through ventilation grids with filter mats

Figure 4).

and leaves it again through the roof plate which is of grid-type design (protection type IP30).

Redundant connection of the station to the remote bus is established with the help of modules 88FK05, 88FT05, and

Each cabinet has a partition wall on the left side. For single-

88TK05 in the form of single- or dual-channel circuitry. Sub-

cabinet or row-type installations, the cabinet on the left end

rack G houses modules fed by a 5 V supply (Figure 1, 4).

needs an additional side wall and the one on the right end Two versions of the station-bus cabinet are available: needs a partition wall and a side wall.

- 89MS01/R1300 equipped with communication controller

The lock on the door is a built-in 3 mm two-way rod-type

module set VSA

locking mechanism.

- 89MS01/R1400 equipped with communication controller

The cabinet is equipped with 4 sub-racks (BGT) A to K for

module set VSB

user modules with processing, binary control and input/output functions, and for the modules of the communication control-

The distributing station can be fitted for a maximum of three

ler, the 88TK05 station-bus coupling modules, a 89NG08

remote-bus lines.

supply module for power distribution, a built-in section with

Except for sub-rack A for the communication controller mod- two 88FK05 (A3, A4) remote-bus junction modules for con- ule set, both versions are of identical design. necting the redundant remote bus, and a sub-rack (”Z”) for

the 88FT05 remote-bus coupling modules.

For the installation of a redundant bus system, a 89MS01/R1300 as well as a 89MS01/R1400 station-bus

Sub-rack A in the 89MS01/R1300 cabinet is equipped with

cabinet is necessary.

communication controller module set VSA, and sub-rack A in the 89MS01/R1400 cabinet is equipped with communication controller module set VSB. The specified equipment is shown in Figure 2 (plug-in electronic modules are not part of the standard cabinet supply).

The station-bus cabinet is intended to be installed in dry, clean and vibration-free areas of normal industrial design.

On the right side of the roof facing strips (front and rear), 4 borings are provided for attaching the cabinet designation plates. The plates are attached by means of 2.5 x 6 mm grooved drive studs.
