Dell Vostro A840 Service Manual

Summary

Service manual for Dell Vostro A840 and A860 laptop computers (Models PP38L and PP37L). Provides detailed removal and replacement procedures for all major components including module cover, memory modules, mini-cards, center control cover, keyboard, display assembly, palm rest, system fan, processor heat sink, processor, hard drive, coin-cell battery, optical drive, speakers, system board, and battery latch assembly. Includes BIOS flashing instructions and ESD safety precautions. Targets authorized service technicians performing hardware repairs.

📄 Preview PAGE OF 36

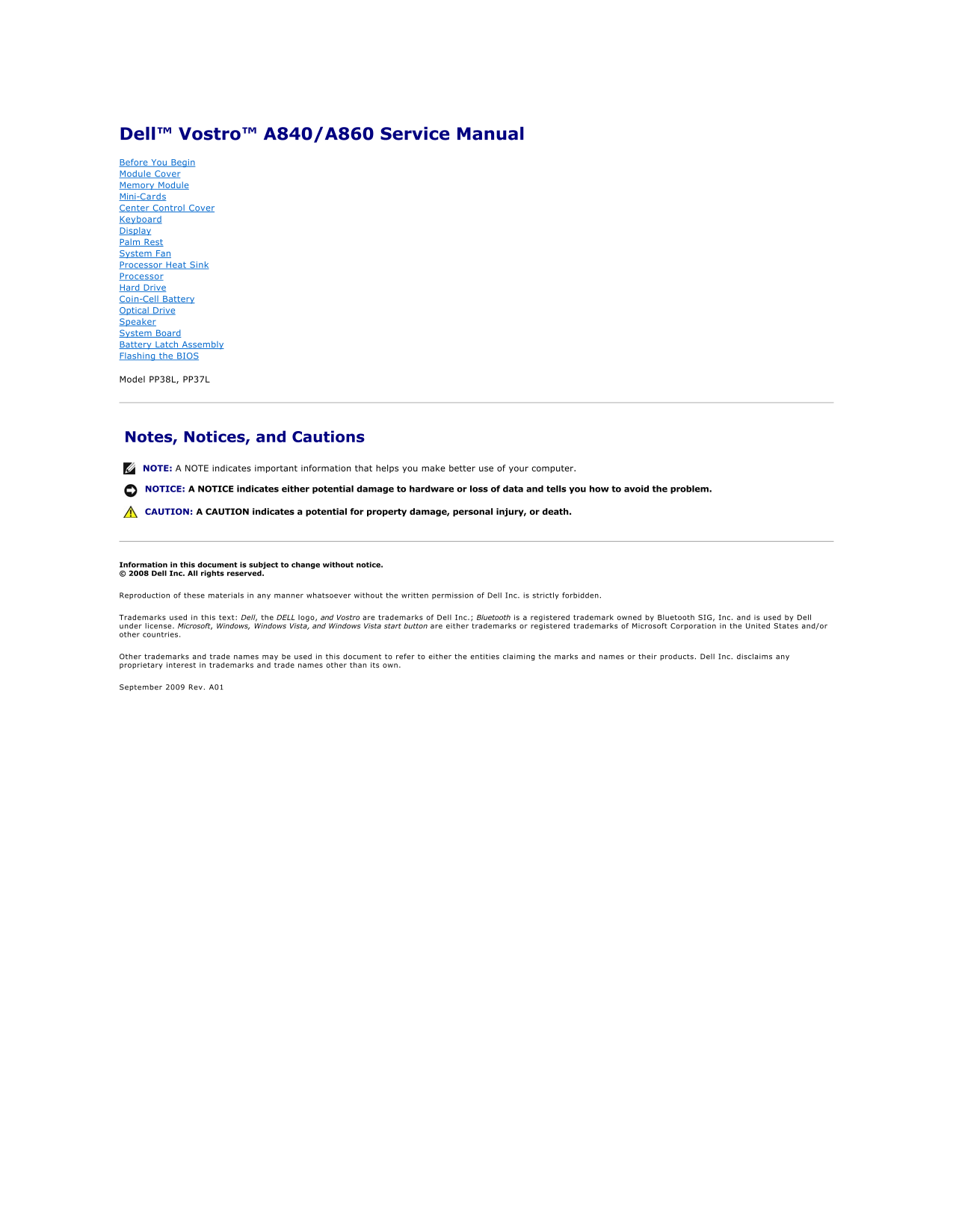

Page 1 Text Content

Dell™ Vostro™ A840/A860 Service Manual  Before You Begin Module Cover Memory Module Mini-Cards Center Control Cover Keyboard Display Palm Rest System Fan Processor Heat Sink Processor Hard Drive Coin-Cell Battery Optical Drive Speaker System Board Battery Latch Assembly Flashing the BIOS Model PP38L, PP37L

 Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice. © 2008 Dell Inc. All rights reserved. Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, and Vostro are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license. Microsoft, Windows, Windows Vista, and Windows Vista start button are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own. September 2009 Rev. A01

Page Summary Contents For Dell Vostro A840 Service Manual

Page 1 Dell™ Vostro™ A840/A860 Service Manual  Before You Begin Module Cover Memory Module Mini-Cards Center Control Cover Keyboard Display Palm Rest System Fan Processor Heat Sink Processor Hard Drive Coin-...
Page 2 Back to Contents Page   Module Cover Dell™ Vostro™ A840/A860 Service Manual    Removing the Module Cover   Replacing the Module Cover CAUTION: Before working inside your computer, read the safety info...
Page 3 Back to Contents Page   Battery Latch Assembly Dell™ Vostro™ A840/A860 Service Manual    Removing the Battery Latch Assembly   Replacing the Battery Latch Assembly CAUTION: Before working inside your ...
Page 4 Back to Contents Page
Page 5 Back to Contents Page   Before You Begin Dell™ Vostro™ A840/A860 Service Manual    Recommended Tools   Turning Off Your Computer   Before Working Inside Your Computer This section provides procedures ...
Page 6 NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device. 3. Disconnect all telephone or network cables from the computer. 4. ...
Page 7 Back to Contents Page   Flashing the BIOS Dell™ Vostro™ A840/A860 Service Manual    Flashing the BIOS From a CD   Flashing the BIOS From the Hard Drive If a BIOS-update program CD is provided with the...
Page 8 Back to Contents Page   Internal Card With Bluetooth®Wireless Technology Dell™ Vostro™ A840/A860 Service Manual    Removing the Bluetooth® Card   Replacing the Bluetooth® Card CAUTION: Before working ...
Page 9 Back to Contents Page   Coin-Cell Battery Dell™ Vostro™ A840/A860 Service Manual    Removing the Coin-Cell Battery   Replacing the Coin-Cell Battery CAUTION: Before working inside your computer, read ...
Page 10 Back to Contents Page   Processor Dell™ Vostro™ A840/A860 Service Manual    Removing the Processor   Replacing the Processor CAUTION: Before working inside your computer, read the safety information t...
Page 11 NOTICE: Ensure that the cam lock is in the fully open position before seating the processor. Seating the processor properly in the ZIF socket does not require force. NOTICE: A processor that is not pr...
Page 12 Back to Contents Page   Processor Heat Sink Dell™ Vostro™ A840/A860 Service Manual    Removing the Processor Heat Sink   Replacing the Processor Heat Sink CAUTION: Before working inside your computer,...
Page 13 Back to Contents Page   Display Dell™ Vostro™ A840/A860 Service Manual    Display Assembly   Display Bezel   Display Panel   Display Panel Cable   Display Inverter CAUTION: Before working inside your ...
Page 14 1 display cable 2 antenna cables 9. Remove the two screws from either side of the display hinges. 10. Lift and remove the display assembly. 1 display hinge screw (4) 2 antenna cables 3 display cable  ...
Page 15  Display Bezel Removing the Display Bezel NOTICE: The display bezel is extremely fragile. Be careful when removing it to prevent damaging the bezel. 1. Remove the display assembly (see Display). 2. Re...
Page 16 Removing the Display Panel 1. Remove the display assembly (see Display). 2. Remove the display bezel (see Removing the Display Bezel). 3. Remove the six screws securing the display panel assembly to t...
Page 17 2. Replace the eight screws that secure the display panel brackets to each side of the display panel. 3. Align the display panel with the display cover and replace the six screws. 4. Connect the displ...
Page 18 Removing the Display Inverter 1. Remove the display assembly (see Display). 2. Remove the display bezel (see Removing the Display Bezel). 3. Disconnect the cables from the connectors on either side of...
Page 19 Back to Contents Page   System Fan Dell™ Vostro™ A840/A860 Service Manual    Removing the System Fan   Replacing the System Fan CAUTION: Before working inside your computer, read the safety informatio...
Page 20 Back to Contents Page   Hard Drive Dell™ Vostro™ A840/A860 Service Manual    Removing the Hard Drive   Replacing the Hard Drive CAUTION: Before working inside your computer, read the safety informatio...
Page 21 1 hard drive cage 2 hard drive NOTICE: When the hard drive is not in the computer, store it in a protective antistatic package (see "Protecting Against Electrostatic Discharge" in the safety...
Page 22 Back to Contents Page   Center Control Cover Dell™ Vostro™ A840/A860 Service Manual    Removing the Center Control Cover   Replacing the Center Control Cover CAUTION: Before working inside your comput...
Page 23  Replacing the Center Control Cover 1. Snap the center control cover in place. 2. Turn the computer over and replace the screws that secure the hinge cover to the battery bay. For the Vostro™ A840, th...
Page 24 Back to Contents Page   Keyboard Dell™ Vostro™ A840/A860 Service Manual    Removing the Keyboard   Replacing the Keyboard CAUTION: Before working inside your computer, read the safety information that...
Page 25 2. Align the five tabs along the bottom of the keyboard and slide them under the palm rest. 3. Replace the two screws at the top of the keyboard. 4. Replace the center control cover (see Center Contro...
Page 26 Back to Contents Page   Memory Module Dell™ Vostro™ A840/A860 Service Manual    Removing the Memory Module(s)   Replacing the Memory Module(s) CAUTION: Before working inside your computer, read the sa...
Page 27 NOTE: If the memory module is not installed properly, the computer may not boot. 1 tab 2 notch 3. Replace the module cover (see Replacing the Module Cover). 4. Insert the battery into the battery bay,...
Page 28 Back to Contents Page   Mini-Cards Dell™ Vostro™ A840/A860 Service Manual    Removing the WLAN Card   Replacing the WLAN Card CAUTION: Before working inside your computer, read the safety information ...
Page 29  Replacing the WLAN Card NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors on the card and on the system board, and realign the card. NOTICE: T...
Page 30 Back to Contents Page   Optical Drive Dell™ Vostro™ A840/A860 Service Manual    Removing the Optical Drive   Replacing the Optical Drive CAUTION: Before working inside your computer, read the safety i...
Page 31 Back to Contents Page   Palm Rest Dell™ Vostro™ A840/A860 Service Manual    Removing the Palm Rest   Replacing the Palm Rest  Removing the Palm Rest CAUTION: Before working inside your computer, read ...
Page 32 1 palmrest screw (2) 2 power/keyboard status light cable 3 touch pad cable 4 display hinge cable  Replacing the Palm Rest 1. Align the palm rest with the computer base and gently snap it into place. 2...
Page 33 Back to Contents Page   Speaker Dell™ Vostro™ A840/A860 Service Manual    Removing the Speaker   Replacing the Speaker CAUTION: Before working inside your computer, read the safety information that sh...
Page 34 Back to Contents Page   System Board Dell™ Vostro™ A840/A860 Service Manual    Removing the System Board   Replacing the System Board  Removing the System Board CAUTION: Before working inside your com...
Page 35 1 system board screw (2) 2 DC-In connector 3 speaker connector 4 RJ-11 connector 14. Lift the system board at an angle towards the side of the computer and out of the computer base.  Replacing the Sys...
Page 36 Back to Contents Page Dell™ Vostro™ A840/A860 Service Manual  NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potential ...
