Dell Vostro 3490 Service Manual
Summary
The Dell Vostro 3490 Service Manual with regulatory model P89G provides component-level repair instructions for this 14-inch business laptop. It covers electrostatic discharge (ESD) protection, ESD field service kit requirements, and safe transport of sensitive components. Step-by-step removal and installation instructions detail all internal components with recommended tools. Technicians servicing the Vostro 3490 can follow the prerequisite-based disassembly workflow for efficient component rep
Page 1 Text Content

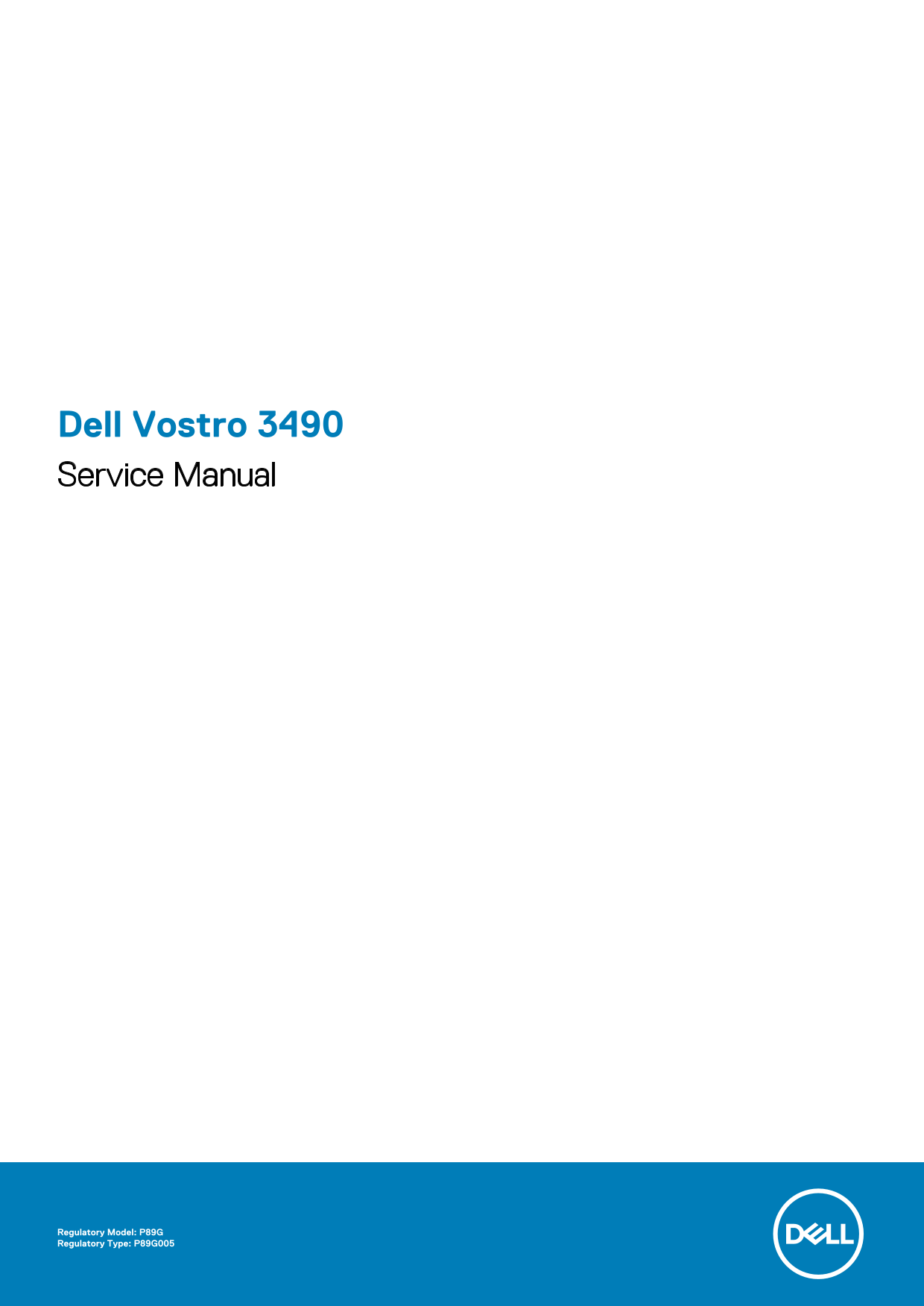

Dell Vostro 3490 Service Manual
Regulatory Model: P89G Regulatory Type: P89G005
Page Summary Contents For Dell Vostro 3490 Service Manual
Page 1
Dell Vostro 3490 Service Manual Regulatory Model: P89G Regulatory Type: P89G005
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents 1 Working on your computer............................................................................................................ Safety instructions........................................
Page 4
Removing the heatsink - discrete................................................................................................................................34 Installing the heatsink - discrete......
Page 5
3 System setup.............................................................................................................................83 Boot menu....................................................
Page 6
Working on your computer Safety instructions Prerequisites Use the following safety guidelines to protect your computer from potential damage and to ensure your personal safety. Unless otherwise noted...
Page 7
6. Press and hold the power button while the computer is unplugged to ground the system board. NOTE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodical...
Page 8
Working Environment – Before deploying the ESD Field Service kit, assess the situation at the customer location. For example, deploying the kit for a server environment is different than for a desktop...
Page 9
Removing and installing components Recommended tools The procedures in this document require the following tools: Phillips #0 screwdriver Phillips #1 screwdriver Plastic scribe NOTE: The #0 screw driv...
Page 10
Component Screw type Quantity Screw image Optical-drive connector board M2x2 Big Head Power-adapter port M2x2 Power-button board M2x3 Power button with fingerprint M2x2 reader (optional) Solid-state d...
Page 11
Installing the Secure Digital card Steps 1. Slide the secure digital into the slot until it clicks into place. 2. Follow the procedures in After working inside your computer. Removing and installing c...
Page 12
Base cover Removing the base cover Prerequisites 1. Follow the procedure in before working inside your computer 2. Remove the SD memory card Steps 1. Loosen the three captive screws [1]. 2. Remove the...
Page 13
3. Pry the base cover from the top-right corner [1] and continue to open the right side of the base cover [2]. 4. Lift the left side of the base cover and remove it off the system [3]. Removing and in...
Page 14
Installing the base cover Steps 1. Place the base cover on the palmrest and keyboard assembly [1]. 2. Press the right side of the base cover until it snaps into place [2, 3]. 3. Tighten the three capt...
Page 15
Next steps 1. Replace the SD memory card 2. Follow the procedure in after working inside your computer Battery Lithium-ion battery precautions CAUTION: Exercise caution when handling Lithium-ion batte...
Page 16
Removing the battery Prerequisites 1. Follow the procedure in before working inside your computer 2. Remove the SD memory card 3. Remove the base cover Steps 1. Disconnect the battery cable from the s...
Page 17
Next steps 1. Replace the base cover 2. Replace the SD memory card 3. Follow the procedure in after working inside your computer Memory modules Removing the memory module Prerequisites 1. Follow the p...
Page 18
Installing the memory module Steps 1. Align the notch on the memory module with the tab on the memory-module slot. 2. Slide the memory module firmly into the slot at an angle [1]. 3. Press the memory ...
Page 19
Next steps 1. Connect the battery cable to the connector on the system board. 2. Replace the base cover 3. Replace the SD memory card 4. Follow the procedure in after working inside your computer WLAN...
Page 20
Installing the WLAN card About this task CAUTION: To avoid damage to the WLAN card, do not place any cables under it. Steps 1. Insert the WLAN card into the connector on the system board [1]. 2. Conne...
Page 21
Next steps 1. Connect the battery cable to the connector on the system board. 2. Replace the base cover 3. Replace the SD memory card 4. Follow the procedure in after working inside your computer Soli...
Page 22
4. Turn the thermal plate over. 5. Remove the single (M2x2) screw that secures the solid-state drive to the thermal plate [1]. 6. Lift the solid-state drive off the thermal plate [2]. Installing the M...
Page 23
3. Align the notch on the solid-state drive with the tab on the solid-state drive slot. 4. Slide and insert the tab of the solid-state drive into the solid-state drive slot [1, 2]. 5. Tighten the capt...
Page 24
Removing the M.2 2280 Solid-state drive or Intel Optane memory - Optional Prerequisites 1. Follow the procedure in before working inside your computer 2. Remove the SD memory card 3. Remove the base c...
Page 25
Next steps 1. Connect the battery cable to the connector on the system board. 2. Replace the base cover 3. Replace the SD memory card 4. Follow the procedure in after working inside your computer Coin...
Page 26
Next steps 1. Connect the battery cable to the connector on the system board. 2. Replace the base cover 3. Replace the SD memory card 4. Follow the procedure in after working inside your computer Hard...
Page 27
4. Disconnect the interposer from the hard drive. 5. Remove the four (M3x3) screws that secure the hard drive bracket to the hard drive [1]. 6. Lift the hard drive bracket off the hard drive [2]. Remo...
Page 28
Installing the hard drive assembly Steps 1. Align the screw holes on the hard drive bracket with the screw holes on the hard drive [1]. 2. Replace the four (M3x3) screws that secure the hard drive bra...
Page 29
4. Align the screw holes on the hard drive assembly with the screw holes on the palm rest and keyboard assembly [1]. 5. Replace the four (M2x3) screws that secure the hard drive assembly to the palm r...
Page 30
System fan Removing the system fan Prerequisites 1. Follow the procedure in before working inside your computer 2. Remove the SD memory card 3. Remove the base cover 4. Disconnect the battery cable fr...
Page 31
Installing the system fan Steps 1. Align the screw holes on the fan with the screw holes on the palm rest and keyboard board assembly [1]. 2. Replace the two (M2x5) screws that secure the fan to the p...
Page 32
3. Route the display cable through the routing guides on the fan [1]. 4. Connect the display cable and fan cable to the system board [2, 3]. Next steps 1. Replace the hard drive assembly 2. Replace th...
Page 33
3. Replace the base cover 4. Replace the SD memory card 5. Follow the procedure in after working inside your computer Heat sink Removing the heatsink - UMA Prerequisites 1. Follow the procedure in bef...
Page 34
2. In sequential order (as indicated on the heatsink), tighten the four captive screws that secure the heatsink to the system board [2]. Next steps 1. Connect the battery cable to the connector on the...
Page 35
Installing the heatsink - discrete Steps 1. Place the heatsink on the system board and align the screw holes on the heatsink with the screw holes on the system board [1]. 2. Replace the three (M2x3) s...
Page 36
Next steps 1. Connect the battery cable to the connector on the system board. 2. Replace the base cover 3. Replace the SD memory card 4. Follow the procedure in after working inside your computer VGA ...
Page 37
Installing the VGA daughterboard Steps 1. Place the VGA daughterboard and align the screw holes on the VGA daughterboard with the screw holes on the palm rest and keyboard assembly [1]. 2. Replace the...
Page 38
Next steps 1. Connect the battery cable to the connector on the system board. 2. Replace the base cover 3. Replace the SD memory card 4. Follow the procedure in after working inside your computer Spea...
Page 39
3. Lift the speakers, along with the cable, off the palm rest and keyboard assembly [3]. Removing and installing components
Page 40
Installing the speakers About this task NOTE: If the rubber grommets are pushed out when removing the speakers, push them back in before replacing the speakers. Steps 1. Using the alignment posts and ...
