®Latitude® XPi CD Dell Service Manual Update
This document updates information contained in the Dell Latitude XPi CD Service Manual and in the Dell Latitude XPi CD Parts Removal and Replace- ment Guide.
New System Features Additional system features include: Now available with a 166-MHz Intel® Pentium® microprocessor with MMX™ technology in the Dell Latitude XPi CD M166ST, which otherwise has the same features as other models of the computer. Support for up to 80 MB of system memory on the Latitude XPi CD M166ST, by installing a combination of 8-, 16-, and 32-MB memory mod- ules in the two sockets on the system board. (The standard minimum configuration is 16 MB of nonremovable EDO memory on the system board.) The Pentium microprocessor with MMX technology has twice the internal cache memory (32 KB) as the standard Pentium microprocessor. A Texas Instruments PCI 1131 Card Bus controller. A Neo Magic 2093 video controller for a video subsystem that includes 1.1 MB of video memory. An ESS 1887 audio controller. 10X CD-ROM drive. NOTE: Your computer may not appear exactly as shown in some of the figures in the Service Manual. EMI shields may have been changed or added.
Dell Latitude XPi CD Service Manual Update
Page Summary Contents For Dell service manual update

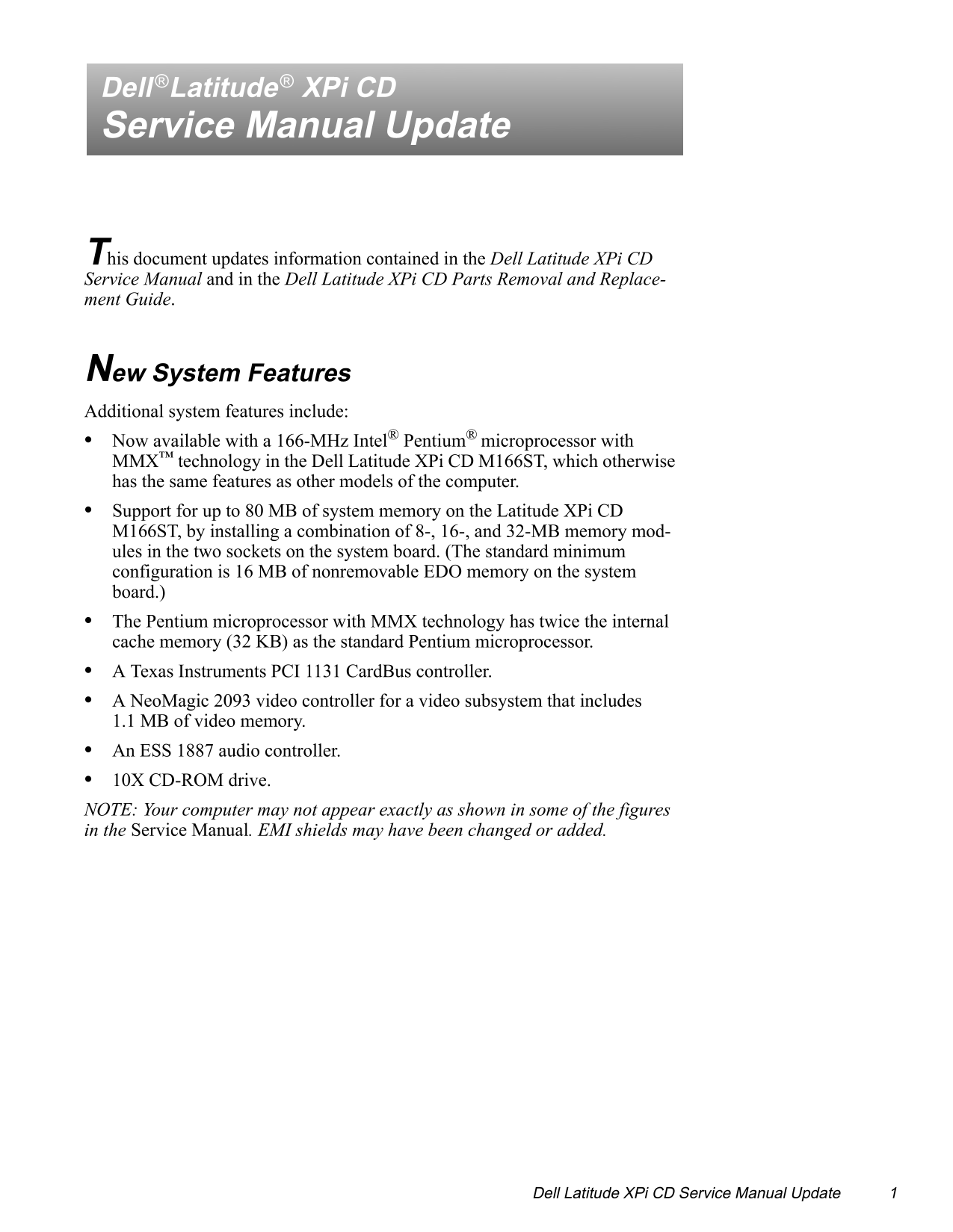

Page 1
®Latitude® XPi CD Dell Service Manual Update This document updates information contained in the Dell Latitude XPi CD Service Manual and in the Dell Latitude XPi CD Parts Removal and Replace- ment Guid...
Page 2
Technical Specifications The following information updates Table 1-2, “Technical Specifications,” in Chapter 1 of the Service Manual. Technical Specifications Microprocessor Microprocessor: Latitude X...
Page 3
Technical Specifications (continued) PC Card PC Card controller:1 Latitude XPi CD M166ST . . . . . . . . . . . . . . Texas Instruments PCI 1131 Card Bus controller Latitude XPi CD P150ST . . . . . . ....
Page 4
Technical Specifications (continued) Audio Audio controller:2 Latitude XPi CD M166ST . . . . . . . . . . . . . . ESS 1887; ESS 690 wavetable music synthesizer; ESS 938 3D audio spatializer (on systems...
Page 5
Technical Specifications (continued) CD-ROM Drive Data transfer rate (minimum):4 Sustained . . . . . . . . . . . . . . 900 KB/sec (6X); 1500 KB/sec (10X) Burst . . . . . . . . . . . . . . . . . 14.4 M...
Page 6
Technical Specifications (continued) Ethernet Network Controller (Advanced Port Replicator) Chip set. . . . . . . . . . . . . . . . . . 3Com® 3C913B; 10Base-T Ethernet Data bus width . . . . . . . . ....
Page 7
LCD Inverter Board The inverter board assembly with order name SVC,LCD/INVTR,IBM,LXPi CD (see the “Factory Repair Parts and Assemblies” table found later in this document) is different from the invert...
Page 8
the Service Manual. However, some of the components and subassemblies used are different. The following information updates Table A-1, “Factory Repair Parts and Assemblies,” in Appendix A. Factory Rep...
Page 9
Factory Repair Parts and Assemblies (continued) Part or Assembly Name Order Name Figure LCD Assemblies (continued) LCD inverter board service SVC,LCD/INVTR,IBM kit LXPi CD LCD panel LCD,TFT,SVGA,12.1”...
Page 10
Factory Repair Parts and Assemblies (continued) Part or Assembly Name Order Name Figure Miscellaneous Parts Left tilt-support foot service SVC,FOOT,BACK,LF, 4-5 kit LXPi CD Right tilt-support foot SVC...
Page 11
Factory Repair Parts and Assemblies (continued) Part or Assembly Name Order Name Figure System Board Assemblies System board assembly, SVC,PLN,LXPi CD 4-27 LXPi CD, 166-MHz, M166ST,WB,0M service kit S...
Page 12
Factory Repair Parts and Assemblies (continued) Part or Assembly Name Order Name Figure System Board Assemblies (continued) BIOS chip IC,PROG,FLASH,28FO20,PRG Spreader ASSY,PAN SPRDR,CISPR, assembly L...
