Dell Latitude D430 Service Manual
Summary
The Dell Latitude D430 Service Manual (Model PP09S) is a repair guide for the Latitude D430 laptop. It covers component replacement including hard drive, system board, keyboard, memory, display, battery, palm rest, fan, modem, and wireless card. It includes pin assignments, BIOS flashing, and safety precautions. Target users are certified technicians performing hardware repairs and upgrades.
Page 1 Text Content

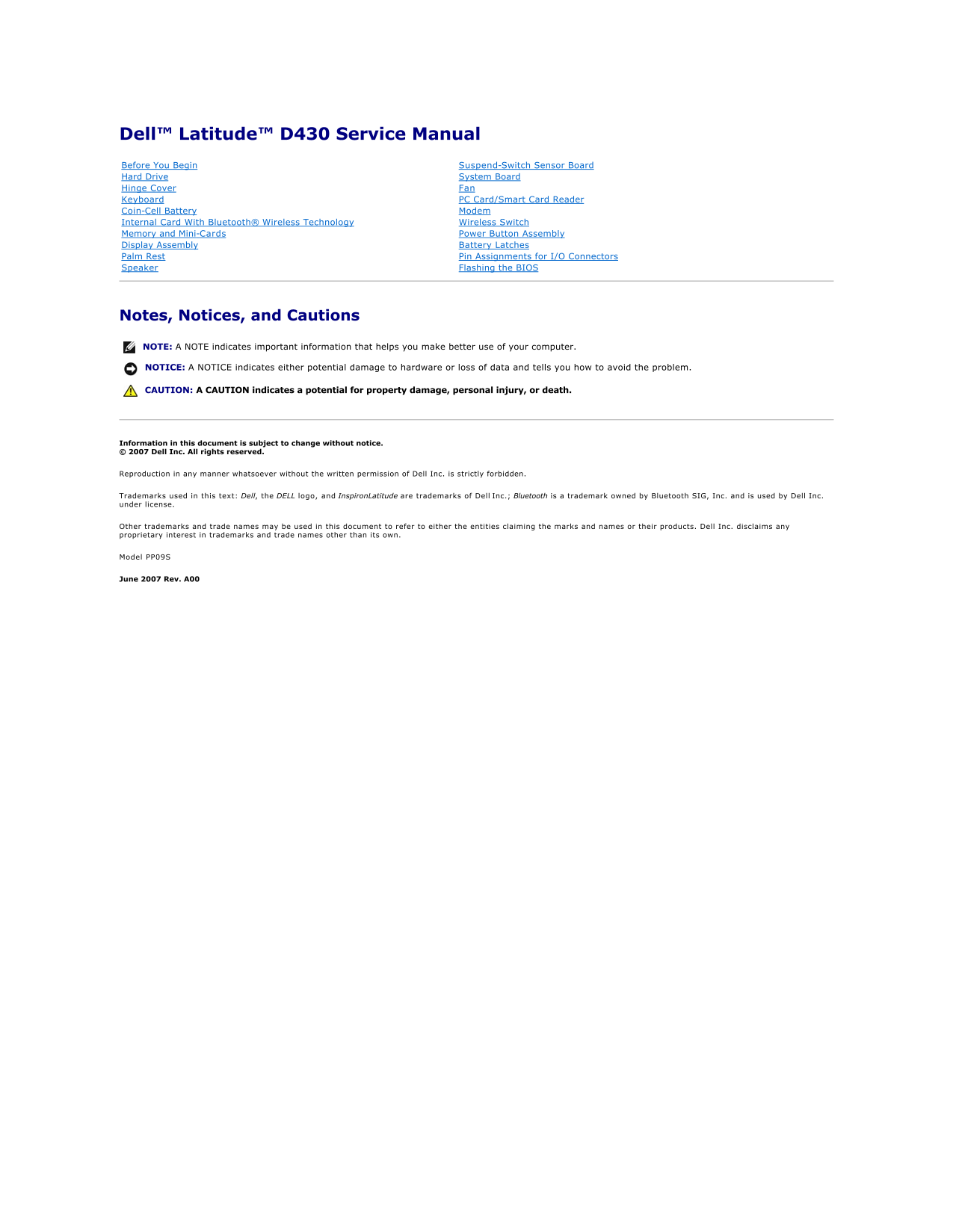

Dell™ Latitude™ D430 Service Manual Before You Begin Suspend-Switch Sensor Board Hard Drive System Board Hinge Cover Fan Keyboard PC Card/Smart Card Reader Coin-Cell Battery Modem Internal Card With Bluetooth® Wireless Technology Wireless Switch Memory and Mini-Cards Power Button Assembly Display Assembly Battery Latches Palm Rest Pin Assignments for I/O Connectors Speaker Flashing the BIOS
Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice. © 2007 Dell Inc. All rights reserved. Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, and Inspiron Latitude are trademarks of Dell Inc.; Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by Dell Inc. under license. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own. Model PP09S June 2007 Rev. A00
Page Summary Contents For Dell Latitude D430 Service Manual
Page 1
Dell™ Latitude™ D430 Service Manual Before You Begin Suspend-Switch Sensor Board Hard Drive System Board Hinge Cover Fan Keyboard PC Card/Smart Card Reader Coin-Cell Battery Modem Internal Card With B...
Page 2
Back to Contents Page Battery Latches Dell™ Latitude™ D430 CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. CAUTION:...
Page 3
1 screw driver 2 bracket 3 securing tab 4 shorter battery-latch assembly 5 computer base Back to Contents Page
Page 4
Back to Contents Page Before You Begin Dell™ Latitude™ D430 Recommended Tools Turning Off Your Computer Before Working Inside Your Computer This chapter provides procedures for removing and i...
Page 5
3. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions. NOTICE: To disconnect a network cable, first unplug ...
Page 6
Back to Contents Page Internal Card With Bluetooth® Wireless Technology Dell™ Latitude™ D430 CAUTION: Before performing the following procedures, read the safety instructions in your Product Inform...
Page 7
Back to Contents Page PC Card/Smart Card Reader Dell™ Latitude™ D430 CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide...
Page 8
Back to Contents Page Coin-Cell Battery Dell™ Latitude™ D430 CAUTION: Before performing the following procedures, follow the safety instructions in your Product Information Guide. NOTICE: To avoid ...
Page 9
Back to Contents Page Memory and Mini-Cards Dell™ Latitude™ D430 Memory Mini-Cards Memory You can increase your computer memory by installing memory modules on the system board. See "Spec...
Page 10
1 memory module 2 securing clips (2) NOTICE: Insert memory modules at a 45-degree angle to prevent damage to connectors. NOTE: If the memory module is not installed properly, the computer may not boot...
Page 11
1 antenna cables (2) a. Disconnect the antenna cables from the WLAN card. NOTICE: To prevent damage to the connector, do not use tools to spread the securing clips. b. Release the card by pushing th...
Page 12
Mobile Broadband (WWAN) Cards NOTE: Mobile Broadband cards may not be available in all regions. If you ordered a Mobile Broadband card with your computer, the card is already installed. CAUTION: Befor...
Page 13
NOTE: Cable routing for the Mobile Broadband card may vary. b. Align the card with the connector at a 45-degree angle, and press the card into the connector until you feel a click. 1 Mobile Broadband...
Page 14
1 metal tabs (2) on SIM card slot 2 SIM card with cut-off corner NOTE: When you replace the SIM card, ensure that you slide the SIM card under the two metal tabs on the SIM card slot with the cut-off ...
Page 15
Back to Contents Page Display Assembly Dell™ Latitude™ D430 Removing the Display Assembly Removing the Display Bezel Removing the Display Panel Removing the Display-Panel Brackets Removin...
Page 16
7. Lift the display assembly away from the computer. 1 Mini-Card antenna cables 2 display cable 3 display assembly NOTE: When you replace the display assembly, route the Mini-Card antenna cables throu...
Page 17
1 M2 x 2 display 3 top 3-mm panel cover screws (2) Removing the Display-Panel Brackets 1. Remove the four M2 x 3-mm screws (two on each bracket) from the display-panel brackets. 1 display-panel brack...
Page 18
Removing the Display Latch 1 M2 x 3-mm screws (2) 2 screw holders (2) 3 display latch 4 metal plate 5 display base Back to Contents Page
Page 19
Back to Contents Page Fan Dell™ Latitude™ D430 CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. CAUTION: To prevent ...
Page 20
Back to Contents Page Flashing the BIOS Dell™ Latitude™ D430 1. Ensure that the AC adapter is plugged in and that the main battery is installed properly. NOTE: If you use a BIOS update program CD t...
Page 21
Back to Contents Page Hard Drive Dell™ Latitude™ D430 Removing the Hard Drive Dismantling the Hard Drive Replacing the Hard Drive CAUTION: If you remove the hard drive from the computer when ...
Page 22
1 pull-tab 2 hard drive cable 3 hard drive 4 system board connector Dismantling the Hard Drive NOTICE: The replacement hard drive ships with the protective cover and the hard drive cable. Onl...
Page 23
Replacing the Hard Drive NOTICE: Use firm and even pressure to slide the drive into place. If you use excessive force, you may damage the connector. 1. Follow the steps in Removing the Hard Drive in ...
Page 24
Back to Contents Page Hinge Cover Dell™ Latitude™ D430 CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. NOTICE: To a...
Page 25
Back to Contents Page Keyboard Dell™ Latitude™ D430 CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. NOTICE: To avoi...
Page 26
Back to Contents Page Modem Dell™ Latitude™ D430 CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. CAUTION: To preven...
Page 27
Back to Contents Page Palm Rest Dell™ Latitude™ D430 Removing the Palm Rest Replacing the Palm Rest Removing the Palm Rest CAUTION: Before you begin any of the procedures in this section, foll...
Page 28
1 M2.5 x 5-mm screws (6) NOTICE: Pull on the plastic tab on top of the connectors to avoid damaging the connectors. 11. Disconnect the speaker connector from the system board. 12. Disconnect the Secur...
Page 29
Replacing the Palm Rest 1. Align the palm rest with the computer base and gently snap into place. 2. Connect the LED board connector to the system board. 3. Connect the touch pad connector to the sys...
Page 30
Back to Contents Page Pin Assignments for I/O Connectors Dell™ Latitude™ D430 USB Connector Video Connector USB Connector Pin Signal 1 USB5V+ 2 USBP– 3 USBP+ 4 GND Video Connector Pin Signal ...
Page 31
Back to Contents Page Power Button Assembly Dell™ Latitude™ D430 CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. CA...
Page 32
Back to Contents Page Suspend-Switch Sensor Board Dell™ Latitude™ D430 CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Gui...
Page 33
Back to Contents Page Wireless Switch Dell™ Latitude™ D430 CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. CAUTION:...
Page 34
Back to Contents Page Speaker Dell™ Latitude™ D430 CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. NOTICE: To avoid...
Page 35
Back to Contents Page System Board Dell™ Latitude™ D430 Removing the System Board Replacing the System Board Removing the System Board CAUTION: Before you begin any of the procedures in this s...
Page 36
Replacing the System Board 1. Follow all of the steps in Removing the System Board in reverse order. NOTICE: Before turning on the computer, replace all screws and ensure that no stray screws remain ...
Page 37
