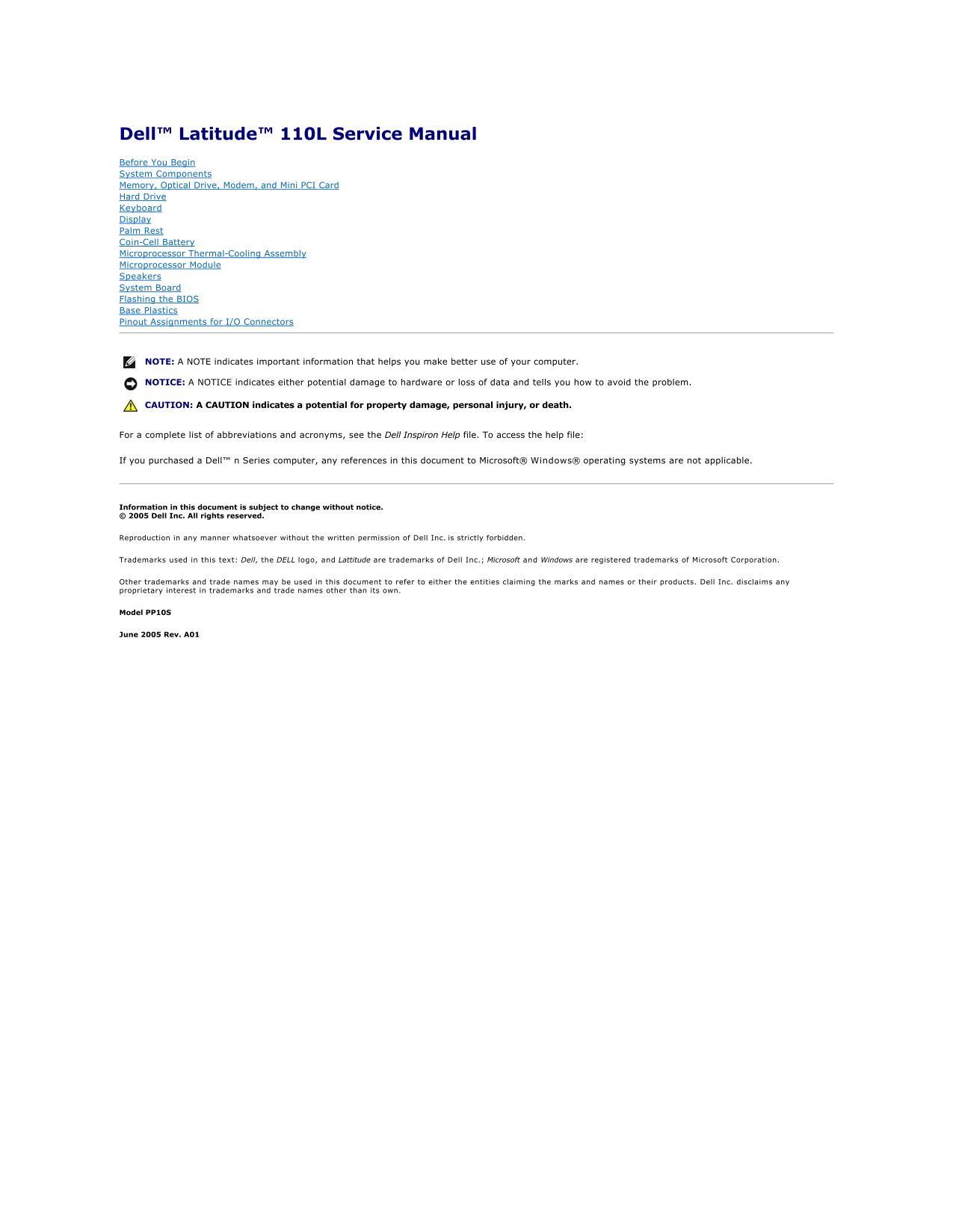

Dell™ Latitude™ 110L Service Manual Before You Begin System Components Memory, Optical Drive, Modem, and Mini PCI Card Hard Drive Keyboard Display Palm Rest Coin-Cell Battery Microprocessor Thermal-Cooling Assembly Microprocessor Module Speakers System Board Flashing the BIOS Base Plastics Pinout Assignments for I/O Connectors
NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death. For a complete list of abbreviations and acronyms, see the Dell Inspiron Help file. To access the help file: If you purchased a Dell™ n Series computer, any references in this document to Microsoft® Windows® operating systems are not applicable.
Information in this document is subject to change without notice. © 2005 Dell Inc. All rights reserved. Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, and Lattitude are trademarks of Dell Inc.; Microsoft and Windows are registered trademarks of Microsoft Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own. Model PP10S June 2005 Rev. A01
Page Summary Contents For Dell Latitude 110L Service Manual
Page 1
Dell™ Latitude™ 110L Service Manual Before You Begin System Components Memory, Optical Drive, Modem, and Mini PCI Card Hard Drive Keyboard Display Palm Rest Coin-Cell Battery Microprocessor Thermal-Co...
Page 2
Back to Contents Page Base Plastics Dell™ Latitude™ 110L Service Manual CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide. CAUTION: To ...
Page 3
Back to Contents Page Before You Begin Dell™ Latitude™ 110L Service Manual Recommended Tools Turning Off Your Computer Before Working Inside Your Computer Computer Orientation Screw Identifi...
Page 4
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not covered by your warranty. NOTICE: When you disconnect...
Page 5
1 front 2 left 3 back 4 right Screw Identification When you are removing and replacing components, print this section as a tool to lay out and keep track of the screws. The placemat provides the n...
Page 6
Screw Covers (6 each) Display Bumpers (6 each) Palm Rest to Palm Rest to System Board to Base Plastics: Base Plastics in Hard Drive Base Plastics: (8 each) (4 each, hard drive cage) (2 each) (2...
Page 7
Back to Contents Page Flashing the BIOS Dell™ Latitude™ 110L Service Manual Flashing the BIOS From a Floppy Disk or a CD Flashing the BIOS From the Hard Drive If a BIOS-update program floppy disk ...
Page 8
Back to Contents Page
Page 9
Back to Contents Page Coin-Cell Battery Dell™ Latitude™ 110L Service Manual CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide. CAUTION:...
Page 10
Back to Contents Page Microprocessor Module Dell™ Latitude™ 110L Service Manual Removing the Microprocessor Module Installing the Microprocessor Module Removing the Microprocessor Module CAUTION: ...
Page 11
Installing the Microprocessor Module NOTICE: Ensure that the cam lock is in the fully open position before seating the microprocessor module. Seating the microprocessor module properly in the ZIF sock...
Page 12
Back to Contents Page Display Dell™ Latitude™ 110L Service Manual Display Assembly Display Bezel Display Panel Display Assembly CAUTION: Before performing the following procedures, read the safe...
Page 13
1 M2.5 x 5-mm screws (4) 2 shield retention tabs (3) 3 shield-retention tab slots 6. Disconnect the attached antenna cable from the Mini PCI card. 1 antenna cable 2 metal securing tabs (2) 3 Mi...
Page 14
9. From the back of the computer, remove the two M2.5 x 8-mm screws labeled "D." 10. Pull straight up on the pull-tab that is attached to the display-feed flex cable to disconnect the cabl...
Page 15
1 screw covers/display bumpers (6) 2 display bezel 3 M2.5 x 5-mm screws (6) 4 display panel 5 M2 x 3-mm screws (8) 6 top cover 7 display-feed flex cable Display Bezel CAUTION: Before performing...
Page 16
CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide. CAUTION: To prevent static damage to components inside your computer, discharge stat...
Page 17
Back to Contents Page Hard Drive Dell™ Latitude™ 110L Service Manual Removing the Hard Drive Installing the Hard Drive Removing the Hard Drive CAUTION: If you remove the hard drive from the comput...
Page 18
NOTE: You need the Drivers and Utilities CD to install the drivers and utilities on the new hard drive. The Drivers and Utilities CD is optional and may not ship with your computer. See your Owner's M...
Page 19
Back to Contents Page Keyboard Dell™ Latitude™ 110L Service Manual Removing the Keyboard Installing the Keyboard Removing the Keyboard CAUTION: Before working inside your Dell™ computer, read the ...
Page 20
NOTICE: The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the keyboard. 6. Lift the top of the keyboard out of the comput...
Page 21
Back to Contents Page Palm Rest Dell™ Latitude™ 110L Service Manual CAUTION: Before performing the following procedures, read the safety instructions in the Product Information Guide. CAUTION: To prev...
Page 22
10. Disconnect the touch pad connector from the system board. 1 connector lever 2 palm rest connector NOTICE: Carefully separate the palm rest from the base plastics to avoid damage to the palm res...
Page 23
Back to Contents Page Pinout Assignments for I/O Connectors Dell™ Latitude™ 110L Service Manual USB Connector Video Connector USB Connector Pin Signal 1 USB5V+ 2 USBP– 3 USBP+ 4 GND Video Conn...
Page 24
Back to Contents Page Speakers Dell™ Latitude™ 110L Service Manual Removing the Speakers Installing the Speakers Removing the Speakers CAUTION: Before performing the following procedures, read the...
Page 25
Installing the Speakers 1. Slide the speakers down into the base plastics. NOTICE: Ensure that the speaker cables are under or between their routing clips. NOTE: The speakers face out in the base pla...
Page 26
Back to Contents Page System Board Dell™ Latitude™ 110L Service Manual Removing the System Board Installing the System Board Removing the System Board CAUTION: Before performing the following proc...
Page 27
1 hex screws (2) 15. Disconnect the display switch connector from the system board. 1 display switch connector 16. Remove any cards from the PCMCIA slot. 17. Remove the two M2.5 x 5-mm system boa...
Page 28
1 M2.5 x 5-mm screws (2) Installing the System Board 1. Insert the video connector on the replacement system board through the back of the base plastics. 2. Replace the two hex nuts that secure the...
Page 29
7. Replace the palm rest. 8. Replace the microprocessor thermal-cooling assembly. 9. Replace the cooling fan. 10. Replace the display assembly. 11. Replace the keyboard. 12. Replace the Mini PCI...
Page 30
Back to Contents Page System Components Dell™ Latitude™ 110L Service Manual CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not au...
Page 31
Back to Contents Page Microprocessor Thermal-Cooling Assembly Dell™ Latitude™ 110L Service Manual Removing the Cooling Fan Installing the Cooling Fan Removing the Microprocessor Thermal-Cooling ...
Page 32
1 M2.5 x 5-mm screws (4) 2 shield retention tabs (3) 3 shield-retention tab slots 6. Disconnect the two M2 x 3-mm screws and the fan power cable from the system board. 1 M2 x 3-mm screws (2) 2 f...
Page 33
1 M2 x 3-mm screws (2) 2 fan connector 3. Align the EMI shield retention tabs with the retention-tab slots on the computer base and rotate the front until it lies flat. 4. Replace the four M2.5 x ...
Page 34
3. Disconnect the display ground wire from the EMI shield by unscrewing the captive screw. 1 captive screw 2 display ground wire 4. Remove the four M2.5 x 5-mm screws (labeled "M2.5x5") ...
Page 35
1 captive screws (4) 7. Pull up the microprocessor thermal-cooling assembly by the pull-tab to lift the assembly out of the system board. Installing the Microprocessor Thermal-Cooling Assembly NOTIC...
Page 36
Back to Contents Page Dell™ Latitude™ 110L Service Manual NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potential dama...
Page 37
Back to Contents Page Memory, Optical Drive, Modem, and Mini PCI Card Dell™ Latitude™ 110L Service Manual Memory Optical Drive Modem Mini PCI Card Memory Removing the Memory Module CAUTION: Be...
Page 38
1 securing clips 2 memory module Installing the Memory Modules NOTE: If the memory module is not installed properly, the computer may not boot properly. No error message indicates this failure. 1. ...
Page 39
2. Remove the M2.5 x 8-mm screw from the indention labeled with a lock symbol ( 3. Insert a screwdriver into the indention and push the notch on the metal tab to release the drive from the bay. 1 n...
Page 40
1 hinge cover 2 notched edge 3. Open the display all the way (180 degrees) so that it lies flat against your work surface. 4. Use a small plastic scribe to lift the right edge of the hinge cover. ...
