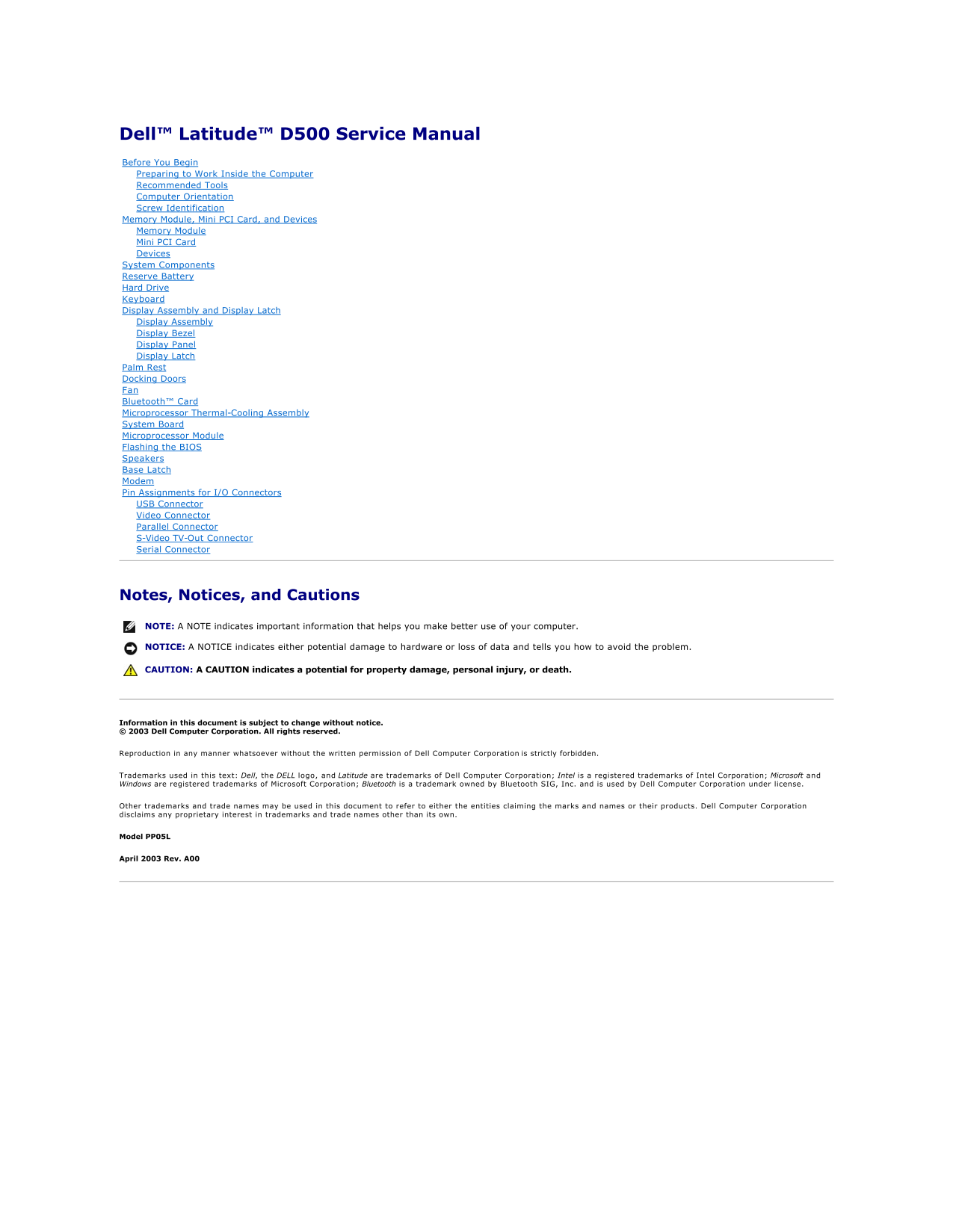

Dell™ Latitude™ D500 Service Manual Before You Begin Preparing to Work Inside the Computer Recommended Tools Computer Orientation Screw Identification Memory Module, Mini PCI Card, and Devices Memor...
Page 2
Back to Contents Page Before You Begin Dell™ Latitude™ D500 Service Manual Preparing to Work Inside the Computer Recommended Tools Computer Orientation Screw Identification Preparing to Work I...
Page 3
Recommended Tools The procedures in this manual require the following tools: #1 Phillips screwdriver ¼-inch flat-blade screwdriver Small plastic scribe Flash BIOS update program floppy disk or CD...
Page 4
Display Assembly: Display Bezel: Display Panel: (3 each) (display bumpers, 6 each) (4 each) (6 each) Display Latch: Palm Rest: Fan: (3 each) (3 each) (2 each) (9 each) System Board: Speaker...
Page 5
(4 each) Back to Contents Page
Page 6
Back to Contents Page Flashing the BIOS Dell™ Latitude™ D500 Service Manual 1. Ensure that the AC adapter is plugged in and that the main battery is installed properly. NOTE: If you use a BIOS update...
Page 7
Back to Contents Page Bluetooth™ Card Dell™ Latitude™ D500 Service Manual CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide. NOTICE: T...
Page 8
Back to Contents Page Microprocessor Module Dell™ Latitude™ D500 Service Manual Removing the Microprocessor Module CAUTION: Before performing the following procedures, read the safety instructions in ...
Page 9
NOTICE: Ensure that the cam lock is in the fully open position before seating the microprocessor module. Seating the microprocessor module properly in the ZIF socket does not require force. NOTICE: A ...
Page 10
Back to Contents Page Display Assembly and Display Latch Dell™ Latitude™ D500 Service Manual Display Assembly Display Bezel Display Panel Display Latch Display Assembly CAUTION: Before perform...
Page 11
1 display 2 computer base 1 display bumpers (6) 4 display panel 2 M2 x 5-mm screws (6) 5 top cover 3 display bezel 6 M2 x 5-mm screws (4) Display Bezel
Page 12
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide. NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding...
Page 13
NOTICE: Disconnect the computer and any attached devices from electrical outlets, and remove any installed batteries. NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist groundi...
Page 14
Back to Contents Page Docking Doors Dell™ Latitude™ D500 Service Manual Removing the Docking Doors CAUTION: Before working inside your computer, read the safety instructions in your System Information...
Page 15
Back to Contents Page
Page 16
Back to Contents Page Fan Dell™ Latitude™ D500 Service Manual CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide. NOTICE: To avoid elect...
Page 17
Back to Contents Page Hard Drive Dell™ Latitude™ D500 Service Manual CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive. CA...
Page 18
NOTICE: If you do not open the display before you replace your hard drive, you might permanently scratch your display bezel. 6. Open the display approximately 0.5 inch. NOTICE: Use firm and even pres...
Page 19
Back to Contents Page Keyboard Dell™ Latitude™ D500 Service Manual CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide. NOTICE: To avoid ...
Page 20
1 center control cover 4. Remove the keyboard: a. Remove the two M2.5 x 6-mm screws across the top of the keyboard. NOTICE: The keycaps on the keyboard are fragile, easily dislodged, and time-consum...
Page 21
Back to Contents Page Base Latch Dell™ Latitude™ D500 Service Manual CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide. NOTICE: To avoi...
Page 22
Back to Contents Page Modem Dell™ Latitude™ D500 Service Manual CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide. NOTICE: To avoid ele...
Page 23
1 modem 2 modem cable Back to Contents Page
Page 24
Back to Contents Page Palm Rest Dell™ Latitude™ D500 Service Manual CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide. NOTICE: To avoid...
Page 25
1 back center of the palm rest 2 touch pad connector 3 system board connector 4 computer base 6. Turn the computer over and remove the nine M2.5 x 8-mm screws. 1 M2.5 x 8-mm screws (9) NOTICE: Carefu...
Page 26
Back to Contents Page Pin Assignments for I/O Connectors Dell™ Latitude™ D500 Service Manual USB Connector Video Connector Parallel Connector S-Video TV-Out Connector Serial Connector USB Co...
Page 27
Pin Signal Pin Signal 1 STROBE– 10 ACK– 2 PD0 11 BUSY 3 PD1 12 PE 4 PD2 13 SLCT 5 PD3 14 AFD/3M– 6 PD4 15 ERROR– 7 PD5 16 INIT– 8 PD6 17 SLIN– 9 PD7 18–25 GND S-Video TV-Out Connector S-Video Pin Sign...
Page 28
Pin Signal Pin Signal 1 DCD 6 DSR 2 RXDA 7 RTS 3 TXDA 8 CTS 4 DTR 9 RI 5 GND Back to Contents Page
Page 29
Back to Contents Page Reserve Battery Dell™ Latitude™ D500 Service Manual CAUTION: Before working inside your Dell™ computer, read the safety instructions in your System Information Guide. CAUTION: To...
Page 30
Back to Contents Page Speakers Dell™ Latitude™ D500 Service Manual CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide. NOTICE: To avoid ...
Page 31
Back to Contents Page System Board Dell™ Latitude™ D500 Service Manual Removing the System Board CAUTION: Before performing the following procedures, read the safety instructions in your System Inform...
Page 32
1 M2 x 3-mm screws (4) 8. Remove the four M2 x 3-mm screws labeled "circle B" that secure the system board to the computer base. 9. Pull out the system board starting from the front of the...
Page 33
Back to Contents Page System Components Dell™ Latitude™ D500 Service Manual NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not aut...
Page 34
Back to Contents Page Microprocessor Thermal-Cooling Assembly Dell™ Latitude™ D500 Service Manual Removing the Microprocessor Thermal-Cooling Assembly CAUTION: Before performing the following procedur...
Page 35
Back to Contents Page Dell™ Latitude™ D500 Service Manual NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicates either potential dama...
Page 36
Back to Contents Page Memory Module, Mini PCI Card, and Devices Dell™ Latitude™ D500 Service Manual Memory Module Mini PCI Card Devices Memory Module CAUTION: Before working inside your Dell™ co...
Page 37
NOTICE: If you need to install memory modules in two connectors, install a memory module in the connector labeled "JDIM (Slot 1)" before you install a module in the connector labeled "J...
Page 38
3. Place your finger under the cover at the indentation, lift up the cover, and slide the cover open. 4. If a Mini PCI card is not already installed, go to step 5. If you are replacing a Mini PCI ca...
Page 39
7. Lower the Mini PCI card toward the inner tabs to approximately a 20-degree angle. 8. Continue lowering the Mini PCI card until it snaps into the inner tabs of the connector. 9. Replace the cover...
Page 40
2. Close the display and turn the computer over. 3. Use a #1 Phillips screwdriver to remove the M2 x 3-mm screw from the bottom of the computer. 1 M2 x 3-mm screw 4. Press the device latch release ...
