Dell Latitude C800 Service Manual
Summary
This document is the official manual for the Unknown Product. The manual provides comprehensive guidance on setup, configuration, and operation. Troubleshooting guidance and problem resolution steps are also provided. Designed for technicians and service professionals who need detailed guidance on using and maintaining this keyboard.
Page 1 Text Content

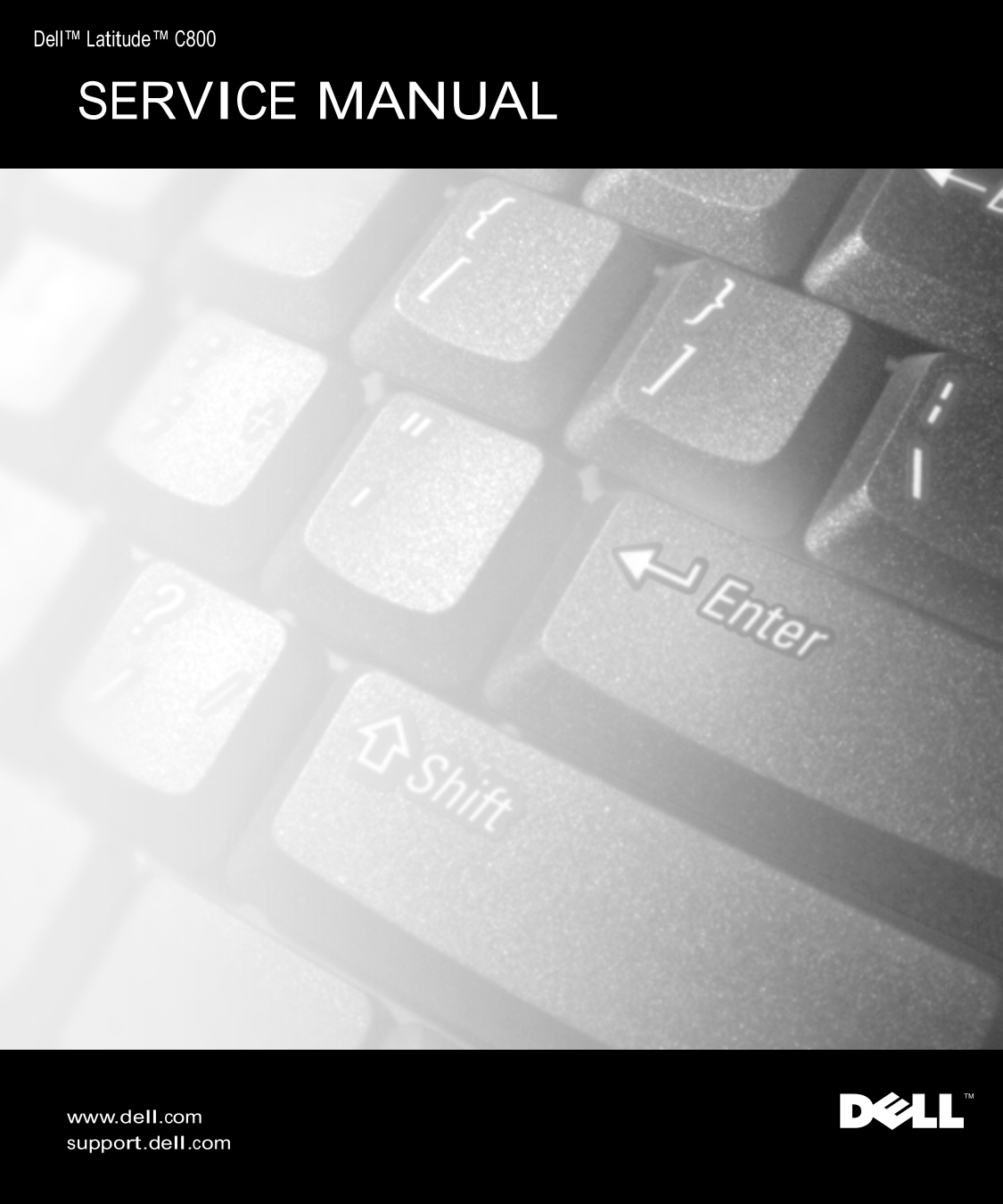

64mcwc11.book Page 1 Tuesday, April 3, 2001 9:58 AM
Dell™ Latitude™ C800
SERVICE MANUAL
www.dell.com support.dell.com
Page Summary Contents For Dell Latitude C800 Service Manual
Page 1
64mcwc11.book Page 1 Tuesday, April 3, 2001 9:58 AM Dell™ Latitude™ C800 SERVICE MANUAL www.dell.com support.dell.com
Page 2
64mcwc11.book Page 2 Tuesday, April 3, 2001 9:58 AM
Page 3
64mcwc11.book Page 3 Tuesday, April 3, 2001 9:58 AM Dell™ Latitude™ C800 SERVICE MANUAL www.dell.com support.dell.com
Page 4
64mcwc11.book Page 4 Tuesday, April 3, 2001 9:58 AM Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indicate...
Page 5
Contents Before You Begin Preparing to Work Inside the Computer Recommended Tools Screw Identification Removing and Replacing Parts System Components . Hard Drive Removing the Hard Drive . Replacing t...
Page 6
Display and Bezel Assemblies Removing the Hinge Cover Removing the Display Assembly Removing the Display Assembly Bezel Removing the Display Panel Replacing the Display Panel Removing the Display Latc...
Page 7
Replacing the LED Board Fan Assembly Removing the Fan Assembly RJ-11/RJ-45 Board Removing the Protective Covers From the RJ-11 and RJ-45 Connectors Removing the RJ-11/RJ-45 Board Index
Page 9
64mcwc11.book Page 7 Tuesday, April 3, 2001 9:58 AM .d ll.c su rt.d ll.c Before You Begin Preparing to Work Inside the Computer Recommended Tools Screw Identification
Page 10
64mcwc11.book Page 8 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c Preparing to Work Inside the Computer NOTICE: Only a certified service technician should perform repairs on your computer. Dama...
Page 11
64mcwc11.book Page 9 Tuesday, April 3, 2001 9:58 AM Recommended Tools The procedures in this manual require the following tools: #1 magnetized Phillips screwdriver Small flat-blade screwdriver Small p...
Page 12
64mcwc11.book Page 10 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c Screw Identification When you are removing and replacing components, photocopy the placemat as a tool to lay out and keep trac...
Page 13
64mcwc11.book Page 11 Tuesday, April 3, 2001 9:58 AM Screw Placement Map Hard Drive Door Security: Keyboard to Bottom Case Display to Base: Assembly: M3.0 x 5 mm (1 each) M2.5 x 6 mm (3 each; 2 at bac...
Page 14
64mcwc11.book Page 12 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c Before You Begin
Page 15
64mcwc11.book Page 13 Tuesday, April 3, 2001 9:58 AM .d ll.c su rt.d ll.c Remov ing and Rep lac ing Part System Components Hard Drive Fixed Optical Drive Memory Module Mini PCI Card Assembly Keyboard ...
Page 16
64mcwc11.book Page 14 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c System Components pl ed Vi display assembly keyboard hinge cover palmrest assembly thermal cooling assembly fixed optical driv...
Page 17
64mcwc11.book Page 15 Tuesday, April 3, 2001 9:58 AM NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not ...
Page 18
64mcwc11.book Page 16 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c Removing the Hard Drive Follow the instructions in “Preparing to Work Inside the Computer.” Remove the drive door screw. Pull ...
Page 19
64mcwc11.book Page 17 Tuesday, April 3, 2001 9:58 AM Removing the Fixed Optical Drive Follow the instructions in “Preparing to Work Inside the Computer.” Loosen the captive screw on the bottom of the ...
Page 20
64mcwc11.book Page 18 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c Follow the instructions in “Preparing to Work Inside the Computer.” Remove the screw. Disengage the metal tabs at the opposite...
Page 21
64mcwc11.book Page 19 Tuesday, April 3, 2001 9:58 AM NOTE: Memory modules are keyed to fit into their sockets in only one direction. Insert the memory module’s edge connector into the socket slot at a...
Page 22
64mcwc11.book Page 20 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c ni CI Ca er 20-mm screw Removing the Mini PCI Card Assembly Follow the instructions in “Preparing to Work Inside the Computer....
Page 23
64mcwc11.book Page 21 Tuesday, April 3, 2001 9:58 AM Replacing the Mini PCI Card Assembly Align the Mini PCI Card assembly with the socket at a 45-degree angle, and press the Mini PCI Card into the so...
Page 24
64mcwc11.book Page 22 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c ni CI Wi le C A sse ly Us in te a C ab connection to internal system antenna mini-coax outermost antenna cable antenna connect...
Page 25
64mcwc11.book Page 23 Tuesday, April 3, 2001 9:58 AM Ke yb rd cr ws 20-mm screws (4) Removing the Keyboard Assembly Follow the instructions in “Preparing to Work Inside the Computer.” Turn the compute...
Page 26
64mcwc11.book Page 24 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c ey ar em al scalloped edge of blank key keyboard right side of computer Lift the right end of the keyboard and slide it slight...
Page 27
64mcwc11.book Page 25 Tuesday, April 3, 2001 9:58 AM Ke yb rd ab keyboard cable Disconnect the keyboard cable and lay the keyboard assembly aside. Replacing the Keyboard Assembly While bracing the key...
Page 28
64mcwc11.book Page 26 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c Display and Bezel Assemblies NOTICE: Disconnect the computer and attached devices from electrical outlets and remove any insta...
Page 29
64mcwc11.book Page 27 Tuesday, April 3, 2001 9:58 AM Removing the Hinge Cover Hi e C ve hinge cover Follow the instructions in “Preparing to Work Inside the Computer.” Use a nonmarring tool to loosen ...
Page 30
64mcwc11.book Page 28 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c Removing the Display Assembly sp la As se mb 6-mm screws (2) Remove the hinge cover. NOTICE: Make sure you remove the flex cab...
Page 31
64mcwc11.book Page 29 Tuesday, April 3, 2001 9:58 AM le x C ab 6-mm screw pull loop flex cable strain relief Remove the 6-mm screw that secures the display flex cable to the strain relief, and then us...
Page 32
64mcwc11.book Page 30 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c sp la As se mb y B ez d Pa el 4-mm screws (6) rubber screw covers (4) plastic screw display assembly bezel covers (2) plastic ...
Page 33
64mcwc11.book Page 31 Tuesday, April 3, 2001 9:58 AM Remove the four 4-mm screws located across the top of the bezel. Use a scribe at the indentations to pry out the two plastic screw covers located a...
Page 34
64mcwc11.book Page 32 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c ex Ca le Co ec rs Di pl y Pa ZIF connector standard connector Replacing the Display Panel NOTE: Use a magnetic screwdriver to ...
Page 35
64mcwc11.book Page 33 Tuesday, April 3, 2001 9:58 AM Reinstall the 4-mm screw that secures the flex cable mounting bracket to the top cover. Starting on the left side, use a magnetic screwdriver to re...
Page 36
64mcwc11.book Page 34 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c Microprocessor Thermal Cooling Assembly NOTICE: Disconnect the computer and attached devices from electrical outlets and remov...
Page 37
64mcwc11.book Page 35 Tuesday, April 3, 2001 9:58 AM Insert a flat-blade screwdriver into the latch mechanism at the left side of the microprocessor retaining clip. Pry open the clip by pivoting the t...
Page 38
64mcwc11.book Page 36 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c cr ro sso Mo le Removing the Microprocessor Module Follow the instructions in “Preparing to Work Inside the Computer.” Remove ...
Page 39
64mcwc11.book Page 37 Tuesday, April 3, 2001 9:58 AM Mi op ce so m Lo re (E mp e) NOTICE: Hold the microprocessor down while turning the cam lock screw to prevent intermittent contact between the cam ...
Page 40
64mcwc11.book Page 38 Tuesday, April 3, 2001 9:58 AM .d ll .c rt .d ll .c NOTICE: Hold the microprocessor down while turning the cam lock screw to prevent intermittent contact between the cam lock scr...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 62 |
| File Size | 2.75 MB |
| Published | June 28, 2026 |
5 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I remove the hard drive?
Remove the cover, disconnect the drive, and pull the tall plastic tab away from the assembly to release it.
What tools are needed to open the computer?
Use a screwdriver to remove the covers, as a screwdriver is the recommended tool for opening the computer.
How do I replace the Mini PCI card assembly?
Follow the instructions to remove the assembly and then route the wiring harness correctly before placing it back.
How do I remove the keyboard assembly?
Remove the keyboard flex cable from the system board and disconnect the keyboard cable from the system board.
