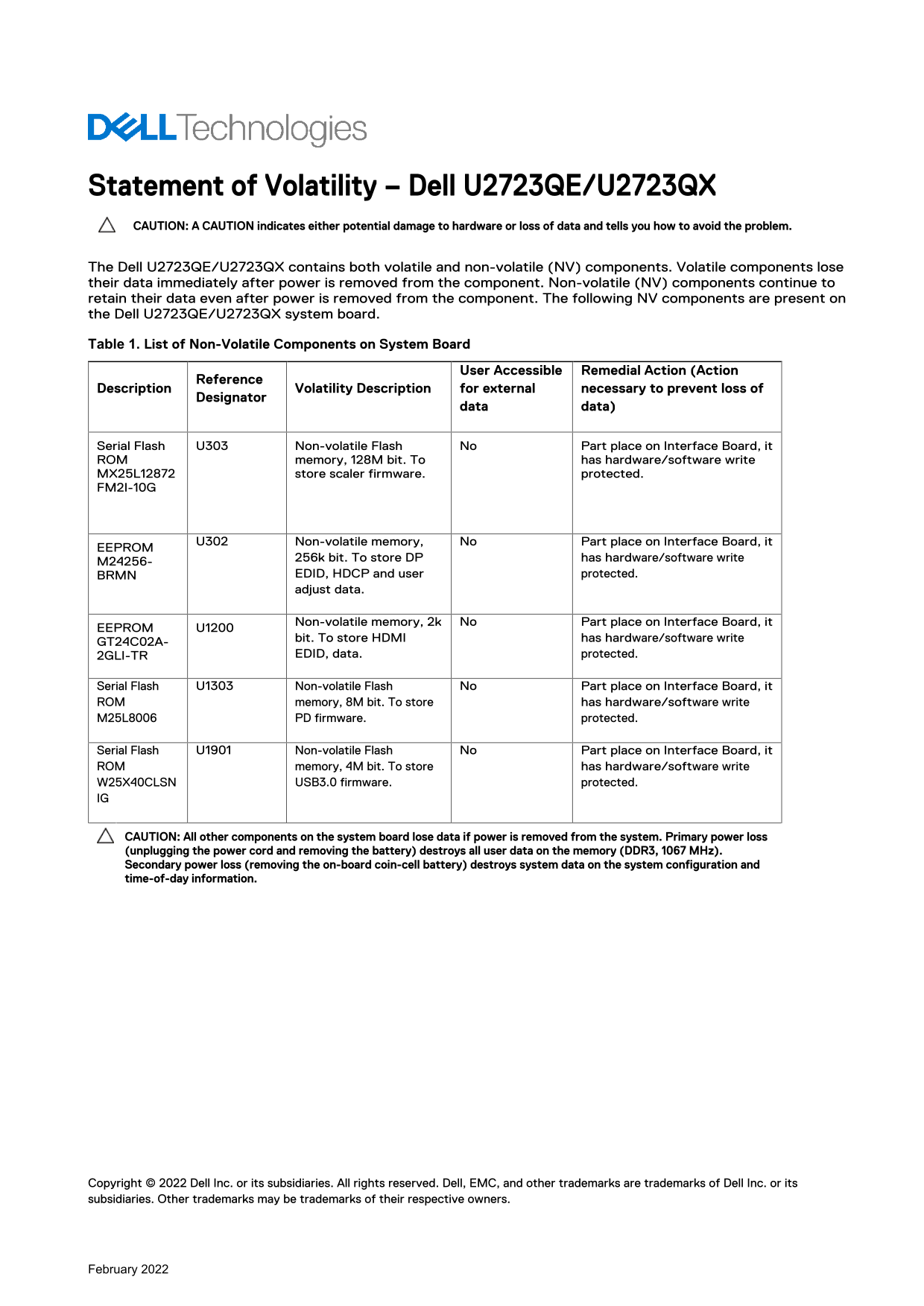

Dell U2723QX Monitor Statement of Volatility
Summary
This technical guide defines component volatility for the Dell U2723QE/U2723QX display, crucial for advanced users and technicians. It details which internal components are non-volatile (retaining data when power is lost) versus those that are volatile. By identifying key chips like EEPROM and serial flash memories, this information prevents incorrect hardware handling and helps safeguard system configuration, firmware, and user data during maintenance or unexpected power loss incidents.
Page 1 Text Content
Statement of Volatility – Dell U2723QE/U2723QX CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell U2723QE/U2723QX contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Dell U2723QE/U2723QX system board. Table 1. List of Non-Volatile Components on System Board
User Accessible Remedial Action (Action
Reference
Description Volatility Description for external necessary to prevent loss of
Designator
data data)
Serial Flash U303 Non-volatile Flash No Part place on Interface Board, it
ROM memory, 128M bit. To has hardware/software write MX25L12872 store scaler firmware. protected.
FM2I-10G
U302 Non-volatile memory, No Part place on Interface Board, it
EEPROM
256k bit. To store DP has hardware/software write
BRMN EDID, HDCP and user protected.
adjust data.
No Part place on Interface Board, it
EEPROM U1200 Non-volatile memory, 2k
bit. To store HDMI has hardware/software write
GT24C02A-
2GLI-TR EDID, data. protected.
Serial Flash U1303 Non-volatile Flash No Part place on Interface Board, it
ROM memory, 8M bit. To store has hardware/software write M25L8006 PD firmware. protected.
Serial Flash U1901 Non-volatile Flash No Part place on Interface Board, it
ROM memory, 4M bit. To store has hardware/software write
W25X40CLSN USB3.0 firmware. protected.
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord and removing the battery) destroys all user data on the memory (DDR3, 1067 MHz). Secondary power loss (removing the on-board coin-cell battery) destroys system data on the system configuration and time-of-day information.
Copyright © 2022 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
February 2022
