Dell U2711 Monitor Statement of Volatility
Summary
This security document identifies memory components in the Dell UltraSharp U2711 monitor, including Flash ROM, DDR SDRAM, DDR2 SDRAM, and EEPROM chips. It details memory types, sizes, volatility characteristics, data input methods, and write protection mechanisms. Target users are security professionals and compliance personnel requiring component-level volatility information for monitor security assessments and data sanitization procedures.

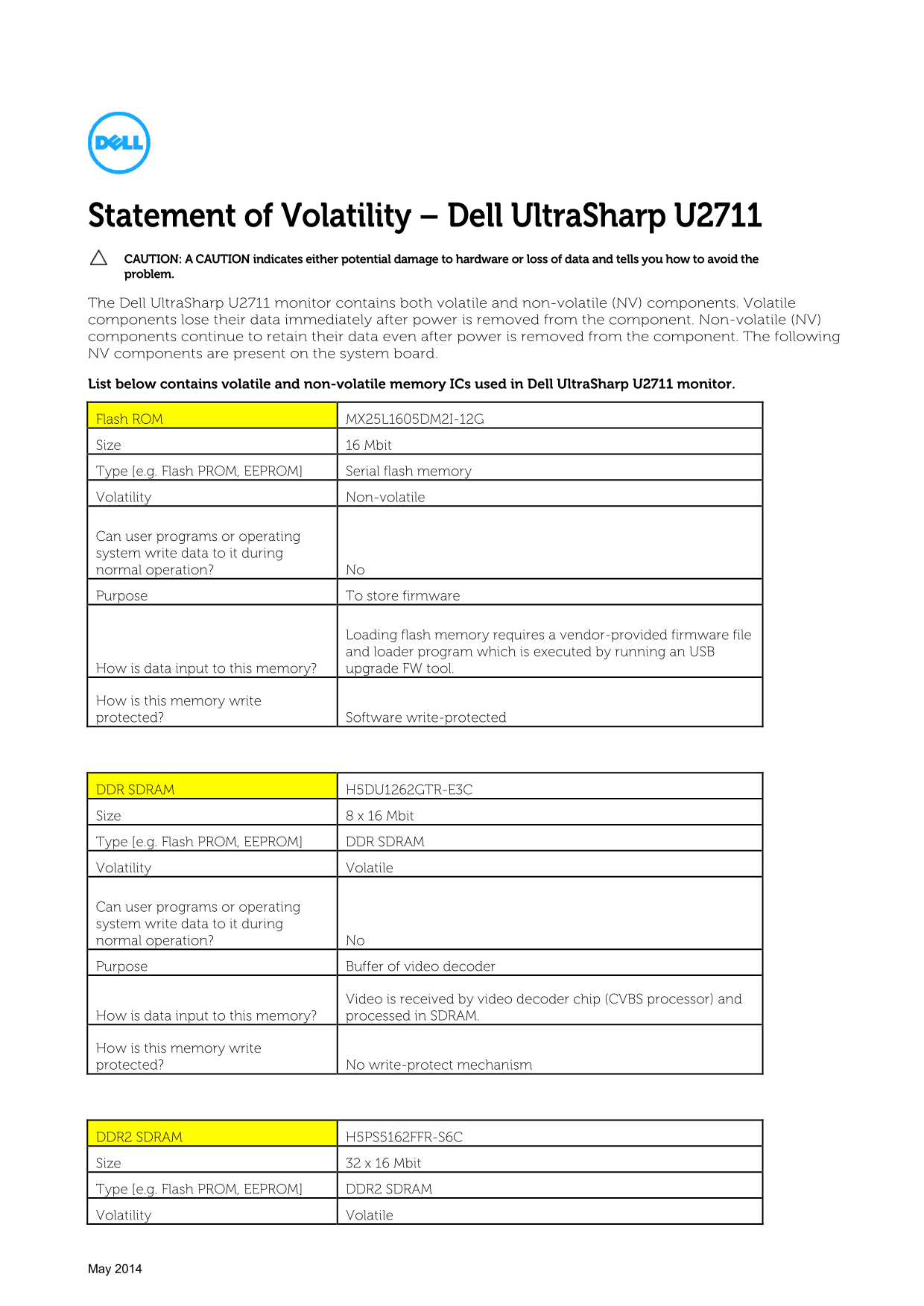

Page 1 Text Content
Statement of Volatility – Dell Ultra Sharp U2711 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Ultra Sharp U2711 monitor contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the system board. List below contains volatile and non-volatile memory ICs used in Dell Ultra Sharp U2711 monitor.
Flash ROM MX25L1605DM2I-12G Size 16 Mbit Type [e.g. Flash PROM, EEPROM] Serial flash memory Volatility Non-volatile
Can user programs or operating system write data to it during normal operation? No Purpose To store firmware
Loading flash memory requires a vendor-provided firmware file and loader program which is executed by running an USB
How is data input to this memory? upgrade FW tool.
How is this memory write protected? Software write-protected
DDR SDRAM H5DU1262GTR-E3C Size 8 x 16 Mbit Type [e.g. Flash PROM, EEPROM] DDR SDRAM Volatility Volatile
Can user programs or operating system write data to it during normal operation? No Purpose Buffer of video decoder
Video is received by video decoder chip (CVBS processor) and
How is data input to this memory? processed in SDRAM.
How is this memory write protected? No write-protect mechanism
DDR2 SDRAM H5PS5162FFR-S6C Size 32 x 16 Mbit Type [e.g. Flash PROM, EEPROM] DDR2 SDRAM Volatility Volatile
May 2014
Page Summary Contents For Dell U2711 Monitor Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 4 |
| File Size | 87.84 KB |
| Published | June 25, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Can I write data to the monitor's firmware flash memory?
No, user programs cannot write to it. Loading requires a vendor-provided firmware file and loader program via USB upgrade tool.
Does the monitor save settings when turned off?
Yes, settings are stored in the System EEPROM and remain after power is removed.
Why is the video buffer volatile?
The DDR SDRAM buffers video data received by the decoder; data is lost immediately if power is removed.
How is VGA EDID stored and protected?
It is stored in a non-volatile EEPROM and is protected by both hardware and software write-protection.
How do I write data to the DVI-1 EDID memory?
You must use a vendor-provided tool and a specific DVI cable.
Does the monitor have volatile memory?
Yes, it contains DDR and DDR2 SDRAM which lose data immediately when power is removed.
