Dell U2410 Monitor - Statement of Volatility
Summary
The Statement of Volatility for Dell U2410f Monitor certifies that no input video data is retained after power removal. It documents volatile and non-volatile memory ICs including Flash ROM for firmware storage, DDR SDRAM and DDR2 SDRAM for video processing buffers, and System EEPROM for manufacturing data. The document confirms no user data is written during normal operation. It serves security professionals and government compliance officers requiring volatility certification for display devices.
Page 1 Text Content

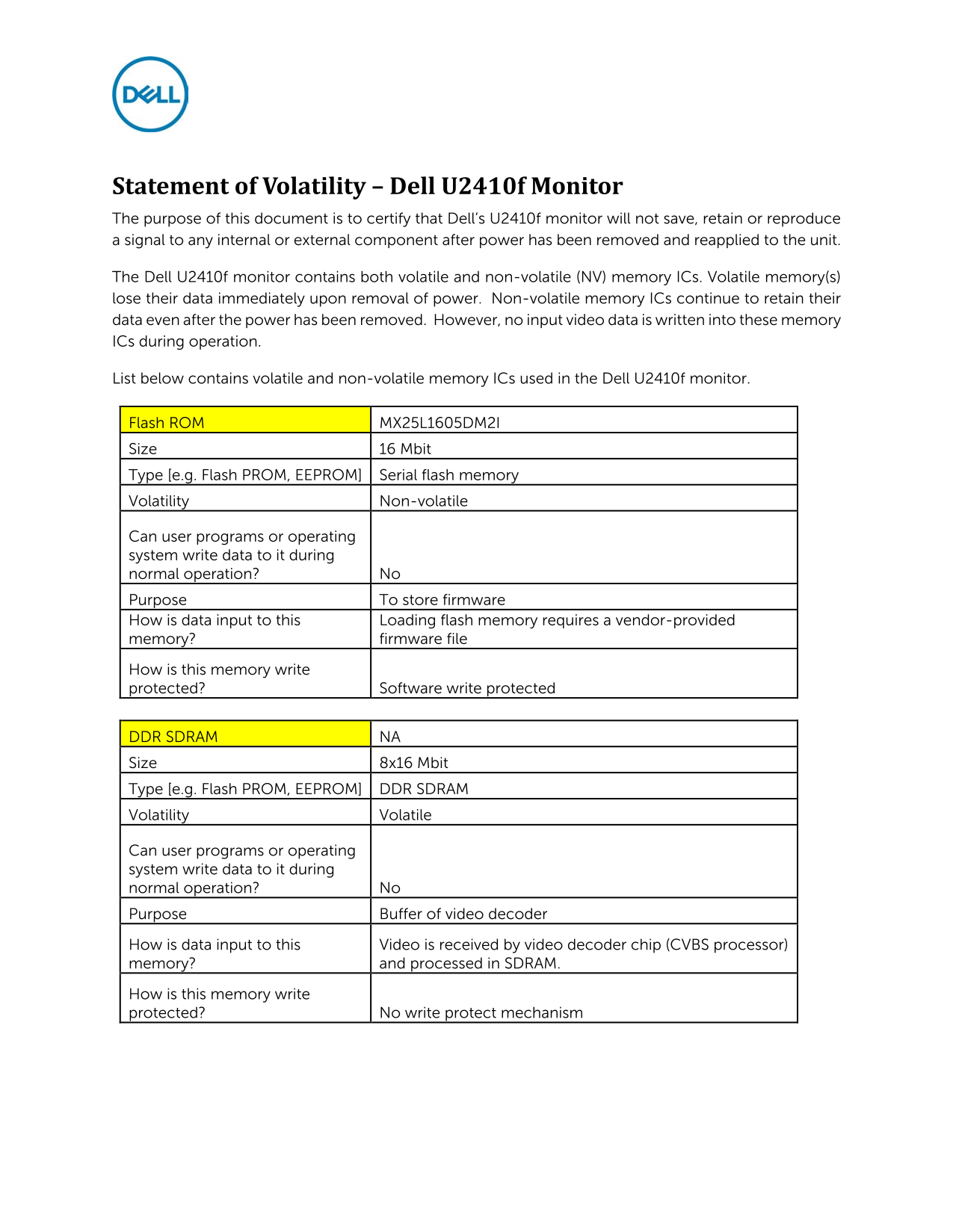

Statement of Volatility – Dell U2410f Monitor The purpose of this document is to certify that Dell’s U2410f monitor will not save, retain or reproduce a signal to any internal or external component after power has been removed and reapplied to the unit. The Dell U2410f monitor contains both volatile and non-volatile (NV) memory ICs. Volatile memory(s) lose their data immediately upon removal of power. Non-volatile memory ICs continue to retain their data even after the power has been removed. However, no input video data is written into these memory ICs during operation.
List below contains volatile and non-volatile memory ICs used in the Dell U2410f monitor.
Flash ROM MX25L1605DM2I Size 16 Mbit Type [e.g. Flash PROM, EEPROM] Serial flash memory Volatility Non-volatile
Can user programs or operating system write data to it during normal operation? No Purpose To store firmware How is data input to this Loading flash memory requires a vendor-provided memory? firmware file How is this memory write protected? Software write protected
DDR SDRAM NA Size 8x16 Mbit Type [e.g. Flash PROM, EEPROM] DDR SDRAM Volatility Volatile
Can user programs or operating system write data to it during normal operation? No Purpose Buffer of video decoder How is data input to this Video is received by video decoder chip (CVBS processor) memory? and processed in SDRAM. How is this memory write protected? No write protect mechanism
Page Summary Contents For Dell U2410 Monitor - Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 3 |
| File Size | 130.07 KB |
| Published | June 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Does the Dell U2410f monitor save video data when power is removed?
No, the monitor does not save or reproduce video input data to any component after power is removed.
What type of memory is used to store OSD settings?
The monitor uses System EEPROM (CAT24C32WI/AT24C32AN) which retains OSD settings like brightness and contrast.
Is the main firmware stored in volatile or non-volatile memory?
Firmware is stored in non-volatile Flash ROM (MX25L1605DM2I) and persists after power loss.
Does the monitor retain data during a power loss event?
No, only specific non-volatile components retain data; all other components lose data if power is removed.
