Dell Thunderbolt Docking Station Statement of Volatility
Summary
This is the Statement of Volatility for Dell WD19S, WD19DCS, and WD19TBS docking stations. The document details the volatile and non-volatile components present on the system board, including ED SPI ROM, USB Hub ROM, DP MST Hub SPI ROM, and Intel Titan Ridge SPI ROM. It specifies the memory types, volatility characteristics, and remedial actions required to prevent data loss. This technical reference is intended for security professionals, IT administrators, and compliance officers who need to understand data retention characteristics for secure disposal or transfer of docking station equipment.

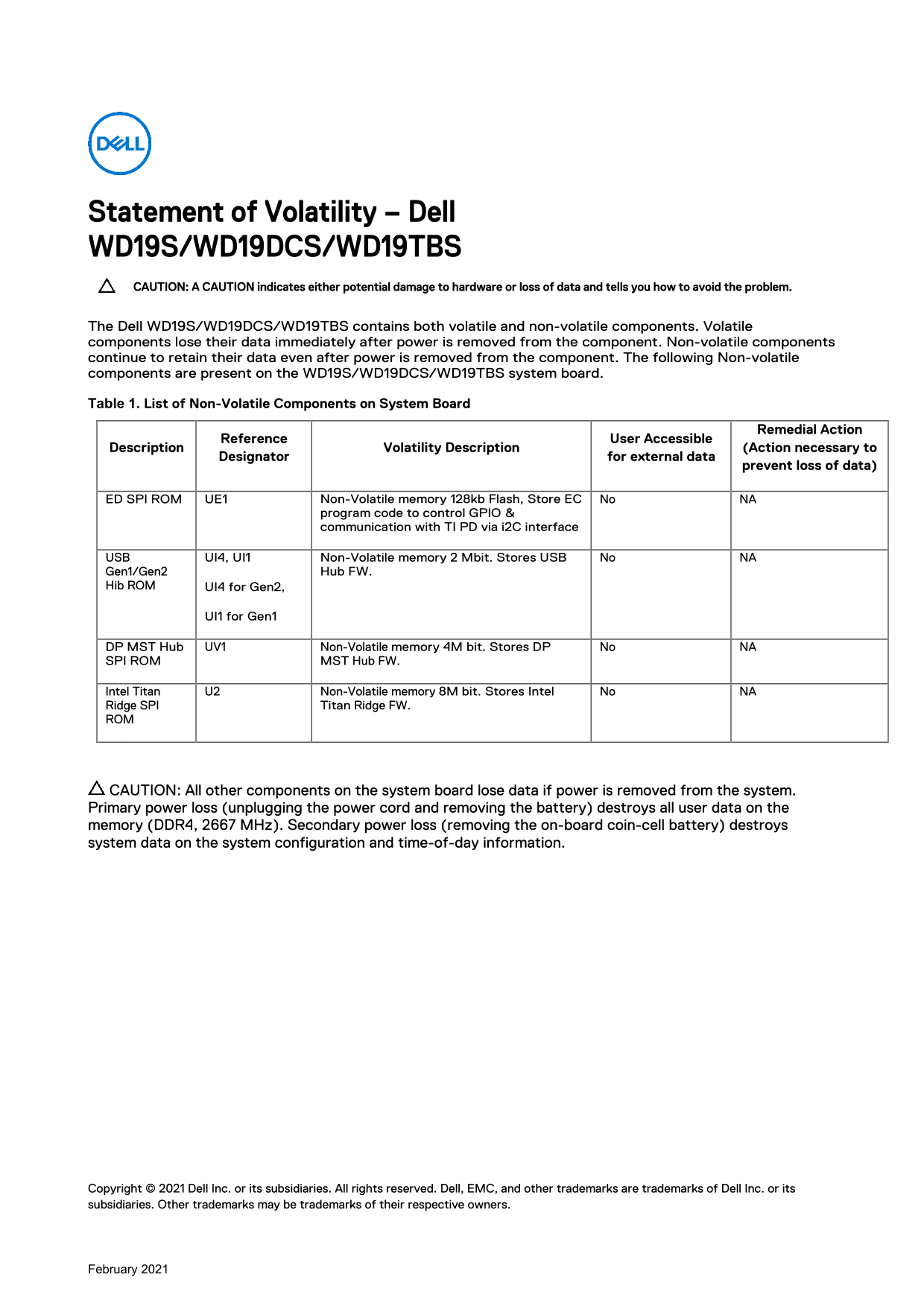

Page 1 Text Content
Statement of Volatility – Dell WD19S/WD19DCS/WD19TBS CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell WD19S/WD19DCS/WD19TBS contains both volatile and non-volatile components. Volatile components lose their data immediately after power is removed from the component. Non-volatile components continue to retain their data even after power is removed from the component. The following Non-volatile components are present on the WD19S/WD19DCS/WD19TBS system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action
Reference User Accessible
Description Volatility Description (Action necessary to
Designator for external data
prevent loss of data)
ED SPI ROM UE1 Non-Volatile memory 128kb Flash, Store EC No NA
program code to control GPIO & communication with TI PD via i2C interface
USB UI4, UI1 Non-Volatile memory 2 Mbit. Stores USB No NA Gen1/Gen2 Hub FW. Hib ROM UI4 for Gen2,
UI1 for Gen1
DP MST Hub UV1 Non-Volatile memory 4M bit. Stores DP No NA SPI ROM MST Hub FW.
Intel Titan U2 Non-Volatile memory 8M bit. Stores Intel No NA Ridge SPI Titan Ridge FW. ROM
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord and removing the battery) destroys all user data on the memory (DDR4, 2667 MHz). Secondary power loss (removing the on-board coin-cell battery) destroys system data on the system configuration and time-of-day information.
Copyright © 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
February 2021
