Dell S6100–ON System Release Notes, OS Version 9.14(1.12) This document contains information about open and resolved caveats, and operational information specific to the Dell Networking operating software (OS) and the S6100-Open Networking (ON) platform. Current Release Version: 9.14(1.12) Release Date: 2022-05-20 Previous Release Version: 9.14(1.10) Topics: Document Revision History Requirements New Dell Networking OS Version 9.14(1.12) Features Restrictions Changes to Default Behavior and CLI Syntax Documentation Corrections Deferred Issues Fixed Issues Known Issues Upgrading the ONIE Package for the S6100-ON System Upgrading the DIAG Package for the S6100-ON System Installing Dell Networking OS on the S6100-ON using ONIE Upgrading the S6100-ON Dell Networking OS Image using Dell Networking OS CLI Upgrade the Boot Selector and Boot Flash Images from Dell Networking OS Upgrade the CPLD Images Upgrading the Smart Fusion Microcontroller Subsystem — SMF MSS-IAP Upgrading the Smart Fusion Microcontroller Subsystem — SMF MSS-FPGA Upgrading the OOB-FPGA Image Uninstalling the Dell Networking OS Installing a Third Party Operating System Contacting Dell Technologies For more information on hardware and software features, commands, and capabilities, refer to the Dell Networking support website at: https://www.dell.com/support

Document Revision History Table 1. Revision History Date Description 2022–05 Initial release.

Page Summary Contents For Dell S6100-ON System Release Notes, OS Version 9.14.1.12 Owner's Manual

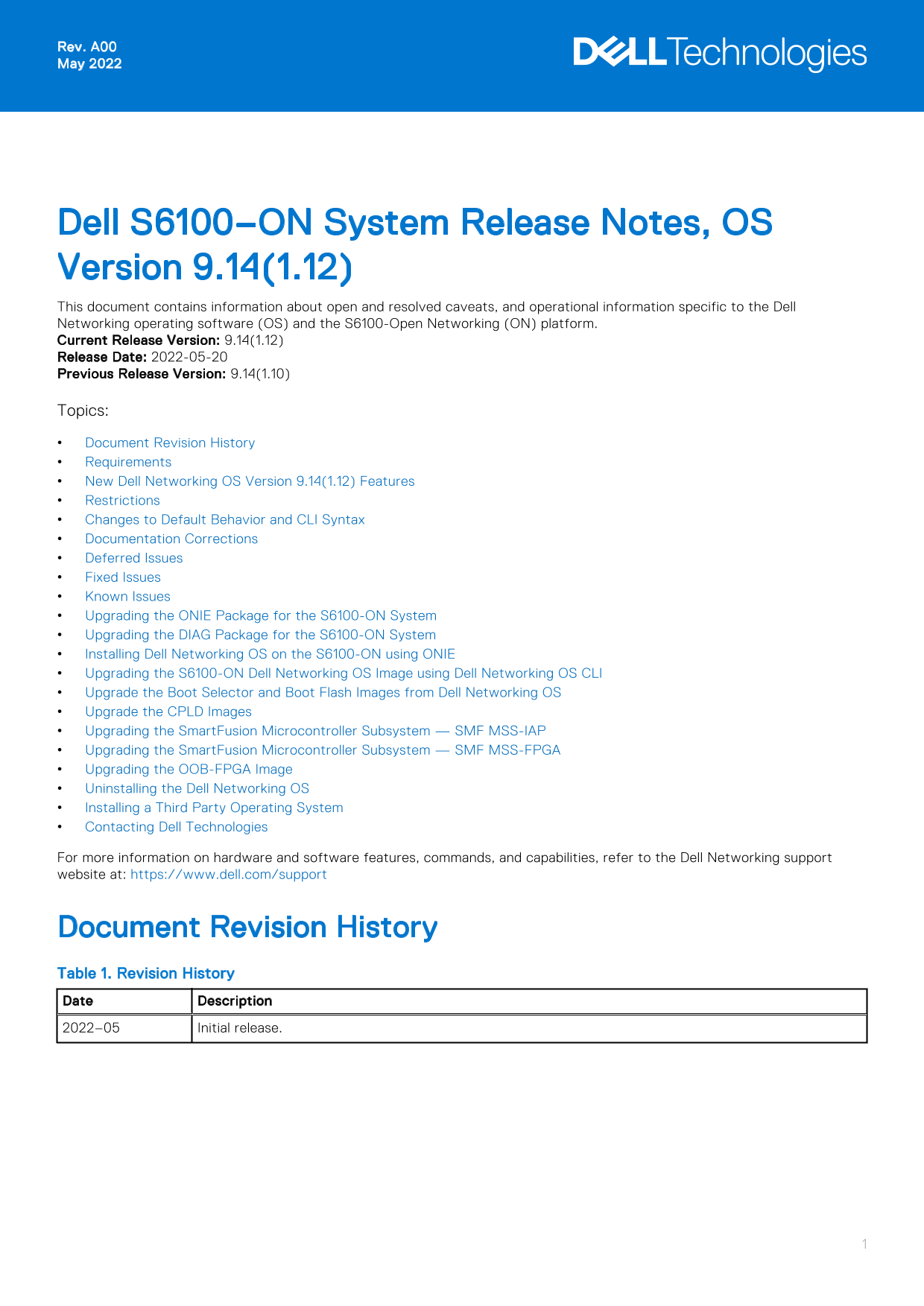

Page 1 Rev. A00 May 2022 Dell S6100–ON System Release Notes, OS Version 9.14(1.12) This document contains information about open and resolved caveats, and operational information specific to the Dell Network...
Page 2 Requirements The following requirements apply to the S6100-ON system. Hardware Requirements The following lists the Dell S6100-ON system hardware requirements: Up to four I/O modules of 8 x 10/25/40/5...
Page 3 Restrictions If you downgrade the Dell Networking OS version from 9.14(1.12) to 9.11(0.0) or any older version, the system displays the following error message even though there is no functional impac...
Page 4 When 1024 or more VNI profiles are configured, the system takes more time to load. Dell recommends to restrict the VNI profiles to be less than 1000. If you use the interface range command to select m...
Page 5 Category Description Issues listed in the “Fixed Issues” section should not be present, and the work-around is unnecessary, as the version of code for which this release note is documented has resolve...
Page 6 Severity: Sev 2 Synopsis: AAA accounting request displays an incorrect calling station-id. Release Notes: AAA accounting request displays an incorrect calling station-id. Workaround: None PR#170255 Se...
Page 7 Known S6100–ON 9.14(1.12) Software Issues The following issues are open in Dell Networking OS version 9.14(1.12): None Upgrading the ONIE Package for the S6100-ON System To upgrade the ONIE package, u...
Page 8 4. From this menu, choose the ONIE : Update ONIE option. NOTE: To choose an option from the menu, highlight one of the options using the up or down arrow key and press Enter. The ONIE update mode is e...
Page 9 Sent SIGTERM to all processes Sent SIGKILL tosd 4:0:0:0: [sda] Synchronizing SCSI cache Restarting system. machine restart BIOS (Dell EMC, Inc.) Boot Selector S6100 3.25.0.0-6 32 port 100G / 2 port sf...
Page 10 go to BLI, 'o' to boot ONIE, 'd' to boot DIAG-OS, 'e' to edit the commands before booting or 'c' for a command-line. 3. From the menu, choose the ONIE option. NOTE: To choose an option from the menu, ...
Page 11 6. Configure an interface and assign an IP address to that interface using the following command: ONIE:/ # ifconfig eth0 10.16.129.131/16 7. Enter the following command to upgrade DIAG on the S6100–ON...
Page 12 2. At this prompt message, press the Esc key. The following menu appears: Grub 1.99~rc1 (Dell EMC) Built by root at ubuntu on Thu_Mar_24_09:30:10_UTC_2022 S6100 Boot Flash Label 3.25.2.14 Net Boot Lab...
Page 13 Try this: tail -f /var/log/onie.log ** Installer Mode Enabled ** ONIE:/ # 5. At the ONIE prompt, to stop the ONIE discovery process, enter the following command: ONIE:/ # onie-discovery-stop The ONIE ...
Page 14 Upgrading the S6100-ON Dell Networking OS Image using Dell Networking OS CLI Bare Metal Provisioning NOTE: If you are using Bare Metal Provisioning (BMP), see the Bare Metal Provisioning topic in the ...
Page 15 2. Dell Technologies recommends that you back up your startup configuration and any important files and directories to an external media prior to upgrading the system. 3. Upgrade the Dell Networking O...
Page 16 Copyright (c) 1999-2021 by Dell Inc. All Rights Reserved. Build Time: Thu Mar 24 00:15:13 2022 Build Path: /build/build08/SW/SRC Dell EMC Networking OS uptime is 1 minute(s) System image file is &quot...
Page 17 * Warning - Upgrading boot flash is inherently risky and should only * * be attempted when necessary. A failure at this upgrade may cause * * a board RMA. Proceed with caution ! * Proceed upgrade Boot...
Page 18 -- Module 4 -- Status : online Module Type : S6100-MOD-8x ETH100-4CXP-T - 8-port 100GE QSFP28_4CXP+ Num Ports : 8 Hot Pluggable : no -- Power Supplies -- Unit Bay Status Type Fan Status Fan Speed(rpm)...
Page 19 S6100-ON IOM CPLD1 : 5 S6100-ON IOM CPLD2 : 18 S6100-ON IOM CPLD4 : 4 S6100-ON MSS FPGA : 1.1 S6100-ON MSS IAP : 2.4 S6100-ON OOB-FPGA : 1.0 Dell EMC# To view the CPLD version that is associated with ...
Page 20 upgrade fpga-image switchcard-cpld stack-unit <1> booted Current information for the system: Card Device Name Current Version New Version Unit1 S6100-ON SWITCHCARD CPLD 3 4 * Warning - Upgrading...
Page 21 To upgrade the CPLD image, follow these steps. Upgrade the 40G module CPLD image. EXEC Privilege Mode upgrade fpga-image mod-id stack-unit 1 booted In this example, the 40G Module is in slot 3. Dell E...
Page 22 Upgrade result : Unit 1 Cpld upgrade successful Unit 1. Please power cycle to take effect. Dell EMC#Mar 24 13:38:19: %S6100-ON:1 %DOWNLOAD-6-FPGA_UPGRADE: stack-unit 1 fpga upgrade success. Upgrading ...
Page 23 To upgrade the Smart Fusion Microcontroller Subsystem — SMF MSS-FPGA, follow these steps. Upgrade the SMF MSS-FPGA image. EXEC Privilege Mode upgrade mss-fpga-image stack-unit <stack–unit–id> bo...
Page 24 OOB FPGA upgrade in progress!!! Please do NOT power off the unit!!! Upgrade result : UNIT1 OOB FPGA upgrade successful UNIT1. Please power cycle to take effect. Dell EMC#Mar 24 12:15:57: %STKUNIT1-M:C...
Page 25 NOTE: To choose an option from the menu, highlight one of the options using the up or down arrow key and press Enter. The uninstall process begins, as shown: ONIE: OS Uninstall Mode ... Version : 3.25...
Page 26 CPGC Memtest ................................ PASS POST: RTC Battery OK at last cold boot RTC date Friday 03/24/2022 8:49:12 POST SPD test ............................... PASS POST Lower DRAM Memory t...
Page 27 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
