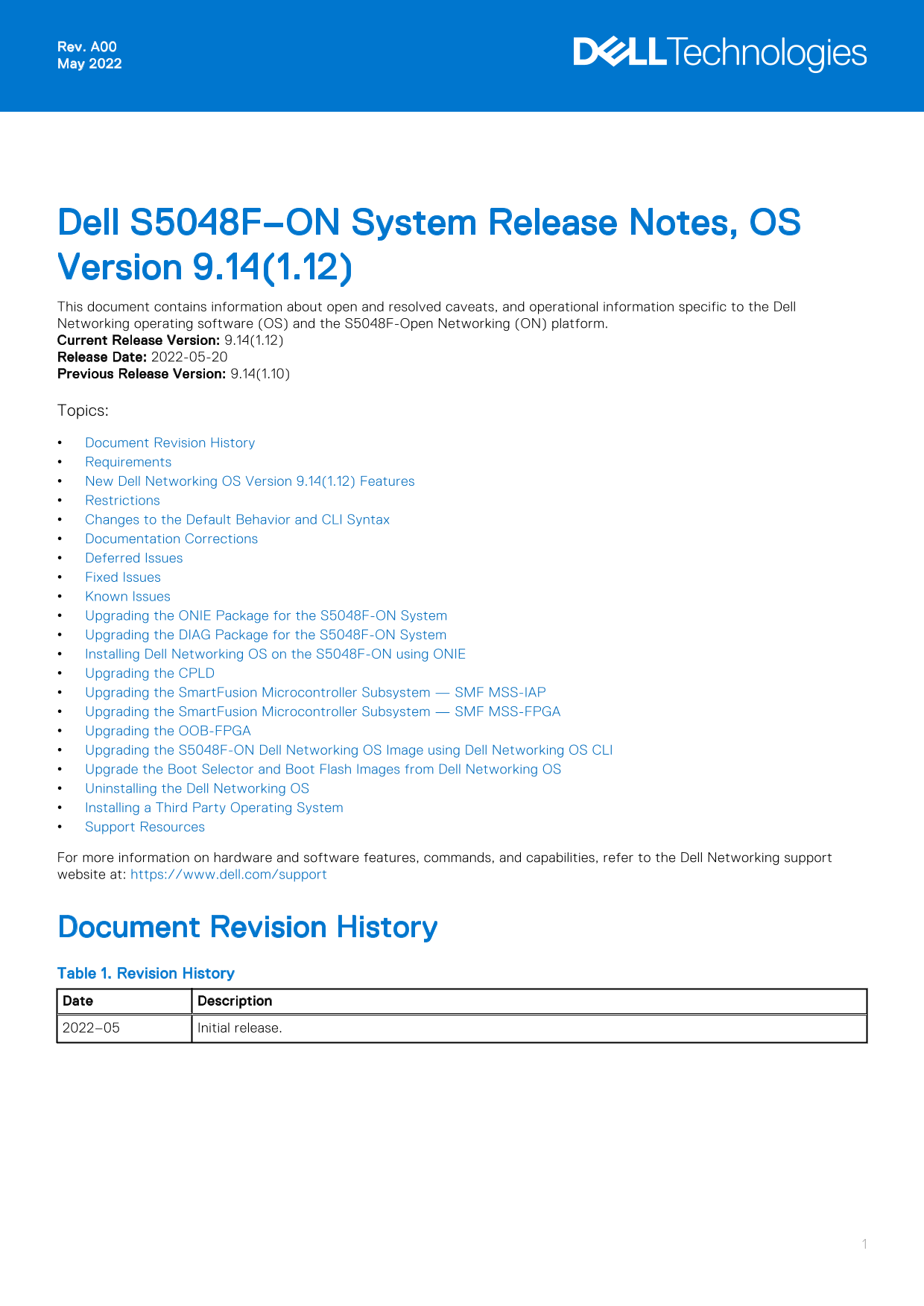

Rev. A00 May 2022 Dell S5048F–ON System Release Notes, OS Version 9.14(1.12) This document contains information about open and resolved caveats, and operational information specific to the Dell Networ...
Page 2
Requirements The following requirements apply to the S5048F-ON system. Hardware Requirements The following lists the Dell S5048F-ON system hardware requirements: 1/10/25/40/50/100 Gb E switch Forty-ei...
Page 3
Restrictions After you upgrade Dell Networking OS to 9.14(1.12) from an earlier version and update the BIOS using the booted option, the system does not allow you to downgrade the BIOS to an earlier v...
Page 4
ra-guard ra-lifetime reachable-time retrans-timer suppress-ra When FRRP is enabled in a VLT domain, no flavor of Spanning tree should concurrently be enabled on the nodes of that specific VLT domain. ...
Page 5
Category Description Issues listed in the “Fixed Issues” section should not be present, and the work-around is unnecessary, as the version of code for which this release note is documented has resolve...
Page 6
Severity: Sev 2 Synopsis: AAA accounting request displays an incorrect calling station-id. Release Notes: AAA accounting request displays an incorrect calling station-id. Workaround: None PR#170255 Se...
Page 7
Known S5048F–ON 9.14(1.12) Software Issues The following issues are open in Dell Networking OS version 9.14(1.12): None Upgrading the ONIE Package for the S5048F-ON System To upgrade the ONIE package,...
Page 8
Use the ^ and v keys to select which entry is highlighted. Press enter to boot the selected OS, `e' to edit the commands before booting or `c' for a command-line. 4. From this menu, choose the ONIE : ...
Page 9
Verifying image checksum ... OK. Preparing image archive ... OK. ONIE: Version : 3.38.1.1-3 ONIE: Architecture : x86_64 ONIE: Machine : dellemc_s5000_c2538 ONIE: Machine Rev : 0 ONIE: Config Version: ...
Page 10
Built by root at gbbdev-maa-01 on Thu_Mar_24_10:07:52_UTC_2022 S5048F Boot Flash Label 3.38.2.6 Net Boot Label 3.38.2.6 2. At this prompt message, press the Esc key. The following menu appears: GNU Gr...
Page 11
Starting: discover... done. Please press Enter to activate this console. Info: eth0: Checking link... up. Info: Trying DHCPv4 on interface: eth0 To check the install status inspect /var/log/onie.log. ...
Page 12
Writing superblocks and filesystem accounting information: done Created filesystem on /dev/sda3 with label EDA-DIAG Mounted /dev/sda3 on /tmp/tmp.PBDdo U Preparing /dev/sda3 EDA-DIAG for rootfs instal...
Page 13
Installing Dell Networking OS on the S5048F-ON using ONIE NOTE: You will need the Dell Networking OS installer package, ONIE-FTOS-S5048F-ON-9.14.1.12.bin to install the Dell Networking OS on your S504...
Page 14
The ONIE Installer mode is enabled and the ONIE prompt appears, as shown: ONIE: OS Install Mode ... Version : 3.38.1.1-3 Build Date: 2022-03-24T09:57-0700 Info: Mounting kernel filesystems... done. In...
Page 15
MAC Address is Configured Image Platform : FTOS-S5048F-ON Deleting Extra partitions... Done. Creating New partitions... Done. Creating Hybrid MBR... Done. Mouting /dev/sda4,/dev/sda5 and /dev/sda6... ...
Page 16
POST Upper DRAM Memory test ................. PASS POST PCI test ............................... PASS POST NVRAM check ............................ PASS POST overall test results ................... P...
Page 17
S5048F-ON CPLD 2 : 1.0 S5048F-ON CPLD 3 : 1.0 S5048F-ON CPLD 4 : 1.0 S5048F-ON MSS FPGA : 0.1 S5048F-ON MSS IAP : 1.4 S5048F-ON OOB-FPGA : 1.0 To view the CPLD version that is associated with the Dell...
Page 18
Card Device Name Current Version New Version Unit1 S5048F-ON CPLD 1 1.0 1.0 Unit1 S5048F-ON CPLD 2 1.0 1.0 Unit1 S5048F-ON CPLD 3 1.0 1.0 Unit1 S5048F-ON CPLD 4 1.0 1.0 * Warning - Upgrading FPGA is i...
Page 19
Upgrading the Smart Fusion Microcontroller Subsystem — SMF MSS-IAP To upgrade the Smart Fusion Microcontroller Subsystem — SMF MSS-IAP, follow these steps. 1. Shut down all of the interfaces on the sy...
Page 20
S5048F-ON OOB-FPGA : 1.0 Dell EMC# NOTE: Do not power off the system while the FPGA upgrade is in progress. For any queries, contact Technical Support. Upgrading the Smart Fusion Microcontroller Subsy...
Page 21
EXEC Privilege Mode show revision Dell EMC#show revision -- Stack unit 1 -- S5048F-ON CPLD 1 : 1.0 S5048F-ON CPLD 2 : 1.0 S5048F-ON CPLD 3 : 1.0 S5048F-ON CPLD 4 : 1.0 S5048F-ON MSS FPGA : 0.1 S5048F-...
Page 22
Upgrading the S5048F-ON Dell Networking OS Image using Dell Networking OS CLI Bare Metal Provisioning NOTE: If you are using Bare Metal Provisioning (BMP), see the Bare Metal Provisioning topic in the...
Page 23
EXEC PRIVILEGE Dell EMC#write memory Mar 24 18:58:59: %STKUNIT1-M:CP %FILEMGR-5-FILESAVED: Copied running-config to startup-config in flash by default Dell EMC# 6. Reload the unit reload EXEC PRIVILEG...
Page 24
* Warning - Upgrading boot selectors is inherently risky and should * * only be attempted when necessary. A failure at this upgrade may * * cause a board RMA. Proceed with caution ! * Proceed upgrade ...
Page 25
4. Upgrade the Dell Networking OS GRUB. EXEC Privilege Mode upgrade boot bootflash-image stack-unit <stack–unit–id> booted Dell EMC#upgrade boot bootflash-image stack-unit 1 booted Current Boot ...
Page 26
-- Fan Status -- Unit Bay Tray Status Fan1 Speed Fan2 Speed 1 1 up up 21487 up 22215 1 2 up up 21254 up 22090 1 3 up up 21487 up 22090 1 4 up up 21254 up 21605 Speed in RPM Uninstalling the Dell Netwo...
Page 27
4. From this menu, choose the ONIE : Uninstall OS option. NOTE: To choose an option from the menu, highlight one of the options using the up or down arrow key and press Enter. The uninstall process be...
Page 28
CPGC Memtest ................................ PASS POST: RTC Battery OK at last cold boot RTC date 03/24/2022 13:39:09 POST SPD test ............................... PASS POST Lower DRAM Memory test .....
Page 29
Contacting Dell Technologies NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell Technologies product catalog...
