Dell P2314H Monitor Statement of Volatility
Summary
The Dell P2314H Statement of Volatility document details volatile and non-volatile memory components on the monitor system board. Non-volatile components include System EEPROM for settings, VGA/DVI EDID EEPROMs, and Flash ROM for firmware. All other components are volatile and lose data when power is removed. Primary power loss destroys DDR3 memory data, while secondary power loss from coin-cell battery removal destroys system configuration. Intended for service technicians and security professionals.

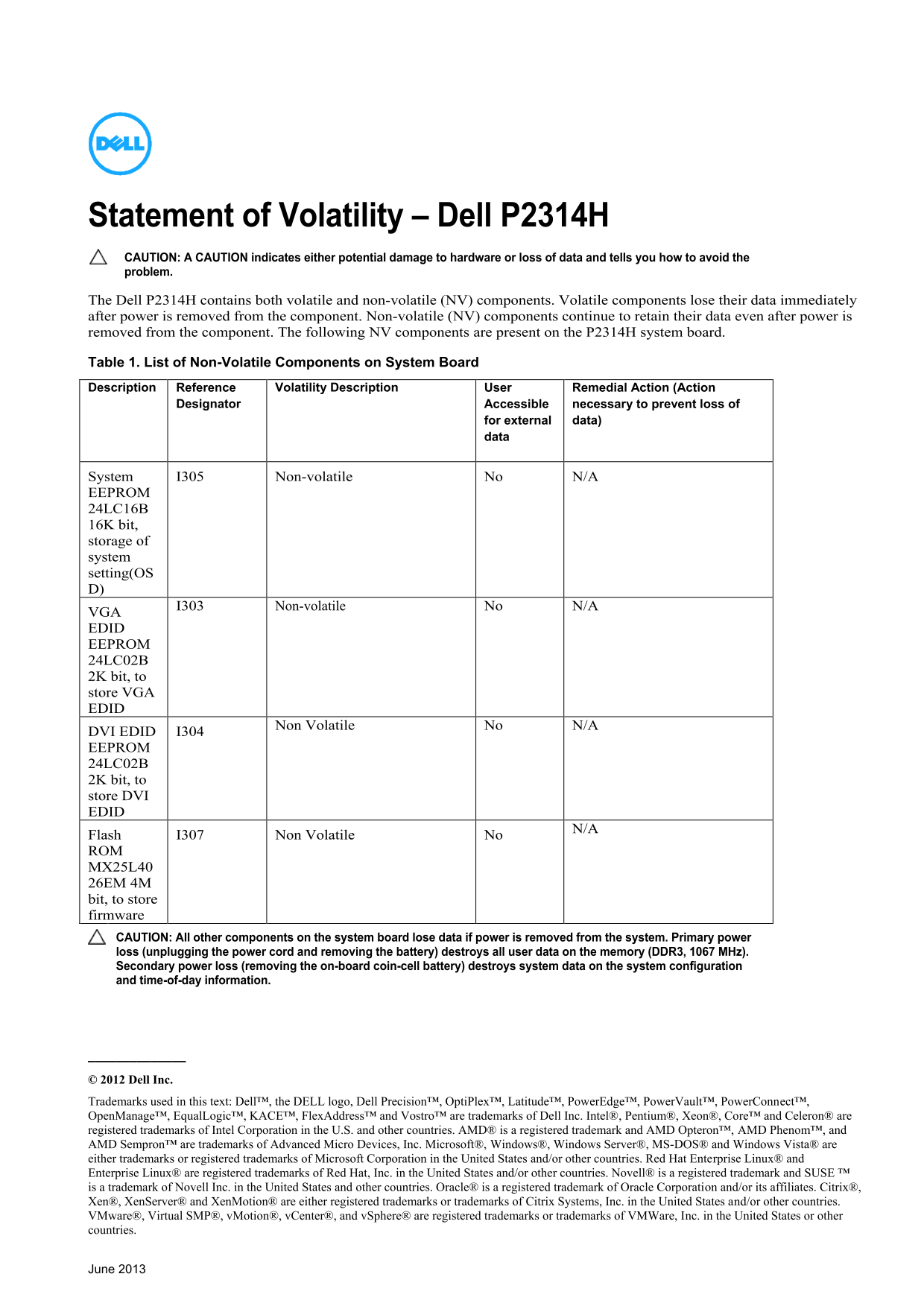

Page 1 Text Content
Statement of Volatility – Dell P2314H CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell P2314H contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the P2314H system board. Table 1. List of Non-Volatile Components on System Board Description Reference Volatility Description User Remedial Action (Action
Designator Accessible necessary to prevent loss of
for external data)
System I305 Non-volatile No N/A EEPROM 24LC16B 16K bit, storage of system setting(OS D)
I303 Non-volatile No N/A
VGA EDID EEPROM 24LC02B 2K bit, to store VGA EDID DVI EDID I304 Non Volatile No N/A EEPROM 24LC02B 2K bit, to store DVI EDID Flash I307 Non Volatile No N/A ROM MX25L40 26EM 4M bit, to store firmware CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord and removing the battery) destroys all user data on the memory (DDR3, 1067 MHz). Secondary power loss (removing the on-board coin-cell battery) destroys system data on the system configuration and time-of-day information.
© 2012 Dell Inc. Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Opti Plex™, Latitude™, Power Edge™, Power Vault™, Power Connect™, Open Manage™, Equal Logic™, KACE™, Flex Address™ and Vostro™ are trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™ and Celeron® are registered trademarks of Intel Corporation in the U.S. and other countries. AMD® is a registered trademark and AMD Opteron™, AMD Phenom™, and AMD Sempron™ are trademarks of Advanced Micro Devices, Inc. Microsoft®, Windows®, Windows Server®, MS-DOS® and Windows Vista® are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat Enterprise Linux® and Enterprise Linux® are registered trademarks of Red Hat, Inc. in the United States and/or other countries. Novell® is a registered trademark and SUSE ™ is a trademark of Novell Inc. in the United States and other countries. Oracle® is a registered trademark of Oracle Corporation and/or its affiliates. Citrix®, Xen®, Xen Server® and Xen Motion® are either registered trademarks or trademarks of Citrix Systems, Inc. in the United States and/or other countries. VMware®, Virtual SMP®, v Motion®, v Center®, and v Sphere® are registered trademarks or trademarks of VMWare, Inc. in the United States or other countries.
June 2013
Page Summary Contents For Dell P2314H Monitor Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 225.34 KB |
| Published | June 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What happens to data if I unplug the power cord?
Primary power loss destroys all user data on the memory (DDR3).
How does removing the coin-cell battery affect my system data?
Secondary power loss from removing the on-board coin-cell battery destroys system configuration and time-of-day information.
Which components retain data when power is lost?
The P2314H has non-volatile (NV) components, such as EEPROM and Flash ROM, which retain their data.
