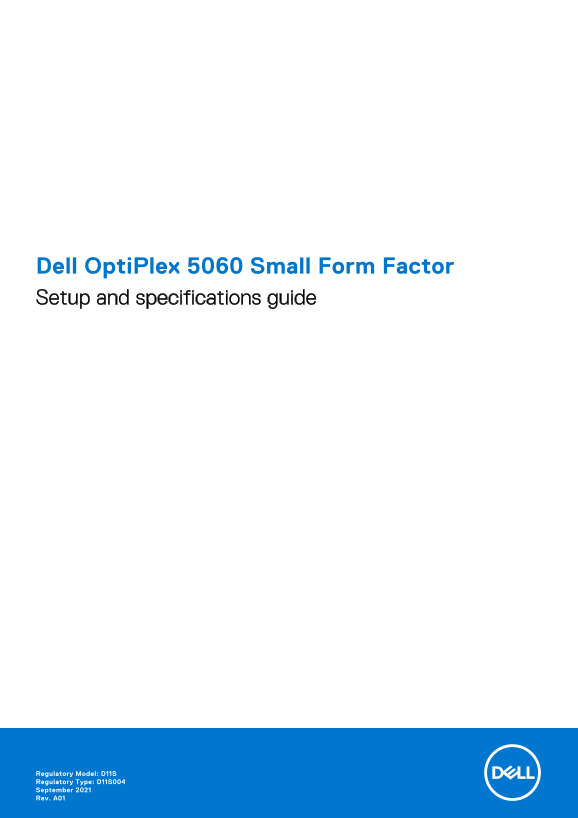

Dell Opti Plex 5060 Small Form Factor Setup and specifications guide
Regulatory Model: D11S Regulatory Type: D11S004 September 2021 Rev. A01
Page Summary Contents For Dell OptiPlex 5060 Small Form Factor Setup Guide and Specifications Manual
Page 1
Dell Opti Plex 5060 Small Form Factor Setup and specifications guide Regulatory Model: D11S Regulatory Type: D11S004 September 2021 Rev. A01
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your computer...................................................................................................5 Chapter 2: Chassis............................................
Page 4
Updating the BIOS in Windows................................................................................................................................26 Updating the BIOS in Linux and Ubuntu.......
Page 5
Set up your computer 1. Connect the keyboard and mouse. 2. Connect to your network using a cable, or connect to a wireless network. 3. Connect the display. Set up your computer
Page 6
NOTE: If you ordered your computer with a discrete graphics card, the HDMI and the display ports on the back panel of your computer are covered. Connect the display to the discrete graphics card. 4. C...
Page 7
a. Connect to a network. b. Sign-in to your Microsoft account or create a new account. 7. Locate Dell apps. Table 1. Locate Dell apps Dell Apps Description Register your computer Dell Help & Suppo...
Page 8
Chassis This chapter illustrates the multiple chassis views along with the ports and connectors and also explains the FN hot key combinations. Topics: Front view Back view Front view 1. Optical drive ...
Page 9
Back view 1. Line-out port 2. Serial Port (optional) 3. Display Port/HDMI 2.0b/VGA/USB Type-C Alt-Mode 4. Display Ports (2) (optional) 5. Service tag 6. USB 3.1 Gen 1 ports (4) 7. USB 2.0 ports (2) (s...
Page 10
System specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of your c...
Page 11
Table 2. Processor specifications (continued) Type UMA Graphics Intel Core i5-8500 (6 Cores/9MB/6T/up to 4.1GHz/65W); Intel UHD Graphics 630 supports Windows 10/Linux Intel Core i5-8600 (6 Cores/9MB/6...
Page 12
Table 4. Storage specifications (continued) Type Form factor Interface Capacity PCIe NVMe Class 40 Self Encrypting Opal 2.0 Solid State Drive Class 20 Self Encrypting Opal 2.0 Solid State Drive One 3....
Page 13
Audio Table 7. Audio specifications Detail Specification Controller Realtek ALC3234 Type Integrated Speakers Internal speaker (mono) Interface Headset port/Universal audio jack port (Front) Lineout po...
Page 14
Table 8. Video (continued) Controller Type CPU Dependency Gr Capacity External Number of Maximum ap display display resolution hic support supported me mo ry typ 4096x2160@60 Hz Communications Table 9...
Page 15
System board connectors Table 11. System board connectors M.2 Connectors 1 - 2230/2280 (Support SATA & PCIe interface) M.2 Connectors 1 - 2230 (keyed to support Integrated or Discrete Wi Fi, Suppo...
Page 16
Security Table 16. Security Security Types Tower/ Small form factor/ Micro Trusted Platform Module (TPM) Integrated on system board 2.01,2 Firmware TPM Optional Windows Hello support Optional via secu...
Page 17
BIOS setup CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain changes can make your computer work incorrectly. NOTE: Depending on the comput...
Page 18
Table 18. Navigation keys (continued) Keys Navigation Down arrow Moves to the next field. Enter Selects a value in the selected field (if applicable) or follow the link in the field. Spacebar Expands ...
Page 19
Table 19. General (continued) Option Description Boot Sequence Allows you to specify the order in which the computer attempts to find an operating system from the devices specified in this list. Advan...
Page 20
Table 20. System Configuration (continued) Option Description Enable Front USB Ports Enable Rear USB Ports All the options are enabled by default. Front USB Configuration Allows you to enable or disab...
Page 21
Table 22. Security (continued) Option Description Internal HDD-0 Password Allows you to set, change, and delete the computer’s internal HDD. Strong Password This option lets you enable or disable stro...
Page 22
Table 22. Security (continued) Option Description SMM Security Mitigation Allows you to enable or disable additional UEFI SMM Security Mitigation protections. This option is not set by default. Secure...
Page 23
Performance Table 25. Performance Option Description Multi Core Support This field specifies whether the process has one or all cores enabled. The performance of some applications improves with the ad...
Page 24
Table 26. Power Management (continued) Option Description Enabled in S5 only Enabled in S4 and S5 Disabled (by default). Fan Control Override This field determines the speed of the fan. When enabled t...
Page 25
Manageability Table 28. Manageability Option Description USB provision This option is not selected by default. MEBx Hotkey This option is selected by default. Virtualization support Table 29. Virtuali...
Page 26
Table 31. Maintenance (continued) Option Description SERR Messages Controls the SERR message mechanism. This option is set by default. Some graphics cards require that the SERR message mechanism be di...
Page 27
4. Select the operating system installed on your computer. 5. In the Category drop-down list, select BIOS. 6. Select the latest version of BIOS, and click Download to download the BIOS file for your c...
Page 28
AC power adapter that is connected to the computer Functional computer battery to flash the BIOS Perform the following steps to perform the BIOS update flash process from the F12 menu: CAUTION: Do not...
Page 29
Deleting or changing an existing system setup password Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and/or Setup password...
Page 30
Software This chapter details the supported operating systems along with instructions on how to install the drivers. Topics: Supported operating systems Downloading drivers Network adapter drivers Aud...
Page 31
Audio drivers Verify if the audio drivers are already installed in the computer. Display adapter Verify if the display adapter drivers are already installed in the system. Security drivers Verify if t...
Page 32
Other device drivers Verify if the following drivers are already installed in the system. UCM Client Software
Page 33
Universal Serial Bus Controller Software components Ports (COM and LPT) Mice and other pointing devices Firmware Software
Page 34
Getting help Topics: Contacting Dell Contacting Dell NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell prod...
