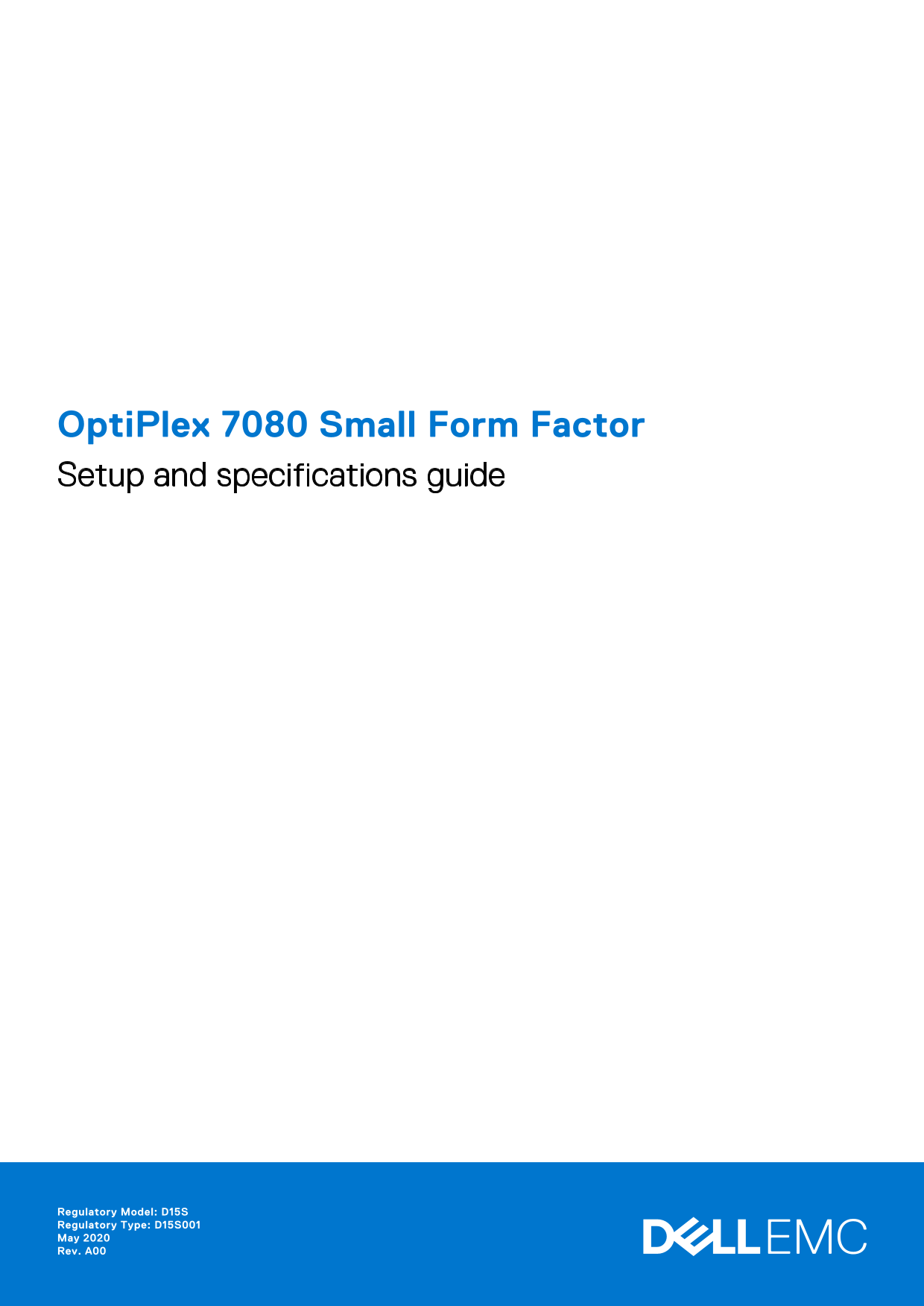

Opti Plex 7080 Small Form Factor Setup and specifications guide
Regulatory Model: D15S Regulatory Type: D15S001 May 2020 Rev. A00
Page Summary Contents For Dell OptiPlex 7080 Small Form Factor Setup Guide and Specifications Manual, Owners' Manual - Setup Instructions & User Documentation
Page 1
Opti Plex 7080 Small Form Factor Setup and specifications guide Regulatory Model: D15S Regulatory Type: D15S001 May 2020 Rev. A00
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your computer...................................................................................................5 Chapter 2: Chassis............................................
Page 4
Post behavior............................................................................................................................................................... Virtualization support........
Page 5
Set up your computer Steps 1. Connect the keyboard and mouse. 2. Connect to your network using a cable, or connect to a wireless network. Set up your computer
Page 6
3. Connect the display. 4. Connect the power cable. Set up your computer
Page 7
5. Press the power button. Set up your computer
Page 8
6. Finish Windows system setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: Connect to a network for Windows updates. NOTE: If connecting to a s...
Page 9
Table 1. Locate Dell apps (continued) Dell apps Details Support Assist Proactively checks the health of your computer’s hardware and software. NOTE: Renew or upgrade your warranty by clicking the warr...
Page 10
Chassis This chapter illustrates the multiple chassis views along with the ports and connectors and also explains the FN hot key combinations. Topics: Front view Back view Small Form Factor System boa...
Page 11
Back view 1. Audio Line-in/out port retasking 2. Two Display Port 1.4 ports 3. Serial Port 4. PS/2 port for keyboard 5. USB 3.2 Gen 2 Type-A port 6. USB 2.0 ports with Power On 7. PCIe Gen 3 slot 8. P...
Page 12
Small Form Factor System board layout 1. Video connector 2. Intrusion switch connector (Intruder) 3. CPU power connector (ATX_CPU) 4. CPU fan connector 5. Memory slots (DIMM1, DIMM2, DIMM3, DIMM4) 6. ...
Page 13
Technical specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of you...
Page 14
Processors Table 3. Processors Processors Wattage Core Thre Speed Cache Integrated graphics GSP DG/CG count ad Ready cou nt No Yes 10th 65 W 3.6 GHz to 6 MB Intel UHD Graphics Generation 4.3 GHz Intel...
Page 15
Table 4. Chipset (continued) Description Values BIOS Configuration Serial Peripheral Interface (SPI) 256 Mbit (32 MB) located at SPI_FLASH on chipset Trusted Platform Module (Discrete TPM Enabled) 24 ...
Page 16
Table 5. Memory specifications (continued) Description Values Configurations supported 4 GB, 1 x 4 GB, 2666 MHz for Intel Core i3/i5 processors, 2933 MHz for Intel Core i7/i9 processors 8 GB, 1 x 8 GB...
Page 17
Ports and connectors Table 7. Ports and connectors Description Values External: Network One RJ-45 port 10/100/1000 Mbps (rear) One USB 2.0 port with Power Share (front) One USB 3.2 Gen 1 port (front) ...
Page 18
Wireless module Table 9. Wireless module specifications Description Values Model number Qualcomm QCA61x4a Intel Wi-Fi 6 AX201 Qualcomm QCA9377 Transfer rate Up to 867 Mbps Up to 2.4 Gbps Up to 867 Mbp...
Page 19
Table 12. Audio and speaker specifications (continued) Description Values External interface One Universal Audio Jack (front) One Line-out audio port with re-tasking to Line-in(rear) Speakers One (opt...
Page 20
Table 13. Storage specifications (continued) Storage type Interface type Capacity M.2 2280 solid-state drive PCIe 3 Gen x4 NVMe, Class 40 Up to 2 TB M.2 2280 Opal Self-Encrypting solid-state drive PCI...
Page 21
Security Table 16. Security Security options Opti Plex 7080 Small Form Factor Kensington security-cable slot Supported Padlock loop Supported Lockable port cover Supported Chassis lock slot support Su...
Page 22
Table 18. Energy Star and TPM (continued) Features Specifications Trusted Platform Module (TPM) 2.01,2 Integrated on system board Discrete TPM Onboard EPEAT Gold and Silver compliant configurations av...
Page 23
Software This chapter details the supported operating systems along with instructions on how to install the drivers. Topics: Downloading Windows drivers Downloading Windows drivers Steps 1. Turn on th...
Page 24
System setup CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain changes can make your computer work incorrectly. NOTE: Before you change BIO...
Page 25
Keys Navigation Spacebar Expands or collapses a drop-down list, if applicable. Tab Moves to the next focus area. Esc Moves to the previous page until you view the main screen. Pressing Esc in the main...
Page 26
System information Table 21. System Configuration Option Description Integrated NIC Allows you to control the onboard LAN controller. The option ‘Enable UEFI Network Stack’ is not selected by default....
Page 27
Table 22. Video Option Description Auto (default) Intel HD Graphics NOTE: If you do not select Auto, the on-board graphics device will be present and enabled. Security Table 23. Security Option Descri...
Page 28
Table 23. Security (continued) Option Description Permanently Disabled Chassis Intrusion This field controls the chassis intrusion feature. Choose any one of the options: Disabled (default) Enabled On...
Page 29
Intel Software Guard Extensions options Table 25. Intel Software Guard Extensions Option Description Intel SGX Enable This field specifies you to provide a secured environment for running code/storing...
Page 30
Power management Table 27. Power Management Option Description AC Recovery Determines how the system responds when AC power is re-applied after a power loss. You can set the AC Recovery to: Power Off ...
Page 31
Table 28. POST Behavior (continued) Option Description Minimal — The system boots quickly, unless the BIOS has been updated, memory changed, or the previous POST did not complete. Thorough — The syste...
Page 32
Maintenance Table 31. Maintenance Option Description Service Tag Displays the service tag of your computer. Asset Tag Allows you to create a system asset tag if an asset tag is not already set. This o...
Page 33
Support Assist System Resolution Option Description Auto OS Allows you to control the automatic boot flow for Support Assist System. Options are: Recovery Off Threshold 2 (Enabled by default) Support ...
Page 34
system will ask for this on each reboot. If the recovery key is not known this can result in data loss or an unnecessary operating system re-install. For more information on this subject, see Knowledg...
Page 35
5. Select the file and double-click the flash target file, and then click Submit. 6. Click Update BIOS. The computer restarts to flash the BIOS. 7. The computer will restart after the BIOS update is c...
Page 36
About this task To enter the System Setup, press F12 immediately after a power-on or reboot. Steps 1. In the System BIOS or System Setup screen, select System Security and press Enter. The System Secu...
Page 37
Getting help Topics: Contacting Dell Contacting Dell Prerequisites NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill...
