Dell Opti Plex 7070 Small Form Factor Setup and Specifications
Regulatory Model: D11S Regulatory Type: D11S004 September 2021 Rev. A02
Page Summary Contents For Dell OptiPlex 7070 Small Form Factor Setup Guide and Specifications
Page 1

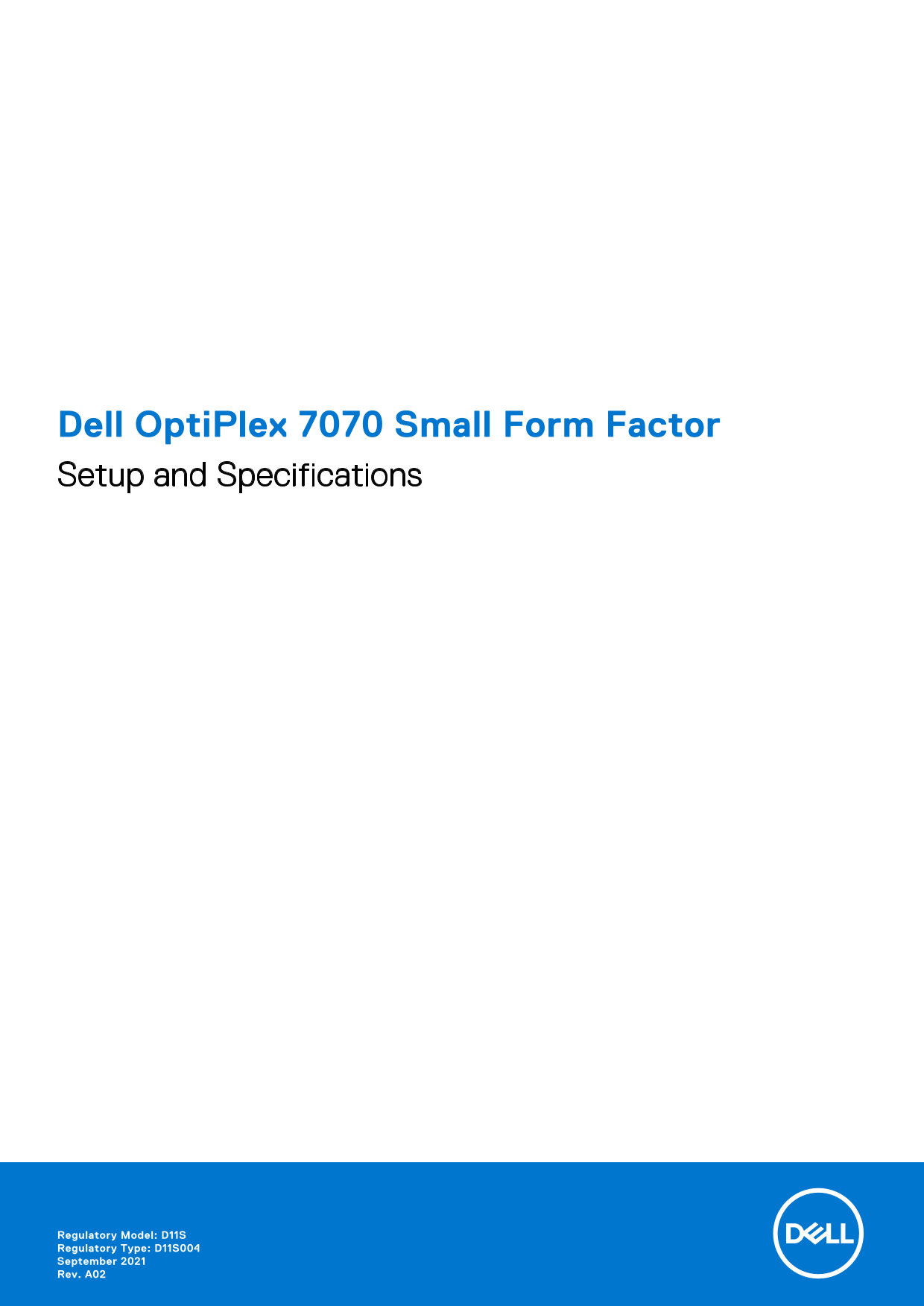

Dell Opti Plex 7070 Small Form Factor Setup and Specifications Regulatory Model: D11S Regulatory Type: D11S004 September 2021 Rev. A02
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your computer...................................................................................................5 Chapter 2: Chassis............................................
Page 4
Updating the BIOS............................................................................................................................................................ Updating the BIOS in Windo...
Page 5
Set up your computer 1. Connect the keyboard and mouse. 2. Connect to your network using a cable, or connect to a wireless network. 3. Connect the display. Set up your computer
Page 6
NOTE: If you ordered your computer with a discrete graphics card, the HDMI and the display ports on the back panel of your computer are covered. Connect the display to the discrete graphics card. 4. C...
Page 7
b. Sign-in to your Microsoft account or create a new account. 7. Locate Dell apps. Table 1. Locate Dell apps Register your computer Dell Help & Support Support Assist — Check and update your compu...
Page 8
Chassis This chapter illustrates the multiple chassis views along with the ports and connectors and also explains the FN hot key combinations. Topics: Front view Back view Front view 1. Optical drive ...
Page 9
Back view 1. Line-out audio port 2. PS2 Port (Keyboard) 3. Serial port 4. PS2 Port (Mouse) 5. Display Port/HDMI 2.0b/VGA/USB Type-C Alt-Mode 6. Display Ports (2) (optional) 7. Service tag label 8. USB...
Page 10
System specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of your c...
Page 11
Table 2. Processor (continued) Intel Core i5-8600 (6 Core/ 9 MB/ 6T/ up to 4.3 GHz/ 65 W) Intel Core i7-8700 (6 Core/12 MB/ 12T/ up to 4.6 GHz/ 65 W) Chipset Table 3. Chipset specifications Type Intel...
Page 12
Table 5. Storage specifications (continued) Type Form factor Interface Capacity PCIe 3 x4 NVME, Up to 32 Gbps Hard drive (HDD) 2.5 and 3.5 inch SATA AHCI, Up to 6 Gbps Up to 2 TB at 5400/7200 Self-enc...
Page 13
Video Table 8. Video Controller Type CPU Dependency Graphics Capacity External Maximum memory display resolution type support 8th Generation Intel Core Intel UHD UMA Integrated Shared Display Port VGA...
Page 14
Table 10. Ports and connectors (continued) Two USB 2.0 ports (one supports Smart Power On) (rear) Security Kensington security cable slot Audio One headset port/Universal audio jack (front) One line-o...
Page 15
Table 13. Power supply (continued) 200W Bronze Wattage 200W Platinum Physical specifications Table 14. Physical system dimensions Chassis volume (liters) 7.8 Chassis weight (pounds / kilograms) 11.57/...
Page 16
Table 17. Regulatory/Environmental Certifications (continued) Tower SFF Micro California Energy Commission (CEC) MEPs - Internal PSU Requirements Yes Yes No Yes Yes Yes Br/CL Reduction: Plastic parts ...
Page 17
BIOS setup CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain changes can make your computer work incorrectly. NOTE: Depending on the comput...
Page 18
Table 18. Navigation keys (continued) Keys Navigation Down arrow Moves to the next field. Enter Selects a value in the selected field (if applicable) or follow the link in the field. Spacebar Expands ...
Page 19
General options Table 19. General Option Description System Information Displays the following information: System Information: Displays BIOS Version, Service Tag, Asset Tag, Ownership Tag, Ownership ...
Page 20
Table 20. System Configuration (continued) Option Description COM3 COM4 SATA Operation Allows you to configure the operating mode of the integrated hard drive controller. Disabled = The SATA controlle...
Page 21
Video screen options Table 21. Video Option Description Primary Display Allows you to select the primary display when multiple controllers are available in the system. Auto (default) Intel HD Graphics...
Page 22
Table 22. Security (continued) Option Description Disabled Permanently Disabled Chassis Intrusion This field controls the chassis intrusion feature. Choose any one of the option: Disabled (default) En...
Page 23
Intel Software Guard Extensions options Table 24. Intel Software Guard Extensions Option Description Intel SGX Enable This field specifies you to provide a secured environment for running code/storing...
Page 24
Power management Table 26. Power Management Option Description AC Recovery Determines how the system responds when AC power is re-applied after a power loss. You can set the AC Recovery to: Power Off ...
Page 25
Table 27. POST Behavior (continued) Option Description Auto — This allows the operating system to control this setting (this works only when the operating system supports Simple Boot Flag). This optio...
Page 26
Table 30. Wireless Option Description All the options are enabled by default. Maintenance Table 31. Maintenance Option Description Service Tag Displays the service tag of your computer. Asset Tag Allo...
Page 27
Updating the BIOS Updating the BIOS in Windows CAUTION: If Bit Locker is not suspended before updating the BIOS, the next time you reboot the system it will not recognize the Bit Locker key. You will ...
Page 28
Updating the BIOS from the F12 One-Time boot menu Update your computer BIOS using the BIOS update.exe file that is copied to a FAT32 USB drive and booting from the F12 One-Time boot menu. CAUTION: If ...
Page 29
NOTE: System and setup password feature is disabled. Assigning a system setup password You can assign a new System or Admin Password only when the status is in Not Set. To enter the system setup, pres...
Page 30
Software This chapter details the supported operating systems along with instructions on how to install the drivers. Topics: Downloading Windows drivers Downloading Windows drivers 1. Turn on the . 2....
Page 31
Serial IO driver Verify if the drivers for Touchpad, IR camera, and keyboard and are installed. Software
Page 32
Figure 1. Serial IO driver Security drivers Verify if the security drivers are already installed in the system. USB drivers Verify if the USB drivers are already installed in the computer. Network ada...
Page 33
Getting help Topics: Contacting Dell Contacting Dell NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell prod...
