Dell OptiPlex 7000 Small Form Factor Setup Guide and Specifications User Manual
Summary
Setup and specifications guide for the Dell OptiPlex 7000 Small Form Factor desktop (Regulatory Model D17S, Rev. A00, 2022). Covers initial computer setup, operating system installation, driver configuration, and detailed hardware specifications including supported Intel processors, chipset, memory (up to 64 GB DDR4), storage options, expansion slots, external ports, and physical dimensions. Provides front, back, and internal views of the chassis. Targeted at end users and IT procurement teams evaluating OptiPlex 7000 SFF configurations for enterprise desktop deployments.
Page 1 Text Content

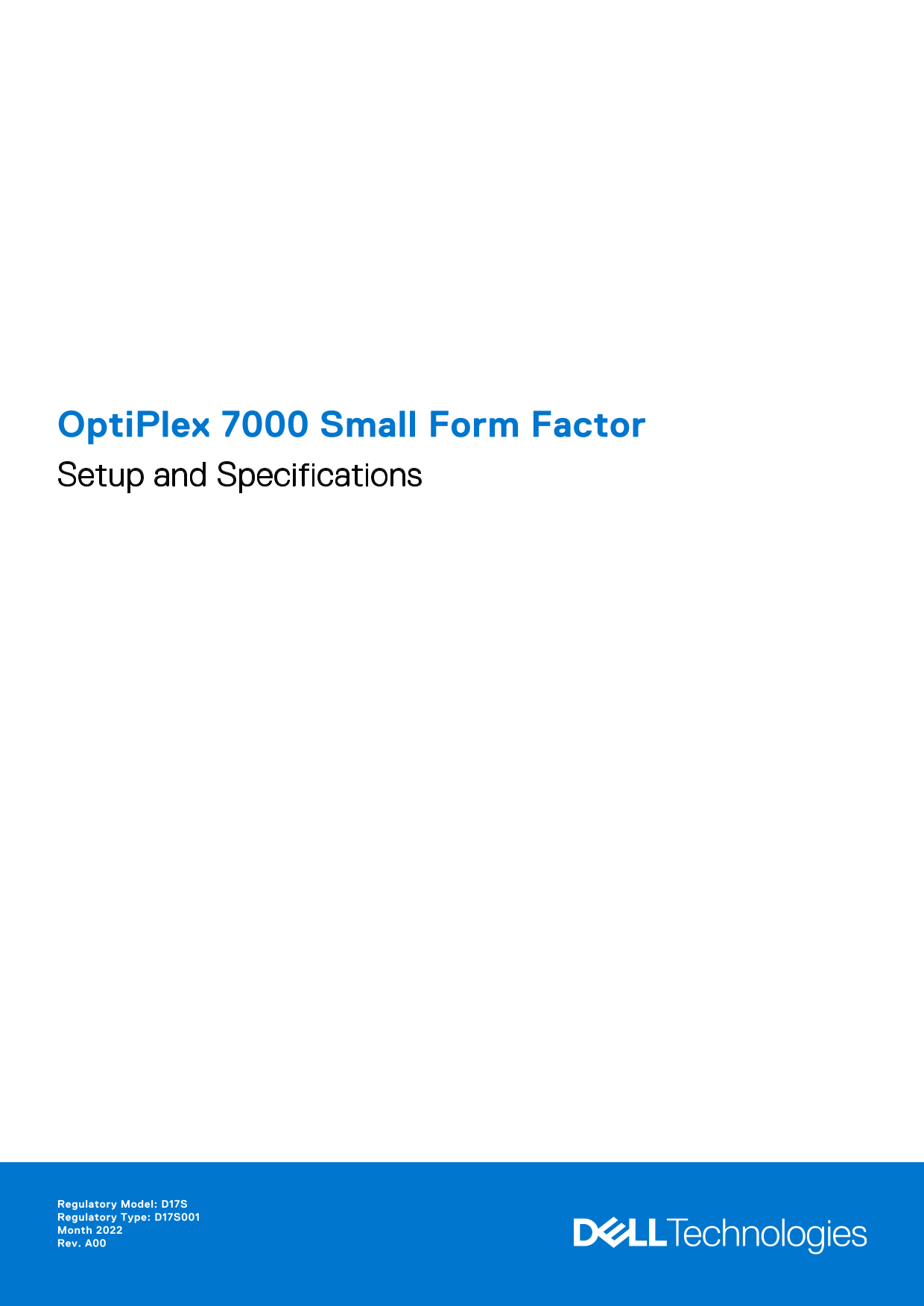

Opti Plex 7000 Small Form Factor Setup and Specifications
Regulatory Model: D17S Regulatory Type: D17S001 Month 2022 Rev. A00
Page Summary Contents For Dell OptiPlex 7000 Small Form Factor Setup Guide and Specifications User Manual
Page 1
Opti Plex 7000 Small Form Factor Setup and Specifications Regulatory Model: D17S Regulatory Type: D17S001 Month 2022 Rev. A00
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your computer................................................................................................... Chapter 2: Views of Opti Plex 7000 Small Form Factor...........
Page 4
Set up your computer 1. Connect the keyboard and mouse. 2. Connect to your network using a cable, or connect to a wireless network. Set up your computer
Page 5
3. Connect the display. 4. Connect the power cable. Set up your computer
Page 6
5. Press the power button. Set up your computer
Page 7
6. Finish operating system setup. For Ubuntu: Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, see the knowledge base articles 000...
Page 8
Table 1. Locate Dell apps (continued) Resources Description Support Assist Support Assist proactively and predictively identifies hardware and software issues on your computer and automates the engage...
Page 9
Views of Opti Plex 7000 Small Form Factor 1. Power button 2. Hard-drive activity light 3. Universal audio port 4. SD-card reader 5. USB 2.0 port with Power Share 6. USB 2.0 port 7. USB 3.2 Gen 2x2 Typ...
Page 10
1. Re-tasking line-out/line-in audio port 2. Three Display Port 1.4 ports 3. USB 3.2 Gen 2 port 4. Three USB 3.2 Gen 1 ports 5. Two USB 2.0 ports with Smart Power On 6. Two expansion card slots 7. Pow...
Page 11
Specifications of Opti Plex 7000 Small Form Factor Dimensions and weight The following table lists the height, width, depth, and weight of your Opti Plex 7000 Small Form Factor. Table 2. Dimensions an...
Page 12
Table 3. Processor (continued) Description Processor Processor Processor Processor Processor Processor Integrated type wattage core count thread count speed cache graphics Intel Core i5-12600 v Pro Op...
Page 13
Memory The following table lists the memory specifications of your Opti Plex 7000 Small Form Factor. Table 5. Memory specifications Description Values Memory slots Four UDIMM slots Memory type Dual-ch...
Page 14
Table 6. Memory matrix (continued) 64 GB DDR4 16G 16G 16G 16G 64 GB DDR4 32G 32G 128 GB 32G 32G 32G 32G DDR4 External ports The following table lists the external ports of your Opti Plex 7000 Small Fo...
Page 15
Table 8. Internal slots (continued) Description Values NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article 000144170 at www.dell.com/support. Etherne...
Page 16
Audio The following table lists the audio specifications of your Opti Plex 7000 Small Form Factor. Table 11. Audio specifications Description Values Audio type 4 Channel High Definition Audio Audio co...
Page 17
Table 12. Storage matrix (continued) Storage 1st 2.5- 2nd 2.5- 3.5-inch 1st M.2 2nd M.2 3rd M.2 1st inch inch hard socket socket socket Bootabl hard hard drive (2230/2 (2230) (2280) e Device drive dri...
Page 18
NOTE: RAID is not supported on Intel Optane configurations. RAID 0 (Striped, Performance) volumes benefit from higher performance when drives are matched because the data is split across multiple driv...
Page 19
Table 15. Power ratings (continued) Description Option one Option two Option three Output current (continuous) Operating: Operating: 12 VA/18 A 12 VA/18 A 12 VA/18 A 12 VB/18 A 12 VB/16 A 12 VB/16 A S...
Page 20
Multiple display support matrix The following table lists the multiple display support matrix for your Opti Plex 7000 Small Form Factor. Table 18. Multiple display support matrix Description Option 2 ...
Page 21
Table 20. Multiple display support matrix (continued) Graphics Card Radeon RX 640 Radeon 550 Radeon 540 Supported 5K Displays 5K tiled resolution 5K tiled resolution (5120x2880) 5K tiled resolution (5...
Page 22
Environmental The following table lists the environmental specifications of your Opti Plex 7000 Small Form Factor. Table 22. Environmental Feature Values Recyclable packaging Yes BFR/PVC—free chassis ...
Page 23
Table 24. Computer environment (continued) Description Operating Storage Relative humidity (maximum) 20% to 80% (non-condensing, Max dew 5% to 95% (non-condensing, Max dew point temperature = 26°C) po...
Page 24
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 25. Self-help resources Self-help resources R...
