Dell Latitude 5420/5420m/5520/5520m Setup & Feature Info

Summary

Setup and features guide for Dell Latitude 5420/5520 business laptop series. Provides labeled hardware diagrams, port identification, and safety warnings. Covers cameras, fingerprint readers, wireless switches, and connectivity options including VGA, HDMI, e-SATA, and USB. Target users are end users and IT deployment staff.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 10 ›
‹ Dell Latitude 5420/5420m/5520/5520m Setup & Feature Info - Page 1 ›

Page 1 Text Content

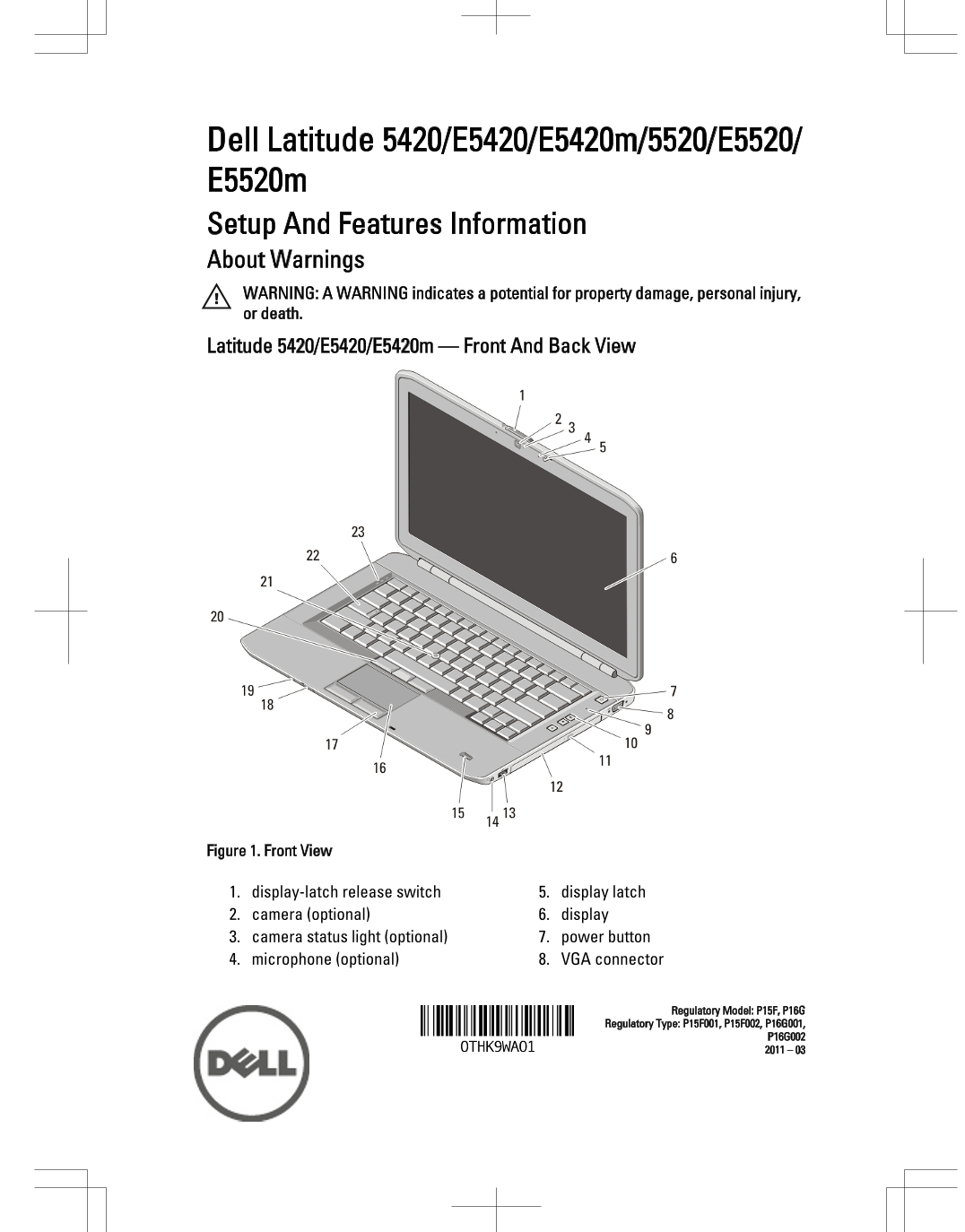

Dell Latitude 5420/E5420/E5420m/5520/E5520/ E5520m Setup And Features Information About Warnings WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Latitude 5420/E5420/E5420m — Front And Back View

Figure 1. Front View

1. display-latch release switch 5. display latch 2. camera (optional) 6. display 3. camera status light (optional) 7. power button 4. microphone (optional) 8. VGA connector

Regulatory Model: P15F, P16G

Regulatory Type: P15F001, P15F002, P16G001,
