Dell Inspiron 8500 Setup Diagram User's Guide
Summary
Dell laptop setup guide (2002-2003) covering AC adapter, modem, and network connections, wireless network configuration via Windows wireless connections icon, battery removal via latch release, and component overview including S-video TV-out, IEEE 1394, PC Card slot, track stick, and media control buttons.
Page 1 Text Content

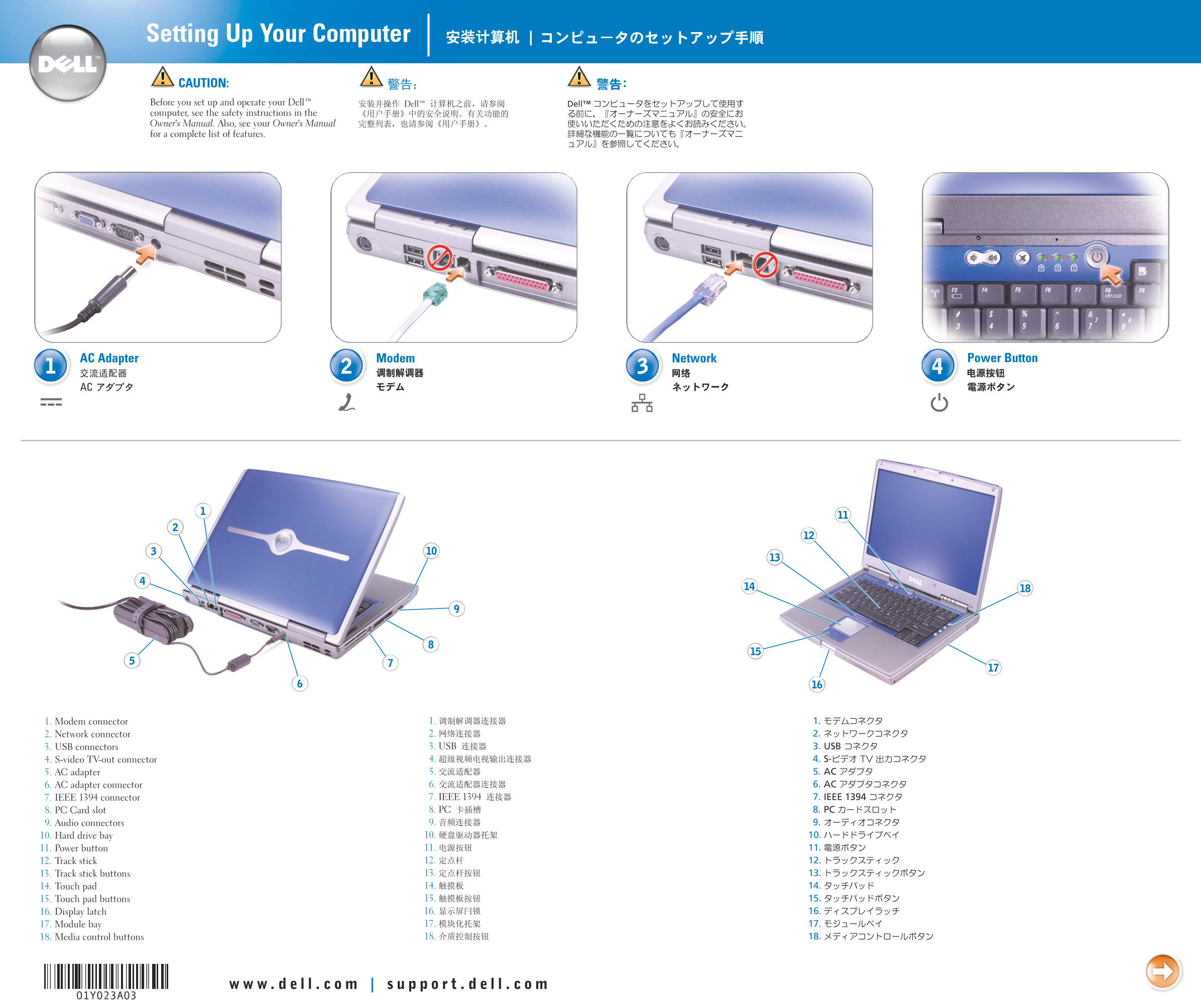

1Y023ap3.qxd 10/3/2003 12:11 PM Page 1 Fold for EMF ONLY
Setting Up Your Computer CAUTION: Before you set up and operate your Dell™ computer, see the safety instructions in the Owner's Manual. Also, see your Owner's Manual for a complete list of features.
AC Adapter Modem Network Power Button
1. Modem connector 2. Network connector 3. USB connectors 4. S-video TV-out connector 5. AC adapter 6. AC adapter connector 7. IEEE 1394 connector 8. PC Card slot 9. Audio connectors 10. Hard drive bay 11. Power button 12. Track stick 13. Track stick buttons 14. Touch pad 15. Touch pad buttons 16. Display latch 17. Module bay 18. Media control buttons
Fold for EMF ONLY
Page Summary Contents For Dell Inspiron 8500 Setup Diagram User's Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 1.51 MB |
| Published | July 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What should I review before setting up the computer?
Before setup and operation, you must see the safety instructions in the Owner's Manual.
How do I connect to a wireless network?
Right-click the wireless icon on the desktop, select View Available Wireless Networks, choose the desired network, click Allow me to connect, and then click Connect.
How can I remove the computer battery?
Slide and lift the latch release found on the bottom of the computer.
Where can I find help with using the operating system or computer features?
You can access the Tell Me How file by clicking the Start button, then Help and Support, followed by User and system guides.
