Dell Inspiron 510m Setup Diagram
Summary
A quick setup guide for Dell Inspiron laptop computers. It provides a visual overview of the computer's external features including network connector, modem, S-video TV-out, USB ports, IEEE 1394 connector, PC Card slot, infrared sensor, audio connectors, touch pad, display latch, and module bay. The guide includes brief instructions for wireless network setup, battery removal, and accessing the owner's manual. Targeted at home and small business users performing initial setup of their Dell Inspiron notebook.
Page 1 Text Content

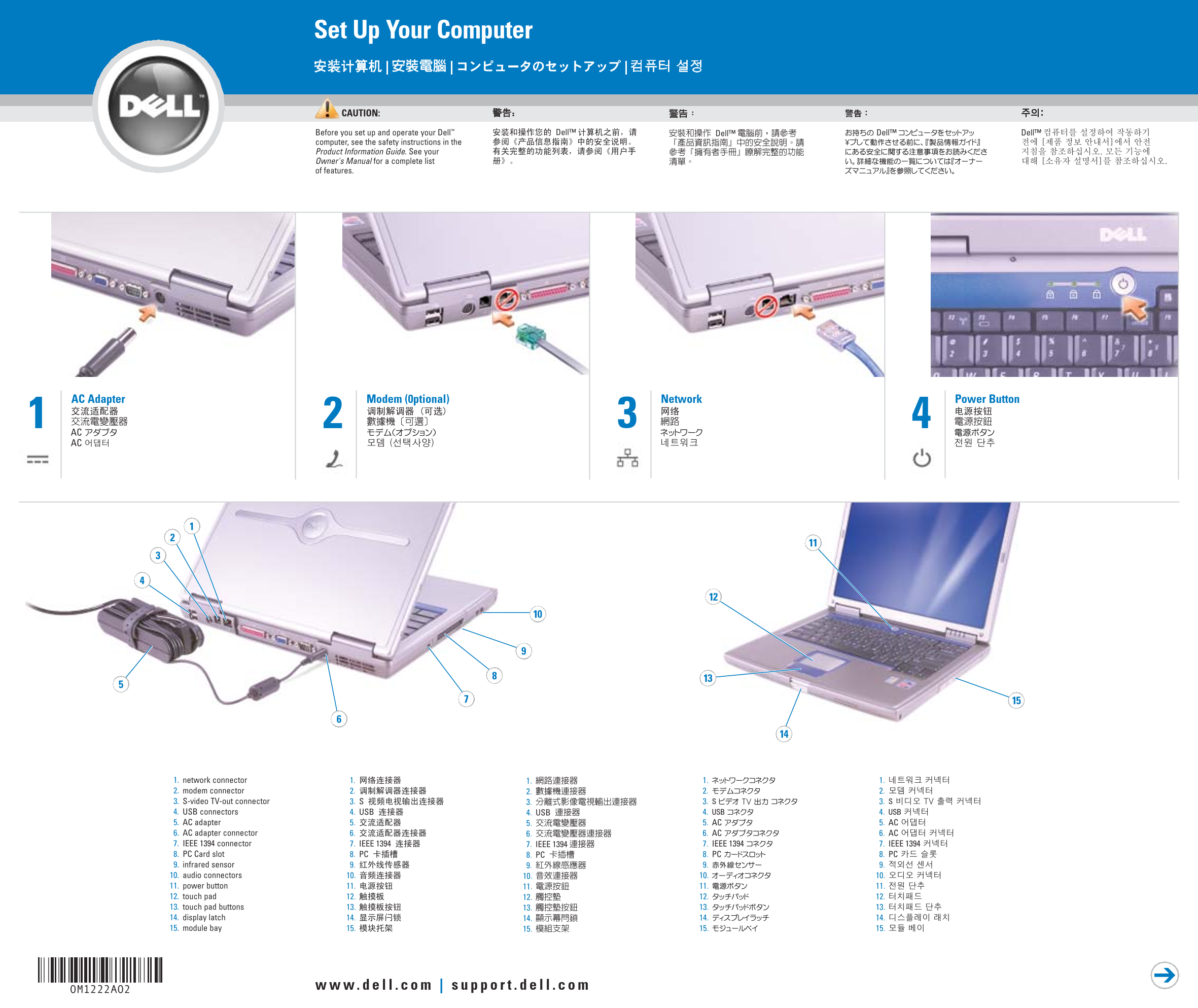

Set Up Your Computer
CAUTION:
Before you set up and operate your Dell™ computer, see the safety instructions in the Product Information Guide. See your Owner's Manual for a complete list of features.
AC Adapter Modem (0ptional) Network Power Button
1. network connector 2. modem connector 3. S-video TV-out connector 4. USB connectors 5. AC adapter 6. AC adapter connector 7. IEEE 1394 connector 8. PC Card slot 9. infrared sensor 10. audio connectors 11. power button 12. touch pad 13. touch pad buttons 14. display latch 15. module bay
Page Summary Contents For Dell Inspiron 510m Setup Diagram
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 1.42 MB |
| Published | June 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Before operating the computer, what must I check?
You must see the safety instructions provided in the Product Information Guide.
How do I connect to a wireless network?
Right-click the network connections icon, select 'View Available Wireless Networks,' choose your network, and click Connect.
Where do I find my Owner's Manual?
You can view it by double-clicking the dedicated owner's manual icon on your Windows desktop.
How is the battery removed from the computer?
To remove the battery, slide and lift the latch release located on the bottom of the computer.
