Dell Inspiron 1720 Installation Diagrams
Summary
Dell laptop setup guide (circa 2008) with multilingual wireless network configuration diagrams, component overview including S-video TV-out, USB ports, ExpressCard slot, Dell MediaDirect button, 8-in-1 media card reader, and IEEE 1394 connector.

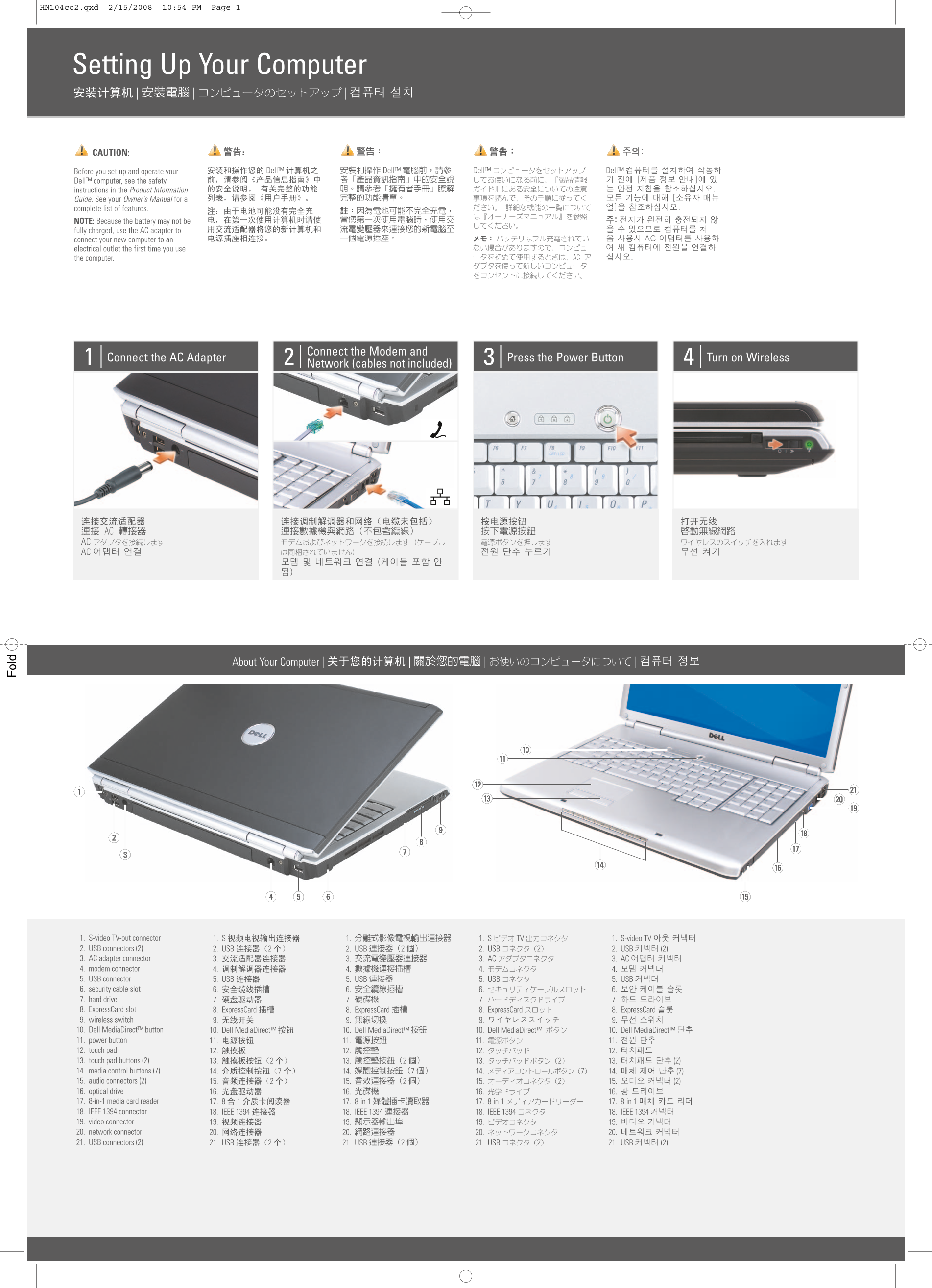

Page 1 Text Content
HN104cc2.qxd 2/15/2008 10:54 PM Page 1
Setting Up Your Computer
CAUTION:
Before you set up and operate your Dell™ computer, see the safety instructions in the Product Information Guide. See your Owner's Manual for a complete list of features. NOTE: Because the battery may not be fully charged, use the AC adapter to connect your new computer to an electrical outlet the first time you use the computer.
Connect the Modem and
Connect the AC Adapter Press the Power Button Turn on Wireless
Network (cables not included)
About Your Computer
1. S-video TV-out connector 2. USB connectors (2) 3. AC adapter connector 4. modem connector 5. USB connector 6. security cable slot 7. hard drive 8. Express Card slot 9. wireless switch 10. Dell Media Direct™ button 11. power button 12. touch pad 13. touch pad buttons (2) 14. media control buttons (7) 15. audio connectors (2) 16. optical drive 17. 8-in-1 media card reader 18. IEEE 1394 connector 19. video connector 20. network connector 21. USB connectors (2)
