Dell Inspiron 1501 Installation Diagrams
Summary
Dell Inspiron 1501 setup guide (November 2007, Rev. A02) covering AC adapter, modem and network connection, power button activation, wireless network configuration via router, and system features including ExpressCard slot, 3-in-1 media card reader, USB connectors, and optical drive.
Page 1 Text Content

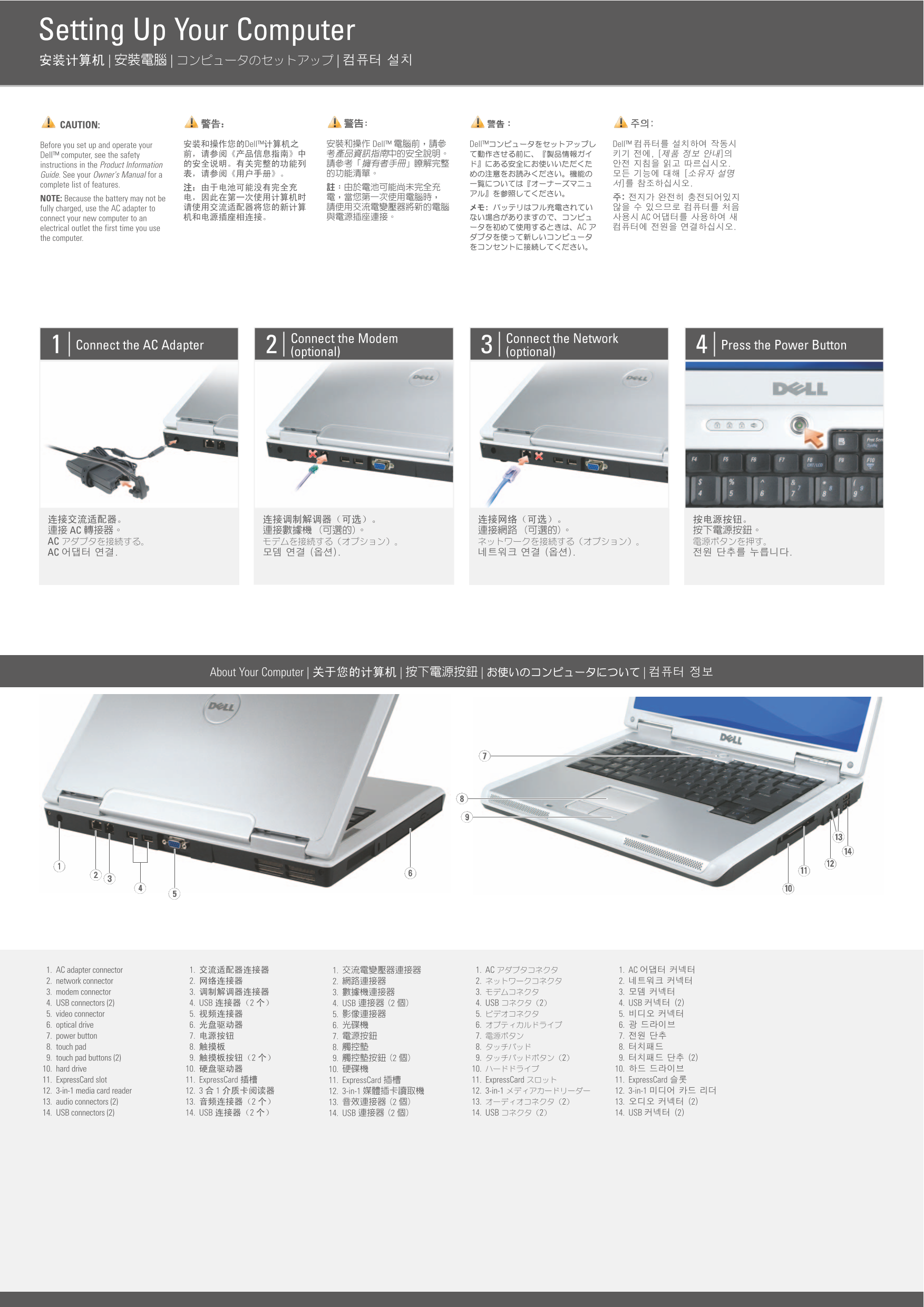

Setting Up Your Computer
CAUTION: Before you set up and operate your Dell™ computer, see the safety instructions in the Product Information Guide. See your Owner's Manual for a complete list of features. NOTE: Because the battery may not be fully charged, use the AC adapter to connect your new computer to an electrical outlet the first time you use the computer.
Connect the Modem Connect the Network
Connect the AC Adapter Press the Power Button
(optional) (optional)
1. AC adapter connector 2. network connector 3. modem connector 4. USB connectors (2) 5. video connector 6. optical drive 7. power button 8. touch pad 9. touch pad buttons (2) 10. hard drive 11. Express Card slot 12. 3-in-1 media card reader 13. audio connectors (2) 14. USB connectors (2)
Page Summary Contents For Dell Inspiron 1501 Installation Diagrams
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 1.45 MB |
| Published | July 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What should I check before setting up and operating this computer?
You must see the safety instructions provided in the Product Information Guide.
How should I connect a new Dell computer for its first use?
Because the battery may not be fully charged, you must use the AC adapter to connect it to an electrical outlet initially.
Where can I find detailed information about using my features or wireless network?
See your Owner's Manual, or visit support.dell.com by clicking the Documentation and Support icon on the desktop.
