Dell 4320 Projector SNMP Configuration Guide
Summary
This SNMP Table Test Case document for the Dell 4220 projector defines a comprehensive set of SNMP MIB object identifiers and their properties for network-based projector monitoring and management. It documents system-level MIB objects including system description, contact, name, location, and uptime under RFC1213 standards, along with Dell proprietary MIB extensions covering product name, serial number, asset tag, hardware and firmware versions, device age, power-on count, lamp-related paramete
Page 1 Text Content

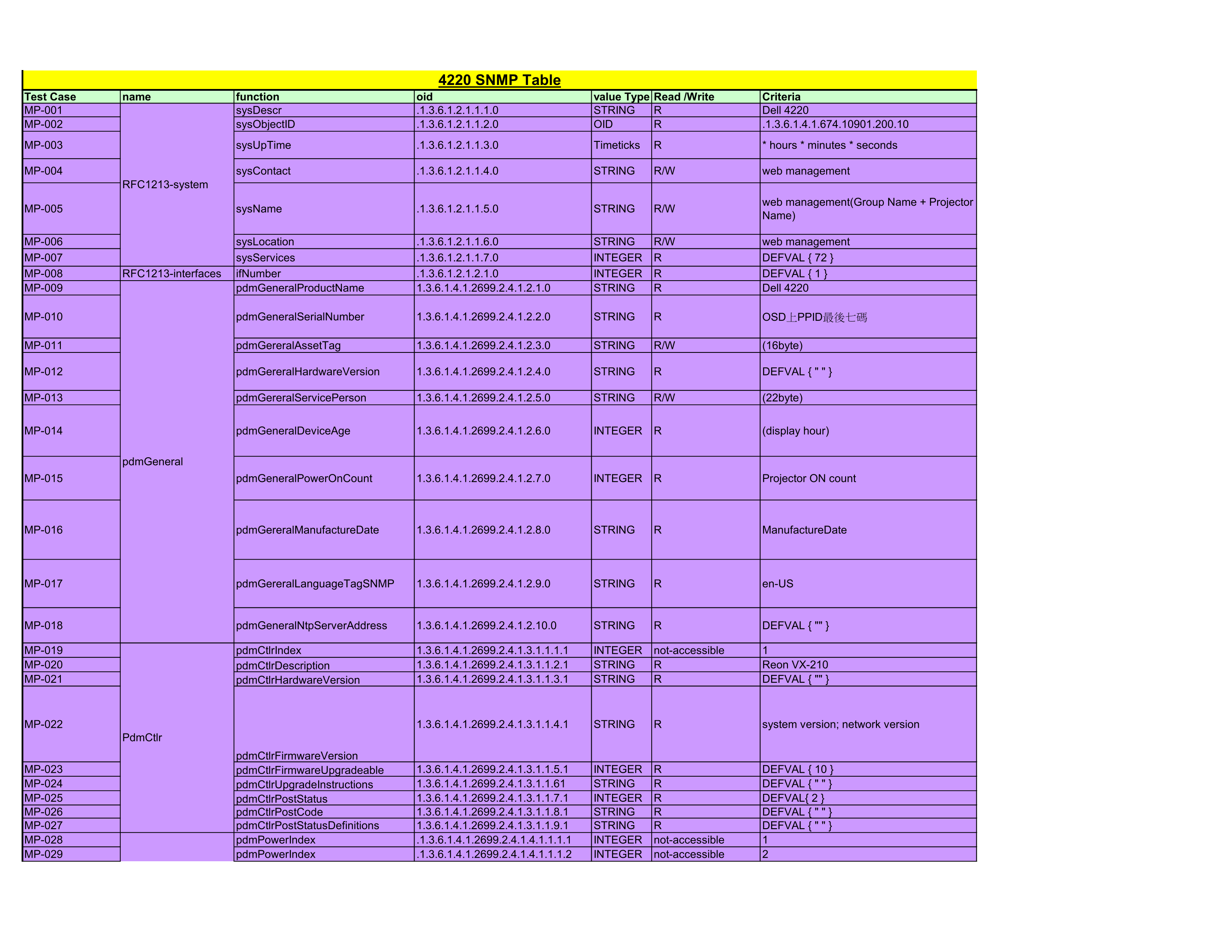

4220 SNMP Table
Test Case name function oid value Type Read /Write Criteria MP-001 sys Descr .1.3.6.1.2.1.1.1.0 STRING Dell 4220 MP-002 sys Object ID .1.3.6.1.2.1.1.2.0 OID .1.3.6.1.4.1.674.10901.200.10 MP-003 sys Up Time .1.3.6.1.2.1.1.3.0 Timeticks * hours * minutes * seconds
MP-004 sys Contact .1.3.6.1.2.1.1.4.0 STRING R/W web management
RFC1213-system
web management(Group Name + Projector
MP-005 sys Name .1.3.6.1.2.1.1.5.0 STRING R/W
Name)
MP-006 sys Location .1.3.6.1.2.1.1.6.0 STRING R/W web management MP-007 sys Services .1.3.6.1.2.1.1.7.0 INTEGER DEFVAL { 72 } MP-008 RFC1213-interfaces if Number .1.3.6.1.2.1.2.1.0 INTEGER DEFVAL { 1 } MP-009 pdm General Product Name 1.3.6.1.4.1.2699.2.4.1.2.1.0 STRING Dell 4220
MP-010 pdm General Serial Number 1.3.6.1.4.1.2699.2.4.1.2.2.0 STRING OSD上PPID最後七碼
MP-011 pdm Gereral Asset Tag 1.3.6.1.4.1.2699.2.4.1.2.3.0 STRING R/W (16byte)
MP-012 pdm Gereral Hardware Version 1.3.6.1.4.1.2699.2.4.1.2.4.0 STRING DEFVAL { " " }
MP-013 pdm Gereral Service Person 1.3.6.1.4.1.2699.2.4.1.2.5.0 STRING R/W (22byte)
MP-014 pdm General Device Age 1.3.6.1.4.1.2699.2.4.1.2.6.0 INTEGER (display hour)
pdm General
MP-015 pdm General Power On Count 1.3.6.1.4.1.2699.2.4.1.2.7.0 INTEGER Projector ON count
MP-016 pdm Gereral Manufacture Date 1.3.6.1.4.1.2699.2.4.1.2.8.0 STRING Manufacture Date
MP-017 pdm Gereral Language Tag SNMP 1.3.6.1.4.1.2699.2.4.1.2.9.0 STRING en-US
MP-018 pdm General Ntp Server Address 1.3.6.1.4.1.2699.2.4.1.2.10.0 STRING DEFVAL { "" }
MP-019 pdm Ctlr Index 1.3.6.1.4.1.2699.2.4.1.3.1.1.1.1 INTEGER not-accessible MP-020 pdm Ctlr Description 1.3.6.1.4.1.2699.2.4.1.3.1.1.2.1 STRING Reon VX-210 MP-021 pdm Ctlr Hardware Version 1.3.6.1.4.1.2699.2.4.1.3.1.1.3.1 STRING DEFVAL { "" }
MP-022 1.3.6.1.4.1.2699.2.4.1.3.1.1.4.1 STRING system version; network version
Pdm Ctlr
pdm Ctlr Firmware Version
MP-023 pdm Ctlr Firmware Upgradeable 1.3.6.1.4.1.2699.2.4.1.3.1.1.5.1 INTEGER DEFVAL { 10 } MP-024 pdm Ctlr Upgrade Instructions 1.3.6.1.4.1.2699.2.4.1.3.1.1.61 STRING DEFVAL { " " } MP-025 pdm Ctlr Post Status 1.3.6.1.4.1.2699.2.4.1.3.1.1.7.1 INTEGER DEFVAL{ 2 } MP-026 pdm Ctlr Post Code 1.3.6.1.4.1.2699.2.4.1.3.1.1.8.1 STRING DEFVAL { " " } MP-027 pdm Ctlr Post Status Definitions 1.3.6.1.4.1.2699.2.4.1.3.1.1.9.1 STRING DEFVAL { " " } MP-028 pdm Power Index .1.3.6.1.4.1.2699.2.4.1.4.1.1.1.1 INTEGER not-accessible MP-029 pdm Power Index .1.3.6.1.4.1.2699.2.4.1.4.1.1.1.2 INTEGER not-accessible
Pdm Power
