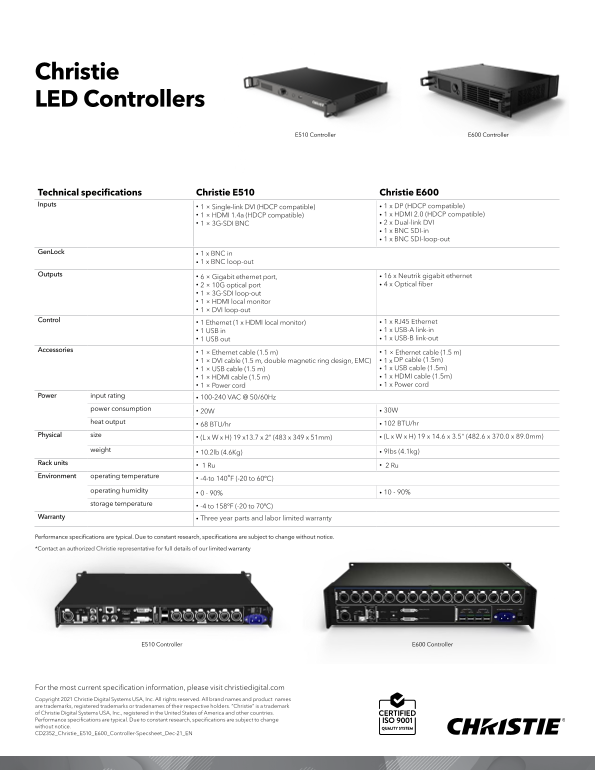

Christie E510 and E600 Controller Specsheet
Summary
The Christie E510 and E600 are high-performance professional video signal controllers designed for complex architectural AV installations. This manual provides comprehensive technical specifications, detailing inputs like HDMI, DVI, and SDI, alongside robust outputs via Gigabit Ethernet and Fiber optic ports. Ideal for system integrators and commercial venues requiring reliable management and distribution of multi-format digital signals.
Page 1 Text Content
Christie LED Controllers
E510 Controller E600 Controller
Technical specifications Christie E510 Christie E600 Inputs • 1 × Single-link DVI (HDCP compatible) • 1 x DP (HDCP compatible)
• 1 × HDMI 1.4a (HDCP compatible) • 1 x HDMI 2.0 (HDCP compatible) • 1 × 3G-SDI BNC • 2 x Dual-link DVI
• 1 x BNC SDI-in • 1 x BNC SDI-loop-out
Gen Lock • 1 x BNC in
• 1 x BNC loop-out
Outputs • 6 × Gigabit ethernet port, • 16 x Neutrik gigabit ethernet
• 2 × 10G optical port • 4 x Optical fiber • 1 × 3G-SDI loop-out • 1 × HDMI local monitor • 1 × DVI loop-out
Control • 1 Ethernet (1 x HDMI local monitor) • 1 x RJ45 Ethernet
• 1 USB in • 1 x USB-A link-in • 1 USB out • 1 x USB-B link-out
Accessories • 1 × Ethernet cable (1.5 m) • 1 × Ethernet cable (1.5 m)
• 1 × DVI cable (1.5 m, double magnetic ring design, EMC) • 1 x DP cable (1.5m) • 1 × USB cable (1.5 m) • 1 x USB cable (1.5m) • 1 × HDMI cable (1.5 m) • 1 x HDMI cable (1.5m) • 1 × Power cord • 1 x Power cord
Power input rating • 100-240 VAC @ 50/60Hz
power consumption • 20W • 30W
heat output • 68 BTU/hr • 102 BTU/hr
Physical size • (L x W x H) 19 x13.7 x 2” (483 x 349 x 51mm) • (L x W x H) 19 x 14.6 x 3.5" (482.6 x 370.0 x 89.0mm)
weight • 10.2lb (4.6Kg) • 9lbs (4.1kg)
Rack units • 1 Ru • 2 Ru
Environment operating temperature • -4-to 140°F (-20 to 60ºC)
operating humidity • 0 - 90% • 10 - 90%
storage temperature • -4 to 158°F (-20 to 70ºC)
Warranty • Three year parts and labor limited warranty
Performance specifications are typical. Due to constant research, specifications are subject to change without notice.
*Contact an authorized Christie representative for full details of our limited warranty
E510 Controller E600 Controller
For the most current specification information, please visit christiedigital.com Copyright 2021 Christie Digital Systems USA, Inc. All rights reserved. All brand names and product names are trademarks, registered trademarks or tradenames of their respective holders. “Christie” is a trademark of Christie Digital Systems USA, Inc., registered in the United States of America and other countries. Performance specifications are typical. Due to constant research, specifications are subject to change without notice. CD2352_Christie_E510_E600_Controller-Specsheet_Dec-21_EN
