Christie One Mount Plus Manual
Summary
This essential guide provides comprehensive instructions for safely mounting Christie Projectors using either the One Mount or the One Mount Plus. The manual covers step-by-step installation processes, detailed specifications, necessary tools, and critical safety warnings, including fire and electrical hazard precautions. It is designed for skilled technicians and professionals tasked with securely installing high-performance digital projectors in commercial or institutional settings, ensuring proper structural support and alignment.

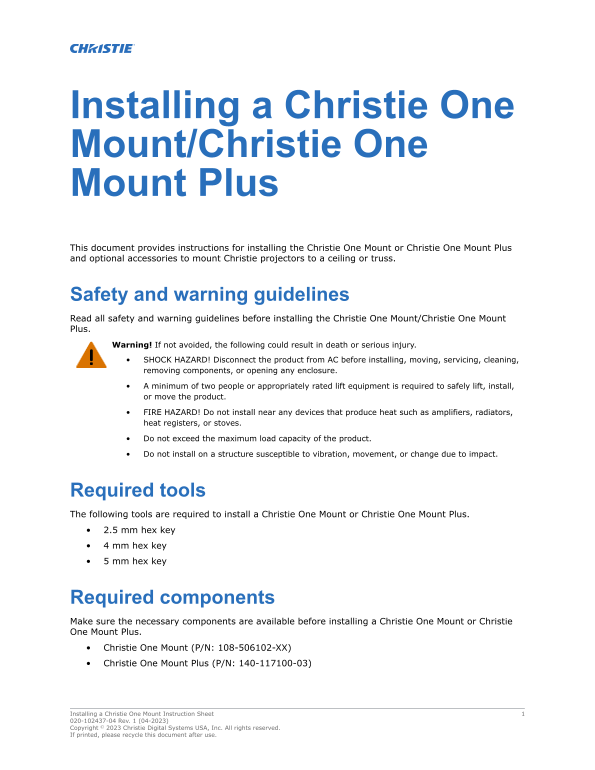

Page 1 Text Content
Installing a Christie One Mount/Christie One Mount Plus This document provides instructions for installing the Christie One Mount or Christie One Mount Plus and optional accessories to mount Christie projectors to a ceiling or truss. Safety and warning guidelines Read all safety and warning guidelines before installing the Christie One Mount/Christie One Mount Plus. Warning! If not avoided, the following could result in death or serious injury. SHOCK HAZARD! Disconnect the product from AC before installing, moving, servicing, cleaning, removing components, or opening any enclosure.
A minimum of two people or appropriately rated lift equipment is required to safely lift, install, or move the product.
FIRE HAZARD! Do not install near any devices that produce heat such as amplifiers, radiators, heat registers, or stoves.
Do not exceed the maximum load capacity of the product.
Do not install on a structure susceptible to vibration, movement, or change due to impact.
Required tools The following tools are required to install a Christie One Mount or Christie One Mount Plus. 2.5 mm hex key 4 mm hex key 5 mm hex key
Required components Make sure the necessary components are available before installing a Christie One Mount or Christie One Mount Plus. Christie One Mount (P/N: 108-506102-XX) Christie One Mount Plus (P/N: 140-117100-03)
Installing a Christie One Mount Instruction Sheet 020-102437-04 Rev. 1 (04-2023) Copyright © 2023 Christie Digital Systems USA, Inc. All rights reserved. If printed, please recycle this document after use.
