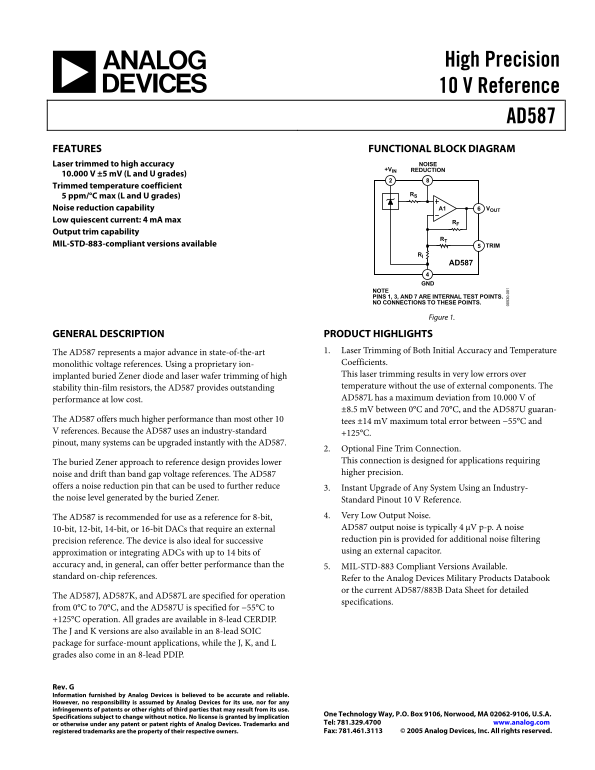

High Precision 10 V Reference

AD587 FEATURES FUNCTIONAL BLOCK DIAGRAM

Laser trimmed to high accuracy NOISE

+VIN REDUCTION

10.000 V ±5 m V (L and U grades) Trimmed temperature coefficient

5 ppm/°C max (L and U grades)

Noise reduction capability A1 VOUT

Low quiescent current: 4 m A max RF Output trim capability

MIL-STD-883-compliant versions available TRIM

AD587

NOTE PINS 1, 3, AND 7 ARE INTERNAL TEST POINTS. NO CONNECTIONS TO THESE POINTS.

Figure 1.

GENERAL DESCRIPTION PRODUCT HIGHLIGHTS

The AD587 represents a major advance in state-of-the-art 1. Laser Trimming of Both Initial Accuracy and Temperature monolithic voltage references. Using a proprietary ion- Coefficients. implanted buried Zener diode and laser wafer trimming of high This laser trimming results in very low errors over stability thin-film resistors, the AD587 provides outstanding temperature without the use of external components. The performance at low cost. AD587L has a maximum deviation from 10.000 V of ±8.5 m V between 0°C and 70°C, and the AD587U guaran-

The AD587 offers much higher performance than most other 10 tees ±14 m V maximum total error between −55°C and V references. Because the AD587 uses an industry-standard +125°C. pinout, many systems can be upgraded instantly with the AD587.

2. Optional Fine Trim Connection. The buried Zener approach to reference design provides lower This connection is designed for applications requiring noise and drift than band gap voltage references. The AD587 higher precision.

offers a noise reduction pin that can be used to further reduce 3. Instant Upgrade of Any System Using an Industry- the noise level generated by the buried Zener. Standard Pinout 10 V Reference.

The AD587 is recommended for use as a reference for 8-bit, 4. Very Low Output Noise. 10-bit, 12-bit, 14-bit, or 16-bit DACs that require an external AD587 output noise is typically 4 µV p-p. A noise precision reference. The device is also ideal for successive reduction pin is provided for additional noise filtering approximation or integrating ADCs with up to 14 bits of using an external capacitor.

accuracy and, in general, can offer better performance than the 5. MIL-STD-883 Compliant Versions Available. standard on-chip references. Refer to the Analog Devices Military Products Databook

or the current AD587/883B Data Sheet for detailed

The AD587J, AD587K, and AD587L are specified for operation

specifications.

from 0°C to 70°C, and the AD587U is specified for −55°C to +125°C operation. All grades are available in 8-lead CERDIP. The J and K versions are also available in an 8-lead SOIC package for surface-mount applications, while the J, K, and L grades also come in an 8-lead PDIP.

Rev. G Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Specifications subject to change without notice. No license is granted by implication

or otherwise under any patent or patent rights of Analog Devices. Trademarks and Tel: 781.329.4700 www.analog.com registered trademarks are the property of their respective owners. Fax: 781.461.3113 © 2005 Analog Devices, Inc. All rights reserved.

Page Summary Contents For ANALOG DEVICES AD587 Specifications and User Guide

Page 1 High Precision 10 V Reference AD587 FEATURES FUNCTIONAL BLOCK DIAGRAM Laser trimmed to high accuracy NOISE +VIN REDUCTION 10.000 V ±5 m V (L and U grades) Trimmed temperature coefficient 5 ppm/°C max ...
Page 2 AD587 TABLE OF CONTENTS Specifications..................................................................................... Dynamic Performance............................................................
Page 3 AD587 SPECIFICATIONS TA = 25°C, VIN = 15 V, unless otherwise noted. Table 1. AD587J AD587K AD587L/AD587U Parameter Min Typ Max Min Typ Max Min Typ Max Unit OUTPUT VOLTAGE 9.990 10.010 9.995 10.005 9.9...
Page 4 AD587 ABSOLUTE MAXIMUM RATINGS Table 2. Stresses above those listed under Absolute Maximum Ratings Parameter Rating may cause permanent damage to the device. This is a stress +VIN to Ground 36 V ratin...
Page 5 AD587 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS NOISE REDUCTION +VIN TP* AD587 TOP VIEW TP* VOUT (Not to Scale) GND TRIM *TP DENOTES FACTORY TEST POINT. NO CONNECTIONS SHOULD BE MADE TO THESE PINS. ...
Page 6 AD587 THEORY OF OPERATION The AD587 consists of a proprietary buried Zener diode NOISE PERFORMANCE AND REDUCTION reference, an amplifier to buffer the output, and several high Noise generated by the A...
Page 7 AD587 TURN-ON TIME 1V 100ms10V Upon application of power (cold start), the time required for VIN the output voltage to reach its final value within a specified error band is defined as the turn-on set...
Page 8 AD587 ∆VOUT (µV) LOAD (m A)2 Figure 15. Typical Load Regulation Characteristics Figure 12. Fine Scale Setting for Transient Load TEMPERATURE PERFORMANCE In some applications, a varying load may be bot...
Page 9 AD587 Each AD587J, AD587K, and AD587L grade unit is tested at 0°C, NEGATIVE REFERENCE VOLTAGE FROM AN AD587 25°C, and 70°C. Each AD587U grade unit is tested at −55°C, The AD587 can be used to provide ...
Page 10 AD587 APPLICATIONS INFORMATION USING THE AD587 WITH CONVERTERS The AD587 is an ideal reference for a variety of 8-bit, 12-bit, 14-bit, and 16-bit ADCs and DACs. Several examples follow. VOUT 10V IL = ...
Page 11 AD587 OUTLINE DIMENSIONS MIN MAX PIN 1 0.100 (2.54) BSC 1.27 (0.0500) 0.50 (0.0196) 0.405 (10.29) MAX BSC × 45° 0.290 (7.37) MAX 0.015 (0.38) 0.31 (0.0122)COPLANARITY 0.25 (0.0098) SEATING 0.10 0.40 (...
Page 12 AD587 ORDERING GUIDE Model Initial Error Temperature Coefficient Temperature Range Package Option1 AD587JQ 10 m V 20 ppm/°C 0°C to 70°C Q-8 AD587JR 10 m V 20 ppm/°C 0°C to 70°C R-8 AD587JR-REEL 10 m V...
