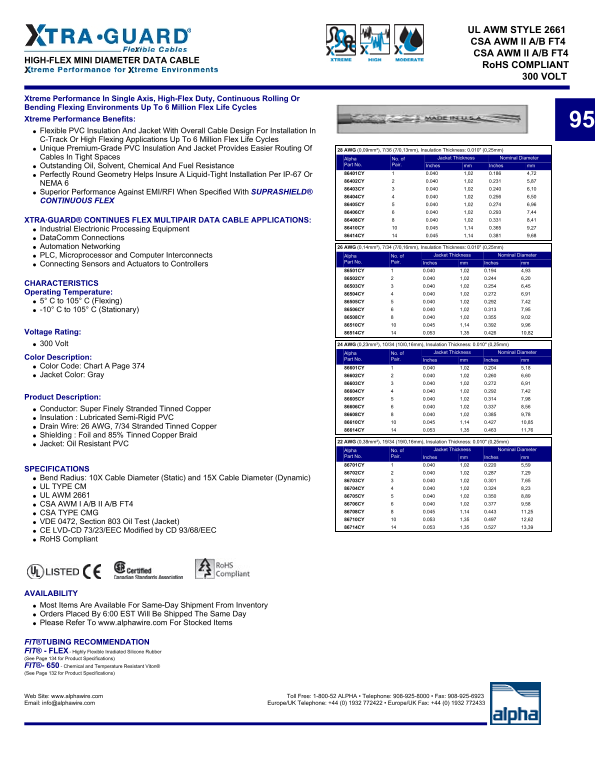

UL AWM STYLE 2661
CSA AWM II A/B FT4 CSA AWM II A/B FT4
HIGH-FLEX MINI DIAMETER DATA CABLE
Ro HS COMPLIANT
300 VOLT
Xtreme Performance In Single Axis, High-Flex Duty, Continuous Rolling Or Bending Flexing Environments Up To 6 Million Flex Life Cycles Xtreme Performance Benefits: Flexible PVC Insulation And Jacket With Overall Cable Design For Installation In C-Track Or High Flexing Applications Up To 6 Million Flex Life Cycles Unique Premium-Grade PVC Insulation And Jacket Provides Easier Routing Of 28 AWG (0,09mm²), 7/36 (7/0,13mm), Insulation Thickness: 0.010" (0,25mm) Cables In Tight Spaces No. of Jacket Thickness Nominal Diameter
Alpha Part No. Pair. Inches mm Inches mm
Outstanding Oil, Solvent, Chemical And Fuel Resistance
86401CY 1 0.040 1,02 0.186 4,72
Perfectly Round Geometry Helps Insure A Liquid-Tight Installation Per IP-67 Or
86402CY 2 0.040 1,02 0.231 5,87
NEMA 6
86403CY 3 0.040 1,02 0.240 6,10
Superior Performance Against EMI/RFI When Specified With SUPRASHIELD®
86404CY 4 0.040 1,02 0.256 6,50
CONTINUOUS FLEX
86405CY 5 0.040 1,02 0.274 6,96 86406CY 6 0.040 1,02 0.293 7,44 XTRA·GUARD® CONTINUES FLEX MULTIPAIR DATA CABLE APPLICATIONS: 86408CY 8 0.040 1,02 0.331 8,41 86410CY 10 0.045 1,14 0.365 9,27
Industrial Electrionic Processing Equipment
86414CY 14 0.045 1,14 0.381 9,68
Data Comm Connections Automation Networking 26 AWG (0,14mm²), 7/34 (7/0,16mm), Insulation Thickness: 0.010" (0,25mm)
PLC, Microprocessor and Computer Interconnects No. of Jacket Thickness Nominal Diameter
Alpha Part No. Pair. Inches mm Inches mm
Connecting Sensors and Actuators to Controllers
86501CY 1 0.040 1,02 0.194 4,93 86502CY 2 0.040 1,02 0.244 6,20
CHARACTERISTICS
86503CY 3 0.040 1,02 0.254 6,45
Operating Temperature: 86504CY 4 0.040 1,02 0.272 6,91 5° C to 105° C (Flexing) 86505CY 5 0.040 1,02 0.292 7,42
-10° C to 105° C (Stationary) 86506CY 6 0.040 1,02 0.313 7,95 86508CY 8 0.040 1,02 0.355 9,02 86510CY 10 0.045 1,14 0.392 9,96
Voltage Rating: 86514CY 14 0.053 1,35 0.426 10,82
300 Volt 24 AWG (0,23mm²), 10/34 (10/0,16mm), Insulation Thickness: 0.010" (0,25mm)
No. of Jacket Thickness Nominal Diameter
Alpha
Color Description: Part No. Pair.
Inches mm Inches mm
Color Code: Chart A Page 374 86601CY 1 0.040 1,02 0.204 5,18 Jacket Color: Gray 86602CY 2 0.040 1,02 0.260 6,60
86603CY 3 0.040 1,02 0.272 6,91 86604CY 4 0.040 1,02 0.292 7,42
Product Description: 86605CY 5 0.040 1,02 0.314 7,98
86606CY 6 0.040 1,02 0.337 8,56
Conductor: Super Finely Stranded Tinned Copper
86608CY 8 0.040 1,02 0.385 9,78
Insulation : Lubricated Semi-Rigid PVC
86610CY 10 0.045 1,14 0.427 10,85
Drain Wire: 26 AWG, 7/34 Stranded Tinned Copper
86614CY 14 0.053 1,35 0.463 11,76
Shielding : Foil and 85% Tinned Copper Braid
22 AWG (0,38mm²), 19/34 (19/0,16mm), Insulation Thickness: 0.010" (0,25mm)
Jacket: Oil Resistant PVC
No. of Jacket Thickness Nominal Diameter
Alpha Part No. Pair. Inches mm Inches mm 86701CY 1 0.040 1,02 0.220 5,59
SPECIFICATIONS
86702CY 2 0.040 1,02 0.287 7,29
Bend Radius: 10X Cable Diameter (Static) and 15X Cable Diameter (Dynamic)
86703CY 3 0.040 1,02 0.301 7,65
UL TYPE CM 86704CY 4 0.040 1,02 0.324 8,23 UL AWM 2661 86705CY 5 0.040 1,02 0.350 8,89
CSA AWM I A/B II A/B FT4 86706CY 6 0.040 1,02 0.377 9,58 86708CY 8 0.045 1,14 0.443 11,25
CSA TYPE CMG
86710CY 10 0.053 1,35 0.497 12,62
VDE 0472, Section 803 Oil Test (Jacket)
86714CY 14 0.053 1,35 0.527 13,39
CE LVD-CD 73/23/EEC Modified by CD 93/68/EEC Ro HS Compliant
AVAILABILITY Most Items Are Available For Same-Day Shipment From Inventory Orders Placed By 6:00 EST Will Be Shipped The Same Day Please Refer To www.alphawire.com For Stocked Items
FIT®TUBING RECOMMENDATION FIT® - FLEX - Highly Flexible Irradiated Silicone Rubber (See Page 134 for Product Specifications) FIT®- 650 - Chemical and Temperature Resistant Viton® (See Page 132 for Product Specifications)
Web Site: www.alphawire.com Toll Free: 1-800-52 ALPHA • Telephone: 908-925-8000 • Fax: 908-925-6923 Email: [email protected] Europe/UK Telephone: +44 (0) 1932 772422 • Europe/UK Fax: +44 (0) 1932 772433
