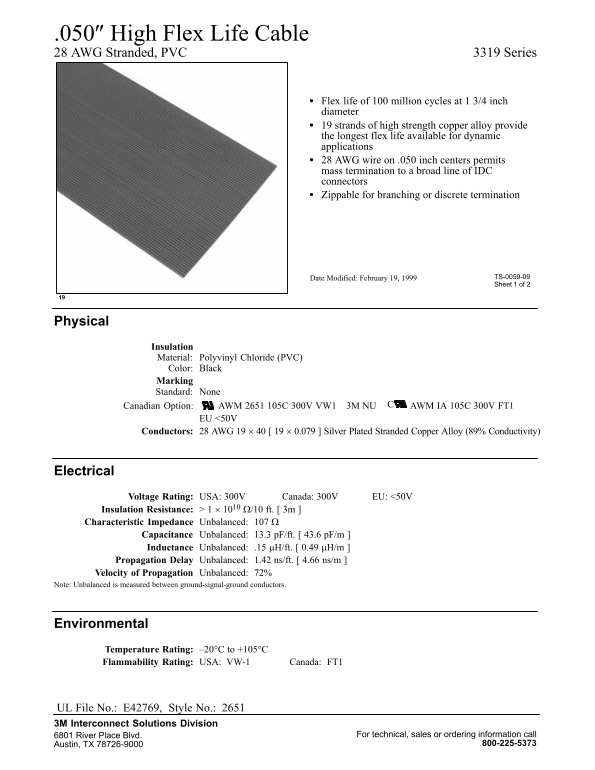

.050″ High Flex Life Cable 28 AWG Stranded, PVC 3319 Series
Flex life of 100 million cycles at 1 3/4 inch diameter 19 strands of high strength copper alloy provide the longest flex life available for dynamic applications 28 AWG wire on .050 inch centers permits mass termination to a broad line of IDC connectors Zippable for branching or discrete termination
Date Modified: February 19, 1999 TS-0059-09 Sheet 1 of 2
Physical
Insulation Material: Polyvinyl Chloride (PVC) Color: Black Marking Standard: None Canadian Option: AWM 2651 105C 300V VW1 3M NU AWM IA 105C 300V FT1
EU <50V
Conductors: 28 AWG 19 × 40 [ 19 × 0.079 ] Silver Plated Stranded Copper Alloy (89% Conductivity)
Electrical
Voltage Rating: USA: 300V Canada: 300V EU: <50V Insulation Resistance: > 1 × 1010 Ω/10 ft. [ 3m ]
Characteristic Impedance Unbalanced: 107 Ω
Capacitance Unbalanced: 13.3 p F/ft. [ 43.6 p F/m ] Inductance Unbalanced: .15 µH/ft. [ 0.49 µH/m ] Propagation Delay Unbalanced: 1.42 ns/ft. [ 4.66 ns/m ]
Velocity of Propagation Unbalanced: 72%
Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental Temperature Rating: –20°C to +105°C
Flammability Rating: USA: VW-1 Canada: FT1
UL File No.: E42769, Style No.: 3M Interconnect Solutions Division
6801 River Place Blvd. For technical, sales or ordering information call
Austin, TX 78726-9000 800-225-5373
