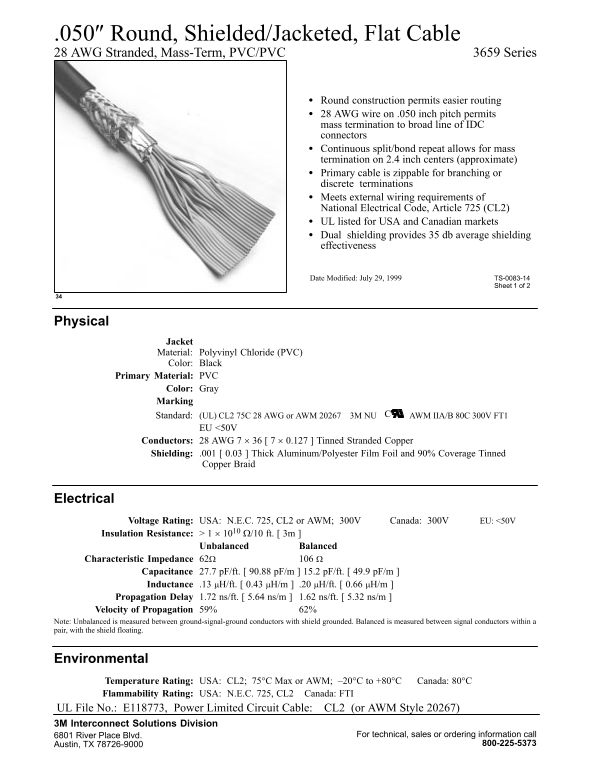

Page 1 Text Content
.050″ Round, Shielded/Jacketed, Flat Cable 28 AWG Stranded, Mass-Term, PVC/PVC 3659 Series
Round construction permits easier routing 28 AWG wire on .050 inch pitch permits mass termination to broad line of IDC connectors Continuous split/bond repeat allows for mass termination on 2.4 inch centers (approximate) Primary cable is zippable for branching or discrete terminations Meets external wiring requirements of National Electrical Code, Article 725 (CL2) UL listed for USA and Canadian markets Dual shielding provides 35 db average shielding effectiveness
Date Modified: July 29, 1999 TS-0083-14
Sheet 1 of 2
Physical
Jacket Material: Polyvinyl Chloride (PVC) Color: Black
Primary Material: PVC
Color: Gray Marking Standard: (UL) CL2 75C 28 AWG or AWM 20267 3M NU AWM IIA/B 80C 300V FT1 EU <50V Conductors: 28 AWG 7 × 36 [ 7 × 0.127 ] Tinned Stranded Copper Shielding: .001 [ 0.03 ] Thick Aluminum/Polyester Film Foil and 90% Coverage Tinned Copper Braid
Electrical
Voltage Rating: USA: N.E.C. 725, CL2 or AWM; 300V Canada: 300V EU: <50V Insulation Resistance: > 1 × 1010 Ω/10 ft. [ 3m ]
Unbalanced Balanced
Characteristic Impedance 62Ω 106 Ω
Capacitance 27.7 p F/ft. [ 90.88 p F/m ] 15.2 p F/ft. [ 49.9 p F/m ] Inductance .13 µH/ft. [ 0.43 µH/m ] .20 µH/ft. [ 0.66 µH/m ] Propagation Delay 1.72 ns/ft. [ 5.64 ns/m ] 1.62 ns/ft. [ 5.32 ns/m ]
Velocity of Propagation 59% 62%
Note: Unbalanced is measured between ground-signal-ground conductors with shield grounded. Balanced is measured between signal conductors within a pair, with the shield floating.
Environmental Temperature Rating: USA: CL2; 75°C Max or AWM; –20°C to +80°C Canada: 80°C
Flammability Rating: USA: N.E.C. 725, CL2 Canada: FTI
UL File No.: E118773, Power Limited Circuit Cable: CL2 (or AWM Style 20267) 3M Interconnect Solutions Division
6801 River Place Blvd. For technical, sales or ordering information call
Austin, TX 78726-9000 800-225-5373
