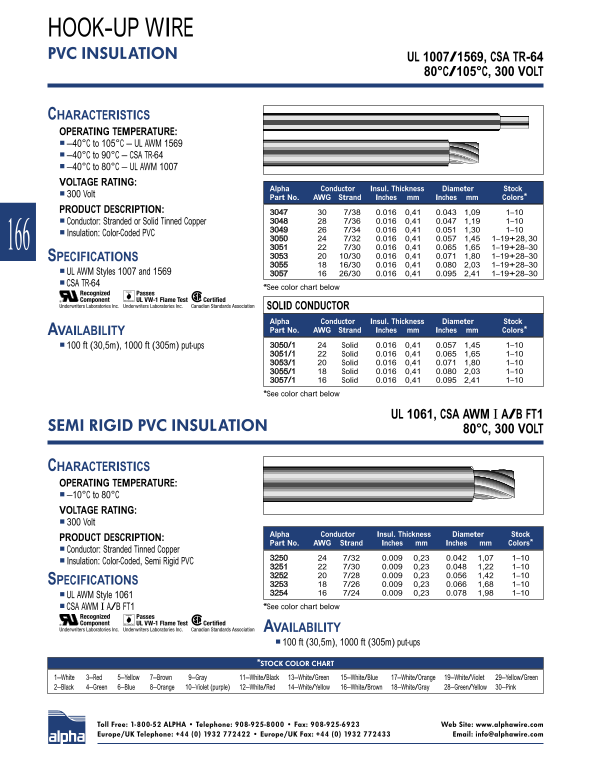

HOOK-UP WIRE PVC INSULATION UL 1007/1569, CSA TR-64
80°C/105°C, 300 VOLT
CHARACTERISTICS OPERATING TEMPERATURE: –40°C to 105°C – UL AWM 1569 –40°C to 90°C – CSA TR-64 –40°C to 80°C – UL AWM 1007 VOLTAGE RATING:
Alpha Conductor Insul. Thickness Diameter Stock
300 Volt
Part No. AWG Strand Inches mm Inches mm Colors*
PRODUCT DESCRIPTION:
7/38 0.016 0,41 0.043 1,09 1–10 Conductor: Stranded or Solid Tinned Copper 7/36 0.016 0,41 0.047 1,19 1–10 7/34 0.016 0,41 0.051 1,30 1–10
Insulation: Color-Coded PVC
7/32 0.016 0,41 0.057 1,45 1–19+28, 7/30 0.016 0,41 0.065 1,65 1–19+28–30 SPECIFICATIONS 10/30 0.016 0,41 0.071 1,80 1–19+28–30 16/30 0.016 0,41 0.080 2,03 1–19+28–30
UL AWM Styles 1007 and 1569 26/30 0.016 0,41 0.095 2,41 1–19+28–30 CSA TR-64
*See color chart below
SOLID CONDUCTOR Alpha Conductor Insul. Thickness Diameter Stock AVAILABILITY Part No. AWG Strand Inches mm Inches mm Colors* 100 ft (30,5m), 1000 ft (305m) put-ups 3050/1 Solid 0.016 0,41 0.057 1,45 1–10 3051/1 Solid 0.016 0,41 0.065 1,65 1–10 3053/1 Solid 0.016 0,41 0.071 1,80 1–10 3055/1 Solid 0.016 0,41 0.080 2,03 1–10 3057/1 Solid 0.016 0,41 0.095 2,41 1–10 *See color chart below
UL 1061, CSA AWM I A/B FT1
SEMI RIGID PVC INSULATION 80°C, 300 VOLT
CHARACTERISTICS OPERATING TEMPERATURE: –10°C to 80°C VOLTAGE RATING: 300 Volt
Alpha Conductor Insul. Thickness Diameter Stock
PRODUCT DESCRIPTION:
Part No. AWG Strand Inches mm Inches mm Colors*
Conductor: Stranded Tinned Copper
Insulation: Color-Coded, Semi Rigid PVC
SPECIFICATIONS
7/26 0.009 0,23 0.066 1,68 1–10 UL AWM Style 1061 7/24 0.009 0,23 0.078 1,98 1–10
CSA AWM I A/B FT1 *See color chart below
AVAILABILITY 100 ft (30,5m), 1000 ft (305m) put-ups *STOCK COLOR CHART
1–White 3–Red 5–Yellow 7–Brown 9–Gray 11–White/Black 13–White/Green 15–White/Blue 17–White/Orange 19–White/Violet 29–Yellow/Green 2–Black 4–Green 6–Blue 8–Orange 10–Violet (purple) 12–White/Red 14–White/Yellow 16–White/Brown 18–White/Gray 28–Green/Yellow 30–Pink
Toll Free: 1-800-52 ALPHA • Telephone: 908-925-8000 • Fax: 908-925-6923 Web Site: www.alphawire.com Europe/UK Telephone: +44 (0) 1932 772422 • Europe/UK Fax: +44 (0) 1932 772433 Email: [email protected]
