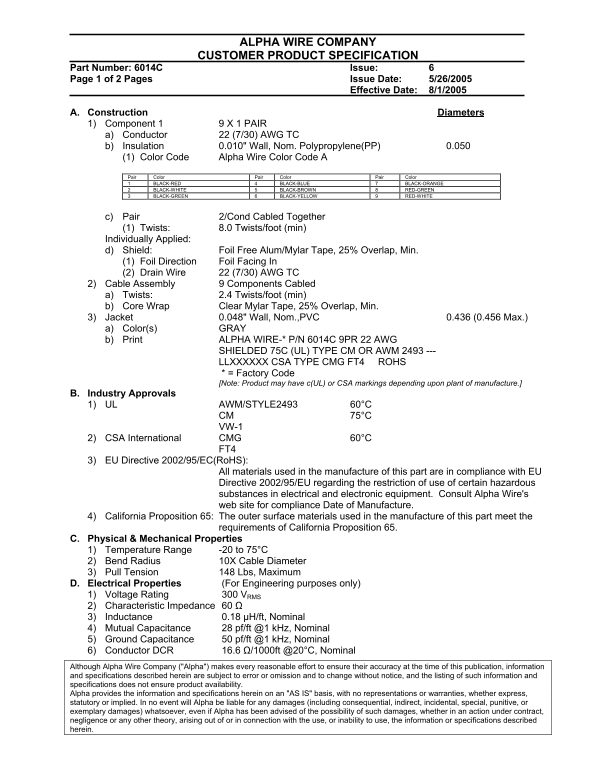

ALFA WIRE - ALPHA WIRE COMPANY CUSTOMER PRODUCT SPECIFICATION Part Number 6014C Issue 6 Page 1 of 2 Pages

ALPHA WIRE COMPANY CUSTOMER PRODUCT SPECIFICATION

Part Number: 6014C Issue: 6 Page 1 of 2 Pages Issue Date: 5/26/2005 Effective Date: 8/1/2005

A. Construction Diameters 1) Component 1 9 X 1 PAIR a) Conductor 22 (7/30) AWG TC b) Insulation 0.010" Wall, Nom. Polypropylene(PP) 0.050

(1) Color Code Alpha Wire Color Code A Pair Color Pair Color Pair Color 1 BLACK-RED 4 BLACK-BLUE 7 BLACK-ORANGE 2 BLACK-WHITE 5 BLACK-BROWN 8 RED-GREEN 3 BLACK-GREEN 6 BLACK-YELLOW 9 RED-WHITE

c) Pair 2/Cond Cabled Together (1) Twists: 8.0 Twists/foot (min) Individually Applied: d) Shield: Foil Free Alum/Mylar Tape, 25% Overlap, Min. (1) Foil Direction Foil Facing In (2) Drain Wire 22 (7/30) AWG TC 2) Cable Assembly 9 Components Cabled a) Twists: 2.4 Twists/foot (min) b) Core Wrap Clear Mylar Tape, 25% Overlap, Min. 3) Jacket 0.048" Wall, Nom.,PVC 0.436 (0.456 Max.) a) Color(s) GRAY b) Print ALPHA WIRE-* P/N 6014C 9PR 22 AWG SHIELDED 75C (UL) TYPE CM OR AWM 2493 --- LLXXXXXX CSA TYPE CMG FT4 ROHS * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] B. Industry Approvals 1) UL AWM/STYLE2493 60°C CM 75°C VW-1 2) CSA International CMG 60°C FT4 3) EU Directive 2002/95/EC(Ro HS): All materials used in the manufacture of this part are in compliance with EU

Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.

4) California Proposition 65: The outer surface materials used in the manufacture of this part meet the

requirements of California Proposition 65.
