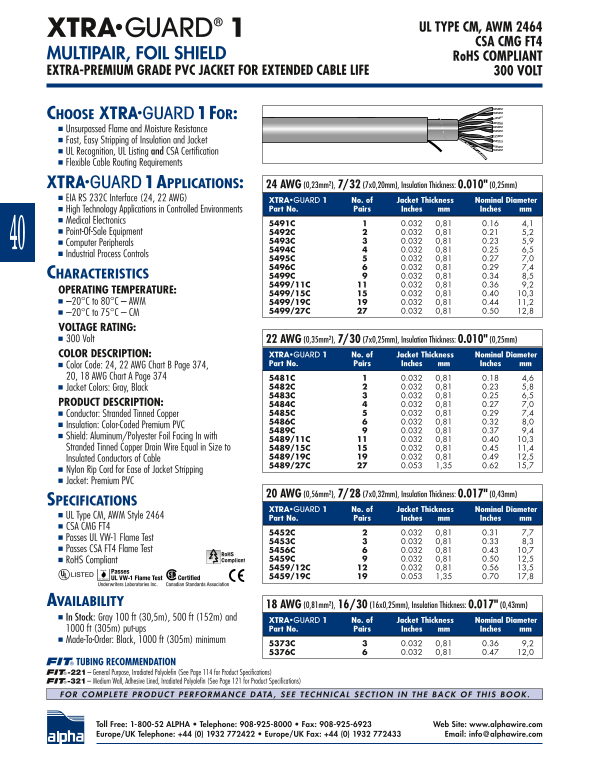

ALFA WIRE XTRA GUARD 1 MULTIPAIR FOIL SHIELD Extra-Premium Grade PVC Jacket for Extended Cable Life

XTRA•GUARD® UL TYPE CM, AWM 2464 CSA CMG FT4

MULTIPAIR, FOIL SHIELD Ro HS COMPLIANT EXTRA-PREMIUM GRADE PVC JACKET FOR EXTENDED CABLE LIFE 300 VOLT

CHOOSE XTRA•GUARD 1FOR: Unsurpassed Flame and Moisture Resistance Fast, Easy Stripping of Insulation and Jacket UL Recognition, UL Listing and CSA Certification Flexible Cable Routing Requirements

XTRA•GUARD 1APPLICATIONS: 24 AWG (0,23mm2), 7/32 (7x0,20mm), Insulation Thickness: 0.010" (0,25mm)

EIA RS 232C Interface (24, 22 AWG) XTRA•GUARD No. of Jacket Thickness Nominal Diameter

High Technology Applications in Controlled Environments Part No. Pairs Inches mm Inches mm

Medical Electronics

Point-Of-Sale Equipment 5492C 0.032 0,81 0.21 5,2

Computer Peripherals 5493C 0.032 0,81 0.23 5,9 5494C 0.032 0,81 0.25 6,5

Industrial Process Controls

CHARACTERISTICS 5499C 0.032 0,81 0.34 8,5

OPERATING TEMPERATURE:

–20°C to 80°C – AWM 5499/19C 0.032 0,81 0.44 11,2

–20°C to 75°C – CM 5499/27C 0.032 0,81 0.50 12,8

VOLTAGE RATING: 300 Volt 22 AWG (0,35mm2), 7/30 (7x0,25mm), Insulation Thickness: 0.010" (0,25mm) COLOR DESCRIPTION: XTRA•GUARD No. of Jacket Thickness Nominal Diameter

Color Code: 24, 22 AWG Chart Page 374, Part No. Pairs Inches mm Inches mm

20, AWG Chart A Page 374 5481C 0.032 0,81 0.18 4,6

Jacket Colors: Gray, Black 5482C 0.032 0,81 0.23 5,8 5483C 0.032 0,81 0.25 6,5

PRODUCT DESCRIPTION: 5484C 0.032 0,81 0.27 7,0

Conductor: Stranded Tinned Copper 5485C 0.032 0,81 0.29 7,4 5486C 0.032 0,81 0.32 8,0

Insulation: Color-Coded Premium PVC

Shield: Aluminum/Polyester Foil Facing In with

Stranded Tinned Copper Drain Wire Equal in Size to 5489/15C 0.032 0,81 0.45 11,4

Insulated Conductors of Cable 5489/19C 0.032 0,81 0.49 12,5 5489/27C 0.053 1,35 0.62 15,7

Nylon Rip Cord for Ease of Jacket Stripping Jacket: Premium PVC

20 AWG (0,56mm2), 7/28 (7x0,32mm), Insulation Thickness: 0.017" (0,43mm)

SPECIFICATIONS

XTRA•GUARD No. of Jacket Thickness Nominal Diameter

UL Type CM, AWM Style 2464 Part No. Pairs Inches mm Inches mm CSA CMG FT4

Passes UL VW-1 Flame Test

Passes CSA FT4 Flame Test 5456C 0.032 0,81 0.43 10,7

Ro HS Compliant 5459C 0.032 0,81 0.50 12,5 5459/12C 0.032 0,81 0.56 13,5 5459/19C 0.053 1,35 0.70 17,8

AVAILABILITY 18 AWG (0,81mm2), 16/30 (16x0,25mm), Insulation Thickness: 0.017" (0,43mm) In Stock: Gray 100 ft (30,5m), 500 ft (152m) and No. of Jacket Thickness Nominal Diameter

XTRA•GUARD 1000 ft (305m) put-ups Part No. Pairs Inches mm Inches mm

Made-To-Order: Black, 1000 ft (305m) minimum

FIT® TUBING RECOMMENDATION FIT®-221 General Purpose, Irradiated Polyolefin (See Page 114 for Product Specifications) FIT®-321 Medium Wall, Adhesive Lined, Irradiated Polyolefin (See Page 121 for Product Specifications)
