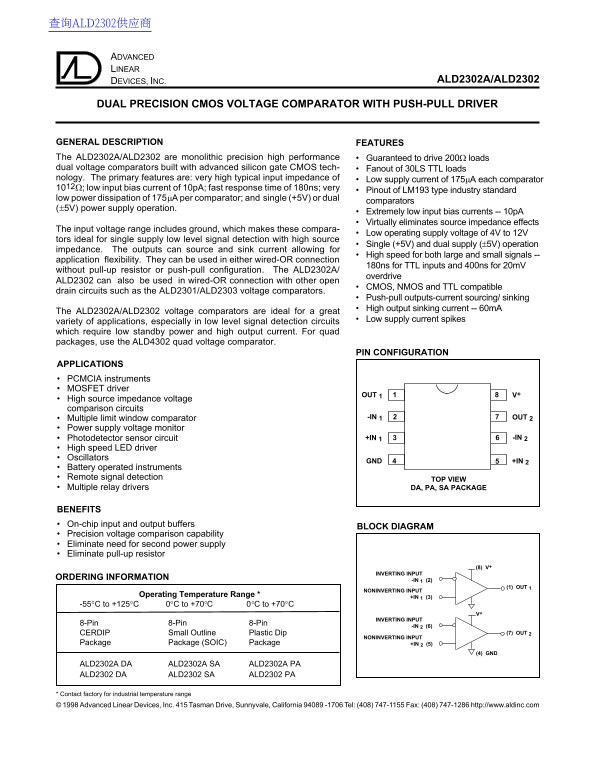

Page 1 Text Content
查询ALD2302供应商
ADVANCED LINEAR
DEVICES, INC. ALD2302A/ALD2302
DUAL PRECISION CMOS VOLTAGE COMPARATOR WITH PUSH-PULL DRIVER
GENERAL DESCRIPTION FEATURES The ALD2302A/ALD2302 are monolithic precision high performance Guaranteed to drive 200Ω loads dual voltage comparators built with advanced silicon gate CMOS tech- Fanout of 30LS TTL loads nology. The primary features are: very high typical input impedance of Low supply current of 175µA each comparator 1012Ω; low input bias current of 10p A; fast response time of 180ns; very
Pinout of LM193 type industry standard
low power dissipation of 175µA per comparator; and single (+5V) or dual
comparators
(±5V) power supply operation.
Extremely low input bias currents -- 10p A Virtually eliminates source impedance effects
The input voltage range includes ground, which makes these compara-
Low operating supply voltage of 4V to 12V
tors ideal for single supply low level signal detection with high source
Single (+5V) and dual supply (±5V) operation
impedance. The outputs can source and sink current allowing for
High speed for both large and small signals --
application flexibility. They can be used in either wired-OR connection
180ns for TTL inputs and 400ns for 20m V
without pull-up resistor or push-pull configuration. The ALD2302A/
overdrive
ALD2302 can also be used in wired-OR connection with other open
CMOS, NMOS and TTL compatible
drain circuits such as the ALD2301/ALD2303 voltage comparators.
Push-pull outputs-current sourcing/ sinking High output sinking current -- 60m A
The ALD2302A/ALD2302 voltage comparators are ideal for a great
Low supply current spikes
variety of applications, especially in low level signal detection circuits which require low standby power and high output current. For quad packages, use the ALD4302 quad voltage comparator.
PIN CONFIGURATION
APPLICATIONS PCMCIA instruments MOSFET driver
OUT 1 V+
High source impedance voltage comparison circuits
Multiple limit window comparator -IN 1 OUT 2
Power supply voltage monitor
Photodetector sensor circuit +IN 1 -IN 2
High speed LED driver Oscillators
GND +IN 2
Battery operated instruments Remote signal detection
TOP VIEW
Multiple relay drivers DA, PA, SA PACKAGE
BENEFITS On-chip input and output buffers
BLOCK DIAGRAM
Precision voltage comparison capability Eliminate need for second power supply Eliminate pull-up resistor
INVERTING INPUT
ORDERING INFORMATION
-IN 1 (2)
(1) OUT 1
NONINVERTING INPUT
Operating Temperature Range *
+IN 1 (3)
-55°C to +125°C 0°C to +70°C 0°C to +70°C
INVERTING INPUT
8-Pin 8-Pin 8-Pin
-IN 2 (6)
CERDIP Small Outline Plastic Dip (7) OUT 2
NONINVERTING INPUT
Package Package (SOIC) Package +IN 2 (5)
(4) GND
ALD2302A DA ALD2302A SA ALD2302A PA ALD2302 DA ALD2302 SA ALD2302 PA
* Contact factory for industrial temperature range © 1998 Advanced Linear Devices, Inc. 415 Tasman Drive, Sunnyvale, California 94089 -1706 Tel: (408) 747-1155 Fax: (408) 747-1286 http://www.aldinc.com
