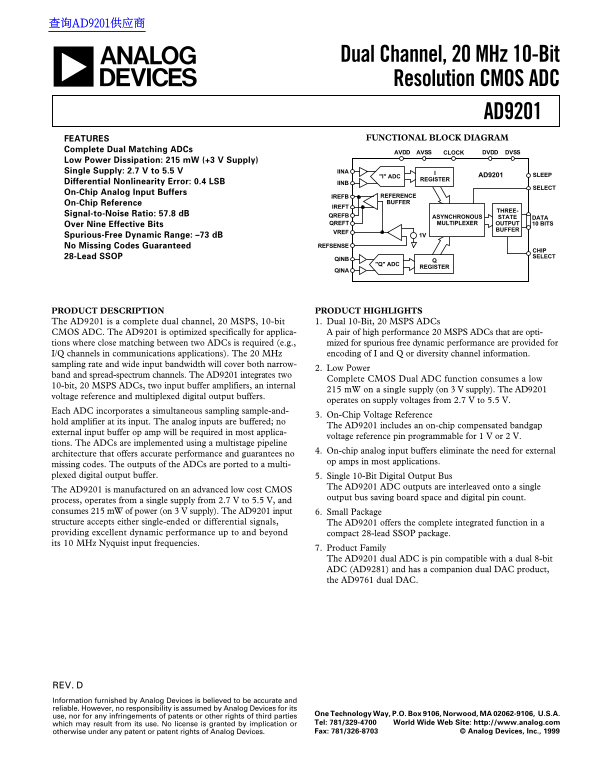

AD9201 Dual Channel, 20 MHz 10-Bit Resolution CMOS ADC Data Sheet Owner's Manual
Summary
The AD9201 is a high-performance, dual-channel 20 MSPS, 10-bit CMOS ADC designed primarily for advanced communications applications. It provides perfectly matched I/Q or diversity channel measurements with exceptional dynamic range and low power consumption (215 mW). The manual details its single-supply operation (2.7V to 5.5V) and integrated features, including on-chip buffers and a multiplexed digital bus, eliminating the need for external components and simplifying board design. Ideal for engineers requiring precise dual ADC solutions in compact systems.
Manual Details
| Brand | Dual |
|---|---|
| Pages | 20 |
| File Size | 442.59 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the AD9201's operational voltage range?
It operates on supply voltages from 2.7 V to 5.5 V and consumes 215 mW of power on a 3 V supply.
How many bits of resolution does the AD9201 offer?
The device offers 10-bit resolution for two dual channels (I/Q).
What are the main advantages of using the AD9201 ADC?
It is a complete integrated function featuring dual 10-bit, 20 MSPS ADCs and benefits from on-chip analog input buffers, eliminating most external op amps.
Is the chip compatible with other Analog Devices products?
Yes, it is pin compatible with the dual 8-bit ADC (AD9281) and has a companion dual DAC product, the AD9761 dual DAC.
