AD10226 Dual-Channel, 12-Bit 125 MSPS IF Sampling ADC Data Sheet Manual User Guide
Summary

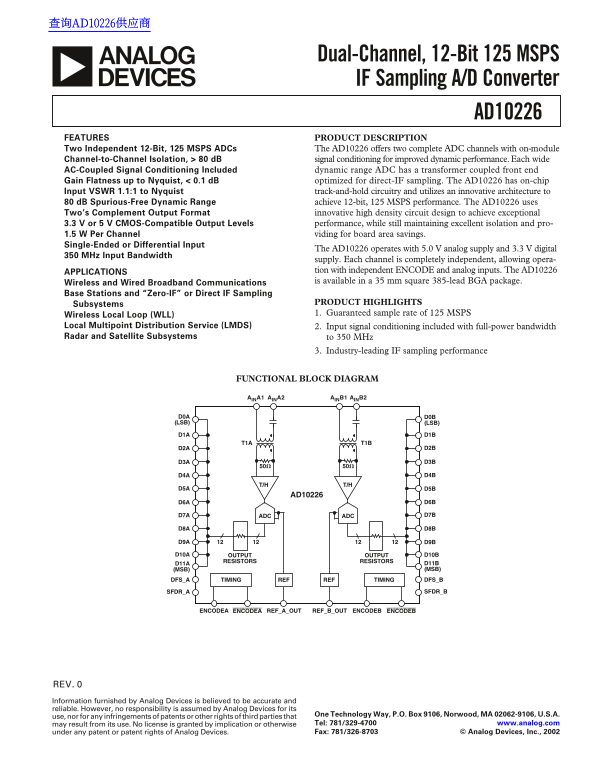

The AD10226 is a high-performance dual-channel, 12-Bit, 125 MSPS A/D Converter designed for demanding modern RF applications. Optimized for Direct-IF and Zero-IF sampling, it features wide AC-coupled signal conditioning and superior channel isolation crucial for broadband communications. This technical manual provides dedicated engineers with comprehensive specifications, performance curves (including SNR and SFDR), functional block diagrams, and detailed electrical parameters necessary for seamless integration into massive base stations, radar, and satellite subsystems.
Manual Details
| Brand | Dual |
|---|---|
| Pages | 20 |
| File Size | 969.30 KB |
| Published | May 28, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum conversion rate of the AD10226?
The guaranteed sample rate is 125 MSPS, with a minimum rate of 10 MSPS.
Does it support diverse input signals?
Yes, the AD10226 can operate with both Single-Ended and Differential Inputs, and has independent ENCODE/analog inputs per channel.
What is the required supply voltage for operation?
It requires a 5.0 V analog supply and a 3.3 V digital power supply.
How is performance measured in terms of dynamic range?
The device achieves an exceptional Spurious-Free Dynamic Range (SFDR) up to 82 dBFS at 10 MHz.
