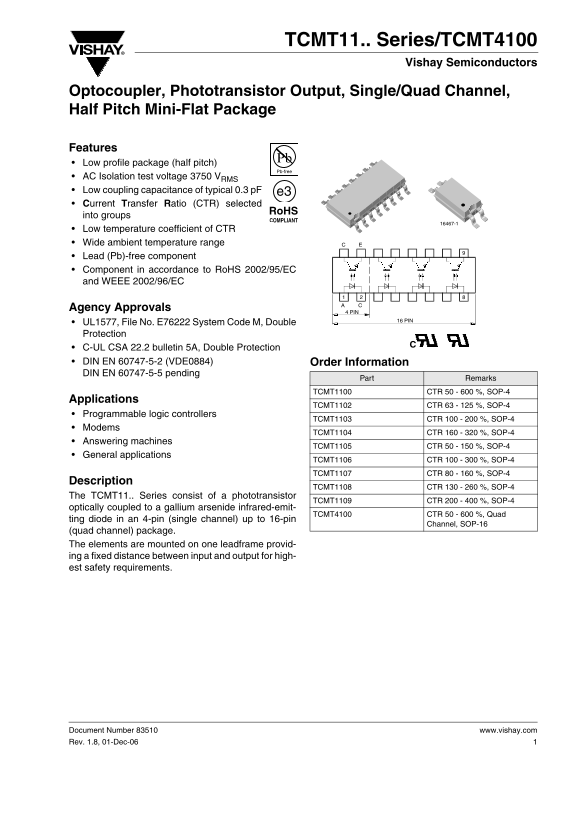

TCMT11.. Series/TCMT4100
Vishay Semiconductors
Optocoupler, Phototransistor Output, Single/Quad Channel, Half Pitch Mini-Flat Package
Features Low profile package (half pitch) AC Isolation test voltage 3750 VRMS Low coupling capacitance of typical 0.3 p F Current Transfer Ratio (CTR) selected into groups
Low temperature coefficient of CTR Wide ambient temperature range Lead (Pb)-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Agency Approvals
UL1577, File No. E76222 System Code M, Double Protection C-UL CSA 22.2 bulletin 5A, Double Protection DIN EN 60747-5-2 (VDE0884) Order Information DIN EN 60747-5-5 pending
Part Remarks
TCMT1100 CTR 50 - 600 %, SOP-4
Applications
TCMT1102 CTR 63 - 125 %, SOP-4
Programmable logic controllers
TCMT1103 CTR 100 - 200 %, SOP-4
Modems
TCMT1104 CTR 160 - 320 %, SOP-4
Answering machines
TCMT1105 CTR 50 - 150 %, SOP-4
General applications
TCMT1106 CTR 100 - 300 %, SOP-4 TCMT1107 CTR 80 - 160 %, SOP-4
Description
TCMT1108 CTR 130 - 260 %, SOP-4
The TCMT11.. Series consist of a phototransistor
TCMT1109 CTR 200 - 400 %, SOP-4
optically coupled to a gallium arsenide infrared-emit-
TCMT4100 CTR 50 - 600 %, Quad
ting diode in an 4-pin (single channel) up to 16-pin
Channel, SOP-16
(quad channel) package. The elements are mounted on one leadframe provid- ing a fixed distance between input and output for high- est safety requirements.
