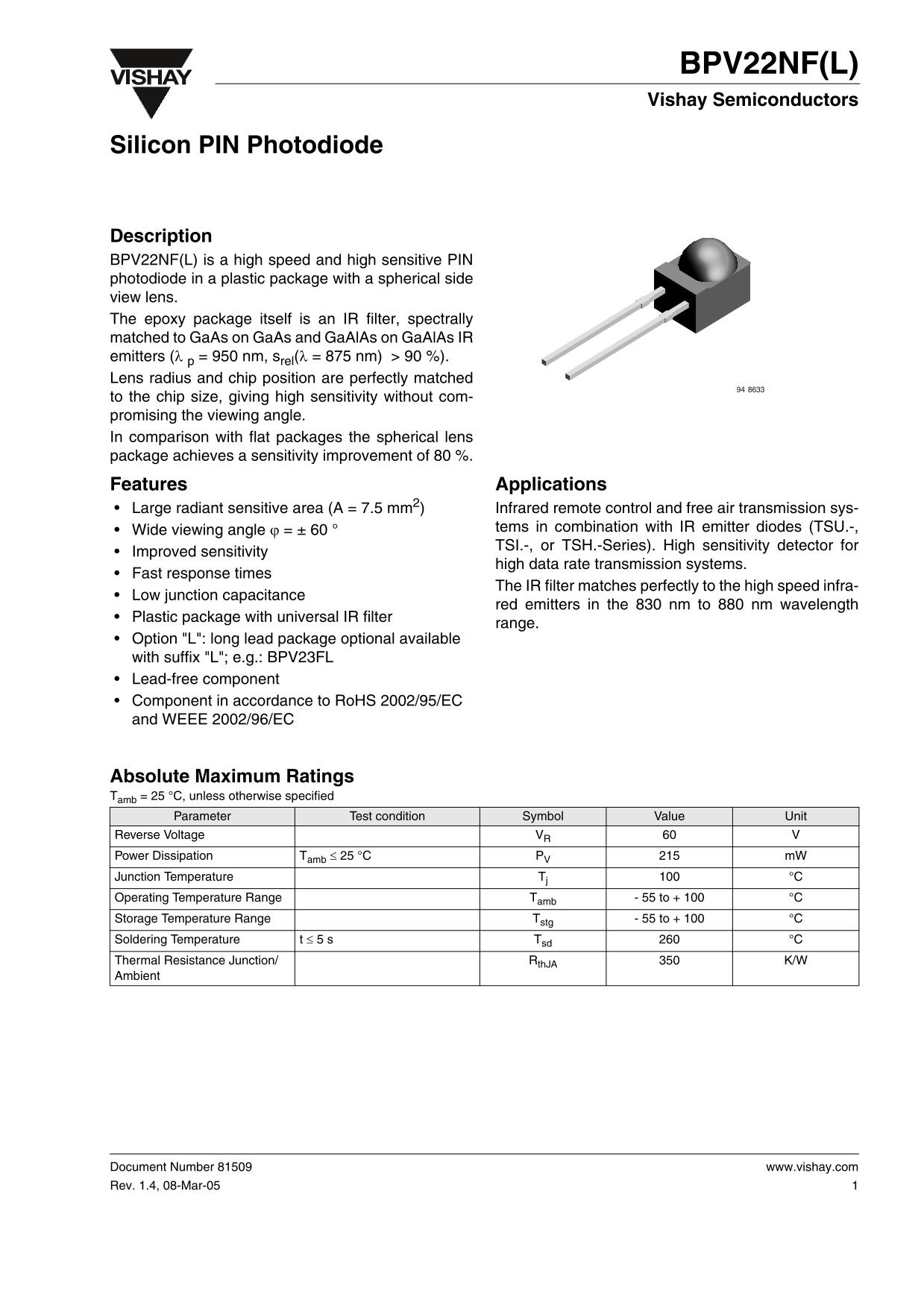

BPV22NF(L) Vishay Semiconductors

Silicon PIN Photodiode

Description BPV22NF(L) is a high speed and high sensitive PIN photodiode in a plastic package with a spherical side view lens. The epoxy package itself is an IR filter, spectrally matched to Ga As on Ga As and Ga Al As on Ga Al As IR emitters (λ p = 950 nm, srel(λ = 875 nm) > 90 %). Lens radius and chip position are perfectly matched to the chip size, giving high sensitivity without com- promising the viewing angle. In comparison with flat packages the spherical lens package achieves a sensitivity improvement of 80 %.

Features Applications Large radiant sensitive area (A = 7.5 mm2) Infrared remote control and free air transmission sys-

Wide viewing angle ϕ = ± 60 tems in combination with IR emitter diodes (TSU.-, TSI.-, or TSH.-Series). High sensitivity detector for

Improved sensitivity

high data rate transmission systems.

Fast response times

The IR filter matches perfectly to the high speed infra-

Low junction capacitance

red emitters in the 830 nm to 880 nm wavelength

Plastic package with universal IR filter

range.

Option "L": long lead package optional available with suffix "L"; e.g.: BPV23FL Lead-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC

Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified

Parameter Test condition Symbol Value Unit

Reverse Voltage VR Power Dissipation Tamb ≤ 25 °C PV m W Junction Temperature Tj °C Operating Temperature Range Tamb - 55 to + 100 °C Storage Temperature Range Tstg - 55 to + 100 °C Soldering Temperature t ≤ 5 s Tsd °C Thermal Resistance Junction/ Rth JA K/W Ambient

Document Number 81509 www.vishay.com Rev. 1.4, 08-Mar-05
