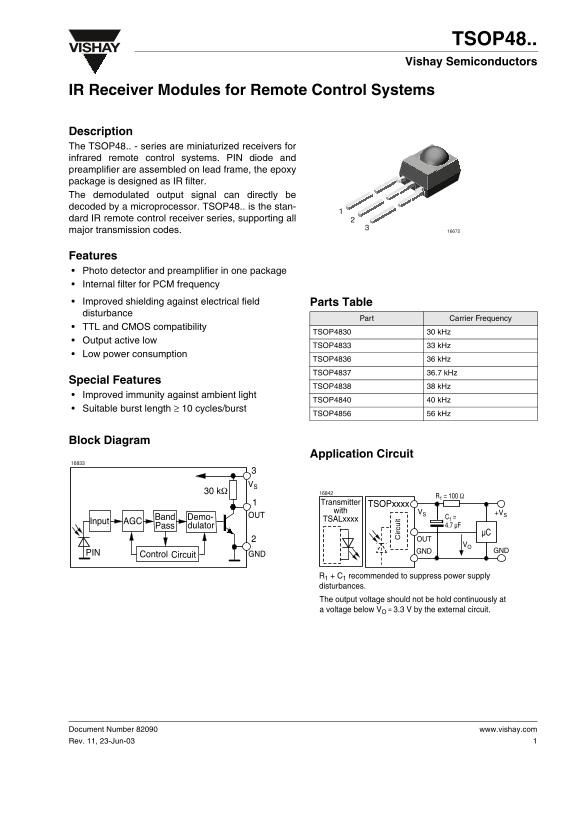

Page 1 Text Content
TSOP48..
VISHAY
Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
Description The TSOP48.. - series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. TSOP48.. is the stan- dard IR remote control receiver series, supporting all major transmission codes.
Features Photo detector and preamplifier in one package Internal filter for PCM frequency Improved shielding against electrical field Parts Table disturbance
Part Carrier Frequency
TTL and CMOS compatibility
TSOP4830 30 k Hz
Output active low
TSOP4833 33 k Hz
Low power consumption
TSOP4836 36 k Hz
TSOP4837 36.7 k Hz
Special Features
TSOP4838 38 k Hz
Improved immunity against ambient light
ir cu it
TSOP4840 40 k Hz
Suitable burst length ≥ 10 cycles/burst
TSOP4856 56 k Hz
Block Diagram
Application Circuit
Transmitter TSOPxxxx with VS +VS
Band OUTDemo- C1
TSALxxxx
AGCInput
Pass dulator 4.7 µF
GND GND
PIN Control Circuit GND
R1 C1 recommended to suppress power supply disturbances. The output voltage should not be hold continuously at voltage below VO 3.3 by the external circuit.
Document Number 82090 www.vishay.com Rev. 11, 23-Jun-03
