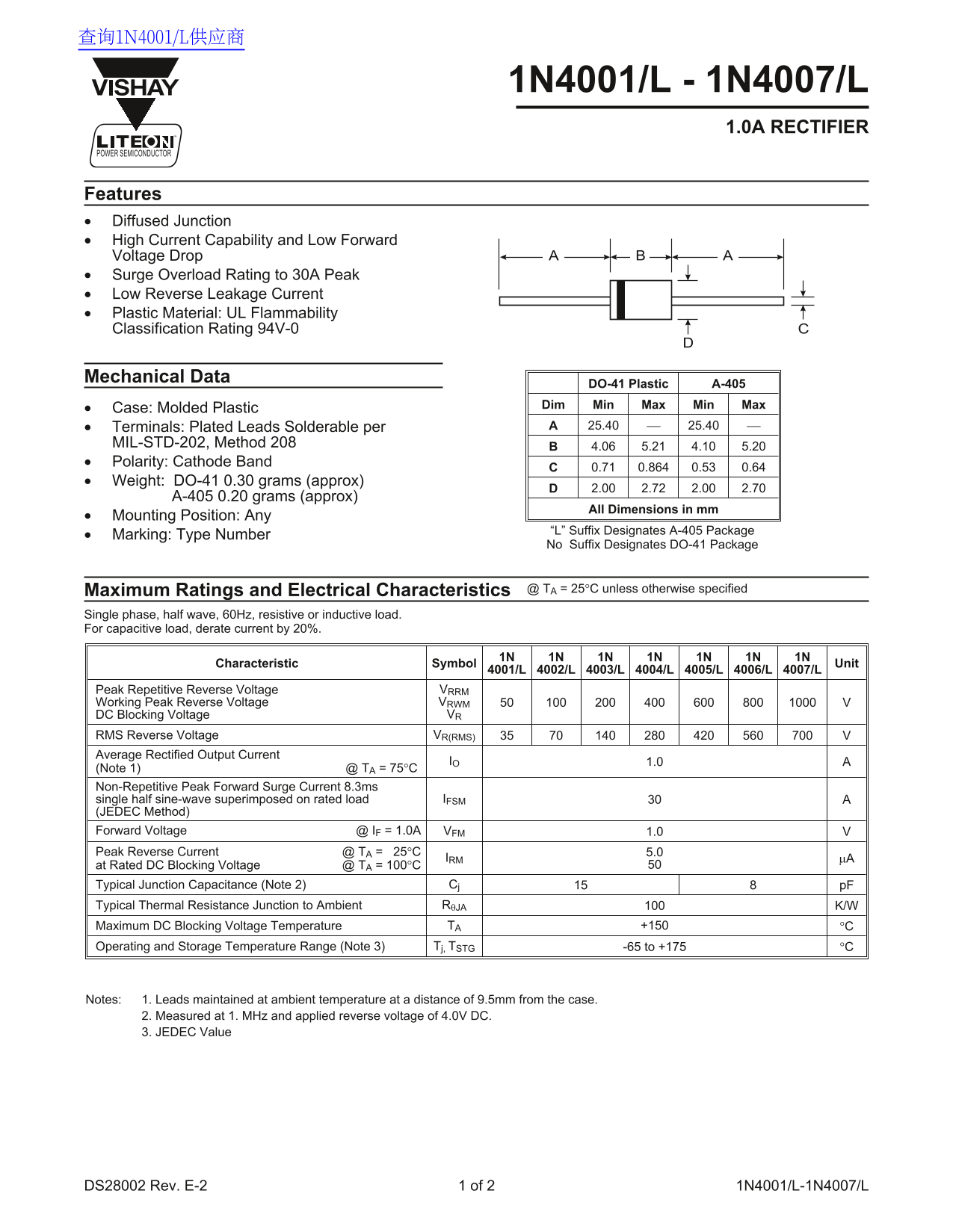

Page 1 Text Content
1.0A RECTIFIER
POWER SEMICONDUCTOR
Features Diffused Junction High Current Capability and Low Forward
Voltage Drop AB
Surge Overload Rating to 30A Peak Low Reverse Leakage Current Plastic Material: UL Flammability Classification Rating 94V-0
Mechanical Data
DO-41 Plastic A-405 Dim Min Max Min Max
Case: Molded Plastic
Terminals: Plated Leads Solderable per 25.40 25.40
MIL-STD-202, Method 208 4.06 5.21 4.10 5.20 Polarity: Cathode Band
Weight: DO-41 0.30 grams (approx)
A-405 0.20 grams (approx)
All Dimensions in mm
Mounting Position: Any
“L” Suffix Designates A-405 Package
Marking: Type Number
No Suffix Designates DO-41 Package
Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic Symbol Unit
4001/L 4002/L 4003/L 4004/L 4005/L 4006/L 4007/L Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM DC Blocking Voltage VR
RMS Reverse Voltage VR(RMS)
Average Rectified Output Current
IO 1.0
(Note 1) @ TA = 75°C
Non-Repetitive Peak Forward Surge Current 8.3ms
single half sine-wave superimposed on rated load IFSM
(JEDEC Method) Forward Voltage @ IF = 1.0A VFM 1.0 Peak Reverse Current @ TA = 25°C 5.0
IRM µA
at Rated DC Blocking Voltage @ TA = 100°C
Typical Junction Capacitance (Note 2) Cj p F Typical Thermal Resistance Junction to Ambient RθJA K/W Maximum DC Blocking Voltage Temperature TA +150 °C Operating and Storage Temperature Range (Note 3) Tj, TSTG -65 to +175 °C
Notes: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case.
2. Measured at 1. MHz and applied reverse voltage of 4.0V DC. 3. JEDEC Value
DS28002 Rev. E-2 of 2 1N4001/L-1N4007/L
