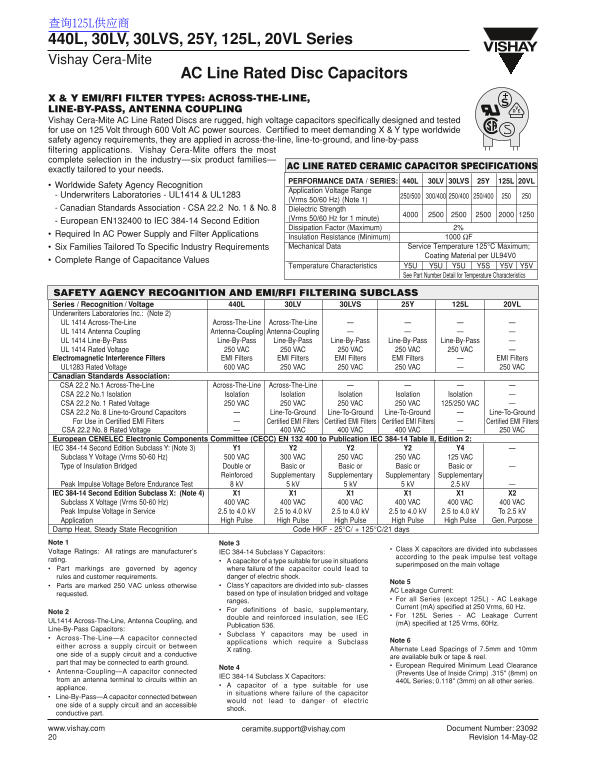

Vishay 440L, 30LV, 30LVS, 25Y, 125L, 20VL Series Data Sheet

查询125L供应商 440L, 30LV, 30LVS, 25Y, 125L, 20VL Series Vishay Cera-Mite

AC Line Rated Disc Capacitors

X & Y EMI/RFI FILTER TYPES: ACROSS-THE-LINE, LINE-BY-PASS, ANTENNA COUPLING Vishay Cera-Mite AC Line Rated Discs are rugged, high voltage capacitors specifi cally designed and tested for use on 125 Volt through 600 Volt AC power sources. Certifi ed to meet demanding X & Y type worldwide safety agency requirements, they are applied in across-the-line, line-to-ground, and line-by-pass fi ltering applications. Vishay Cera-Mite offers the most complete selection in the industry—six product families—

AC LINE RATED CERAMIC CAPACITOR SPECIFICATIONS

exactly tailored to your needs.

PERFORMANCE DATA / SERIES: 440L 30LV 30LVS 25Y 125L 20VL

• Worldwide Safety Agency Recognition

Application Voltage Range

- Underwriters Laboratories - UL1414 & UL1283 250/500 300/400 250/400 250/400 250 250(Vrms 50/60 Hz) (Note 1)

- Canadian Standards Association - CSA 22.2 No. 1 & No. 8 Dielectric Strength

4000 2500 2500 2500 2000 1250(Vrms 50/60 HZ for 1 minute)

- European EN132400 to IEC 384-14 Second Edition

Dissipation Factor (Maximum) 2%

• Required In AC Power Supply and Filter Applications

Insulation Resistance (Minimum) 1000 ΩF • Six Families Tailored To Specific Industry Requirements Mechanical Data Service Temperature 125°C Maximum; Coating Material per UL94V0

• Complete Range of Capacitance Values

Temperature Characteristics Y5U Y5U Y5U Y5S Y5V Y5V See Part Number Detail for Temperature Characteristics

SAFETY AGENCY RECOGNITION AND EMI/RFI FILTERING SUBCLASS Series / Recognition / Voltage 440L 30LV 30LVS 25Y 125L 20VL Underwriters Laboratories Inc.: (Note 2) UL 1414 Across-The-Line Across-The-Line Across-The-Line — — — UL 1414 Antenna Coupling Antenna-Coupling Antenna-Coupling — — — UL 1414 Line-By-Pass Line-By-Pass Line-By-Pass Line-By-Pass Line-By-Pass Line-By-Pass UL 1414 Rated Voltage 250 VAC 250 VAC 250 VAC 250 VAC 250 VAC — Electromagnetic Interference Filters EMI Filters EMI Filters EMI Filters EMI Filters — EMI Filters UL1283 Rated Voltage 600 VAC 250 VAC 250 VAC 250 VAC 250 VAC Canadian Standards Association: CSA 22.2 No.1 Across-The-Line Across-The-Line Across-The-Line — — — CSA 22.2 No.1 Isolation Isolation Isolation Isolation Isolation Isolation CSA 22.2 No. 1 Rated Voltage 250 VAC 250 VAC 250 VAC 250 VAC 125/250 VAC CSA 22.2 No. 8 Line-to-Ground Capacitors — Line-To-Ground Line-To-Ground Line-To-Ground — Line-To-Ground For Use in Certified EMI Filters — Certified EMI Filters Certified EMI Filters Certified EMI Filters — Certified EMI Filters CSA 22.2 No. 8 Rated Voltage — 400 VAC 400 VAC 400 VAC — 250 VAC European CENELEC Electronic Components Committee (CECC) EN 132 400 to Publication IEC 384-14 Table II, Edition 2: IEC 384 -14 Second Edition Subclass Y: (Note 3) Y1 Y2 Y2 Y2 Y4 Subclass Y Voltage (Vrms 50-60 Hz) 500 VAC 300 VAC 250 VAC 250 VAC 125 VAC Type of Insulation Bridged Double or Basic or Basic or Basic or Basic or Reinforced Supplementary Supplementary Supplementary Supplementary Peak Impulse Voltage Before Endurance Test 8 k V 5 k V 5 k V 5 k V 2.5 k V — IEC 384-14 Second Edition Subclass X: (Note 4) X1 X1 X1 X1 X1 X2 Subclass X Voltage (Vrms 50-60 Hz) 400 VAC 400 VAC 400 VAC 400 VAC 400 VAC 400 VAC Peak Impulse Voltage in Service 2.5 to 4.0 k V 2.5 to 4.0 k V 2.5 to 4.0 k V 2.5 to 4.0 k V 2.5 to 4.0 k V To 2.5 k V Application High Pulse High Pulse High Pulse High Pulse High Pulse Gen. Purpose Damp Heat, Steady State Recognition Code HKF - 25°C/ + 125°C/21 days

Note 1 Note 3

Class X capacitors are divided into subclasses

Voltage Ratings: All ratings are manufacturer’s IEC 384-14 Subclass Y Capacitors:

according to the peak impulse test voltage

rating. A capacitor of a type suitable for use in situations

superimposed on the main voltage

• Part markings are governed by agency where failure of the capacitor could lead to

rules and customer requirements. danger of electric shock.

Note 5

Parts are marked 250 VAC unless otherwise Class Y capacitors are divided into sub- classes

AC Leakage Current:

requested. based on type of insulation bridged and voltage

ranges. For all Series (except 125L) - AC Leakage Current (m A) specifi ed at 250 Vrms, 60 Hz.

For definitions of basic, supplementary,

Note 2

For 125L Series - AC Leakage Current

double and reinforced insulation, see IEC

UL1414 Across-The-Line, Antenna Coupling, and

(m A) specifi ed at 125 Vrms, 60Hz.

Publication 536.

Line-By-Pass Capacitors:

Subclass Y capacitors may be used in

Across-The-Line—A capacitor connected

applications which require a Subclass Note 6

either across a supply circuit or between

X rating. Alternate Lead Spacings of 7.5mm and 10mm

one side of a supply circuit and a conductive

are available bulk or tape & reel.

part that may be connected to earth ground.

European Required Minimum Lead Clearance

Note 4

Antenna-Coupling—A capacitor connected (Prevents Use of Inside Crimp) .315" (8mm) on

IEC 384-14 Subclass X Capacitors:

from an antenna terminal to circuits within an 440L Series; 0.118" (3mm) on all other series.

A capacitor of a type suitable for use

appliance.

in situations where failure of the capacitor

Line-By-Pass—A capacitor connected between

would not lead to danger of electric

one side of a supply circuit and an accessible

shock.

conductive part.
