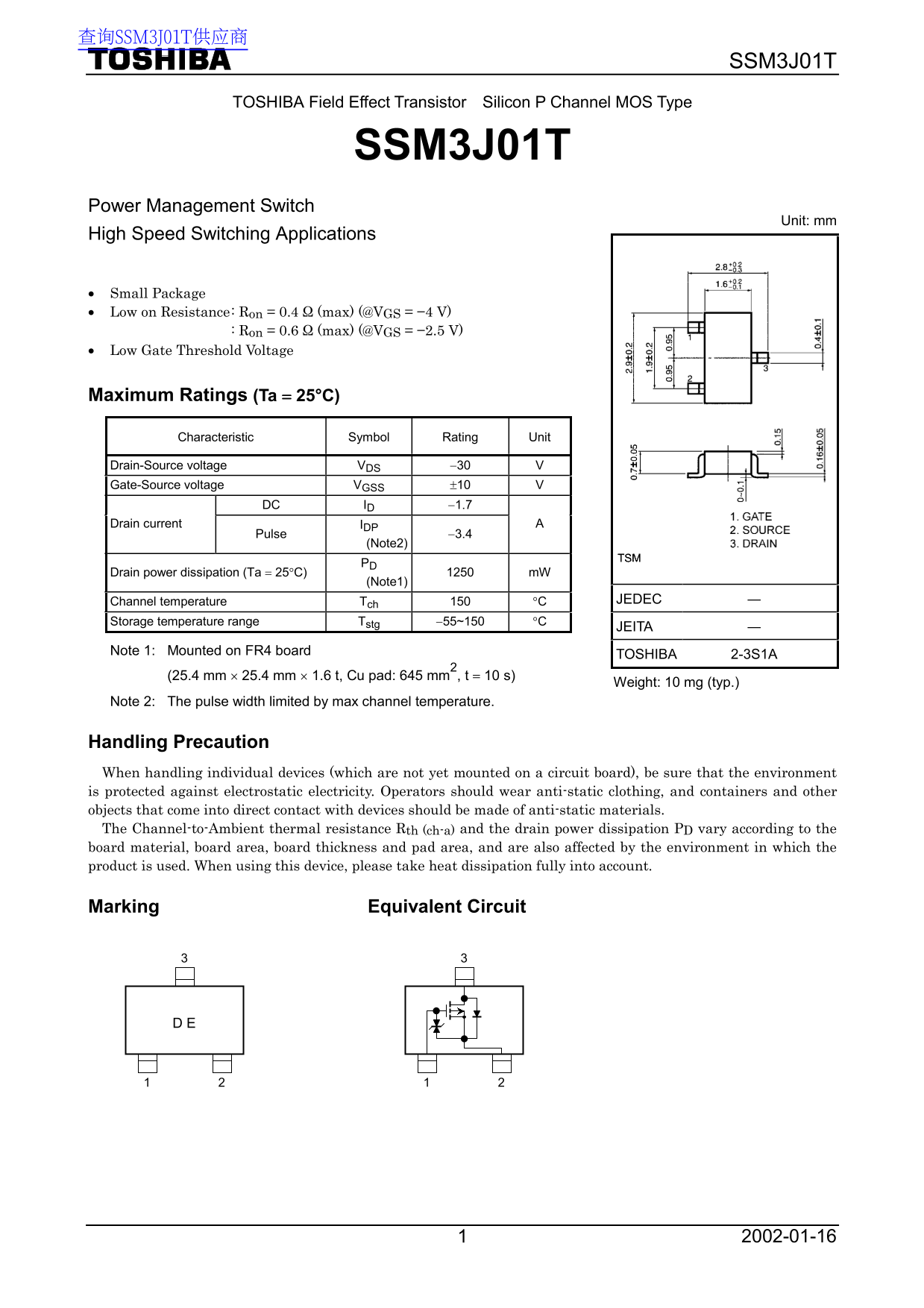

Page 1 Text Content

查询SSM3J01T供应商

SSM3J01T

TOSHIBA Field Effect Transistor Silicon P Channel MOS Type

SSM3J01T

Power Management Switch

Unit: mm

High Speed Switching Applications

Small Package Low on Resistance : Ron = 0.4 Ω (max) (@VGS = −4 V) : Ron = 0.6 Ω (max) (@VGS = −2.5 V) Low Gate Threshold Voltage

Maximum Ratings (Ta  25°C)

Characteristic Symbol Rating Unit

Drain-Source voltage VDS 30 V Gate-Source voltage VGSS 10 V

DC ID 1.7

Drain current IDP

Pulse 3.4

(Note2) PD

Drain power dissipation (Ta  25C) 1250 m W

(Note1)

Channel temperature Tch 150 C JEDEC ―

Storage temperature range Tstg 55~150 C

JEITA ―

Note 1: Mounted on FR4 board

TOSHIBA 2-3S1A

(25.4 mm  25.4 mm  1.6 t, Cu pad: 645 mm2, t  10 s)

Weight: 10 mg (typ.)

Note 2: The pulse width limited by max channel temperature.

Handling Precaution When handling individual devices (which are not yet mounted on a circuit board), be sure that the environment is protected against electrostatic electricity. Operators should wear anti-static clothing, and containers and other objects that come into direct contact with devices should be made of anti-static materials. The Channel-to-Ambient thermal resistance Rth (ch-a) and the drain power dissipation PD vary according to the board material, board area, board thickness and pad area, and are also affected by the environment in which the product is used. When using this device, please take heat dissipation fully into account.

Marking Equivalent Circuit
