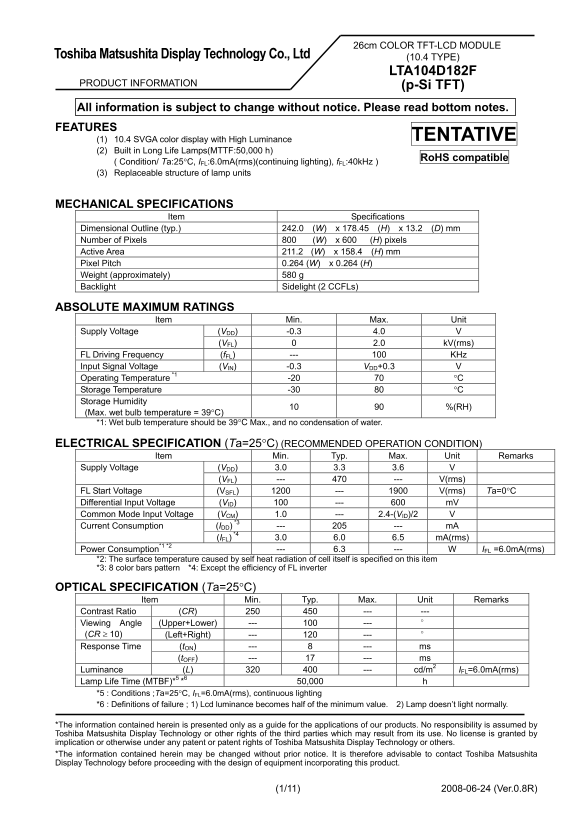

Toshiba Product Information - (1 11) 2008-06-24 (Ver.0.8R)

26cm COLOR TFT-LCD MODULE

Toshiba Matsushita Display Technology Co., Ltd (10.4 TYPE)

LTA104D182F

PRODUCT INFORMATION (p-Si TFT)

All information is subject to change without notice. Please read bottom notes. FEATURES

(1) 10.4 SVGA color display with High Luminance TENTATIVE

(2) Built in Long Life Lamps(MTTF:50,000 h)

Ro HS compatible

( Condition/ Ta:25°C, IFL:6.0m A(rms)(continuing lighting), f FL:40k Hz ) (3) Replaceable structure of lamp units

MECHANICAL SPECIFICATIONS

Item Specifications

Dimensional Outline (typ.) 242.0 (W) x 178.45 (H) x 13.2 (D) mm Number of Pixels 800 (W) x 600 (H) pixels Active Area 211.2 (W) x 158.4 (H) mm Pixel Pitch 0.264 (W) x 0.264 (H) Weight (approximately) 580 g Backlight Sidelight (2 CCFLs)

ABSOLUTE MAXIMUM RATINGS

Item Min. Max. Unit

(VDD) -0.3 4.0 V Supply Voltage (VFL) 0 2.0 k V(rms)

FL Driving Frequency (f FL) --- 100 KHz Input Signal Voltage (VIN) -0.3 VDD+0.3 V Operating Temperature *1 -20 70 °C Storage Temperature -30 80 °C Storage Humidity (Max. wet bulb temperature = 39°C) 10 90 %(RH) *1: Wet bulb temperature should be 39°C Max., and no condensation of water.

ELECTRICAL SPECIFICATION (Ta=25°C) (RECOMMENDED OPERATION CONDITION)

Item Min. Typ. Max. Unit Remarks

(VDD) 3.0 3.3 3.6 V Supply Voltage (VFL) --- 470 --- V(rms)

FL Start Voltage (VSFL) 1200 --- 1900 V(rms) Ta=0°C Differential Input Voltage (VID) 100 --- 600 m V Common Mode Input Voltage (VCM) 1.0 --- 2.4-(VID)/2 V

(IDD) *3 --- 205 --- m A Current Consumption (IFL) *4 3.0 6.0 6.5 m A(rms)

Power Consumption*1 *2 --- 6.3 --- W IFL =6.0m A(rms) *2: The surface temperature caused by self heat radiation of cell itself is specified on this item *3: 8 color bars pattern *4: Except the efficiency of FL inverter

OPTICAL SPECIFICATION (Ta=25°C)

Item Min. Typ. Max. Unit Remarks

Contrast Ratio (CR) 250 450 --- ---

(Upper+Lower) --- 100 --- ° Viewing Angle

(CR ≥ 10) (Left+Right) --- 120 --- °

(t ON) --- 8 --- ms Response Time (t OFF) --- 17 --- ms

Luminance (L) 320 400 --- cd/m2 IFL=6.0m A(rms) Lamp Life Time (MTBF)*5 *6 50,000 h *5 : Conditions ;Ta=25°C, IFL=6.0m A(rms), continuous lighting *6 : Definitions of failure ; 1) Lcd luminance becomes half of the minimum value. 2) Lamp doesn’t light normally.

*The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by Toshiba Matsushita Display Technology or other rights of the third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Toshiba Matsushita Display Technology or others. *The information contained herein may be changed without prior notice. It is therefore advisable to contact Toshiba Matsushita Display Technology before proceeding with the design of equipment incorporating this product.

(1/11) 2008-06-24 (Ver.0.8R)
