Texas Instruments TLC4501, TLC4501A, TLC4502, TLC4502A Family of Self-Calibrating (Self-Cal) Precision CMOS Rail-to-Rail Output Operational Amplifiers datasheet user manual

Summary

These high-precision, self-calibrating CMOS operational amplifiers are designed for demanding analog applications requiring exceptional accuracy and stable performance. The amplifiers offer reliable rail-to-rail output and feature proprietary self-calibration technology, eliminating the need for complex trimming circuits. Ideal for engineers designing data acquisition systems, measurement equipment, industrial control units, or portable scales, this manual provides comprehensive technical specifications, operating parameters, and application details to guide device selection and integration based on required environments (e.g., automotive qualification).

📄 Preview ‹ PAGE OF 32 ›

‹

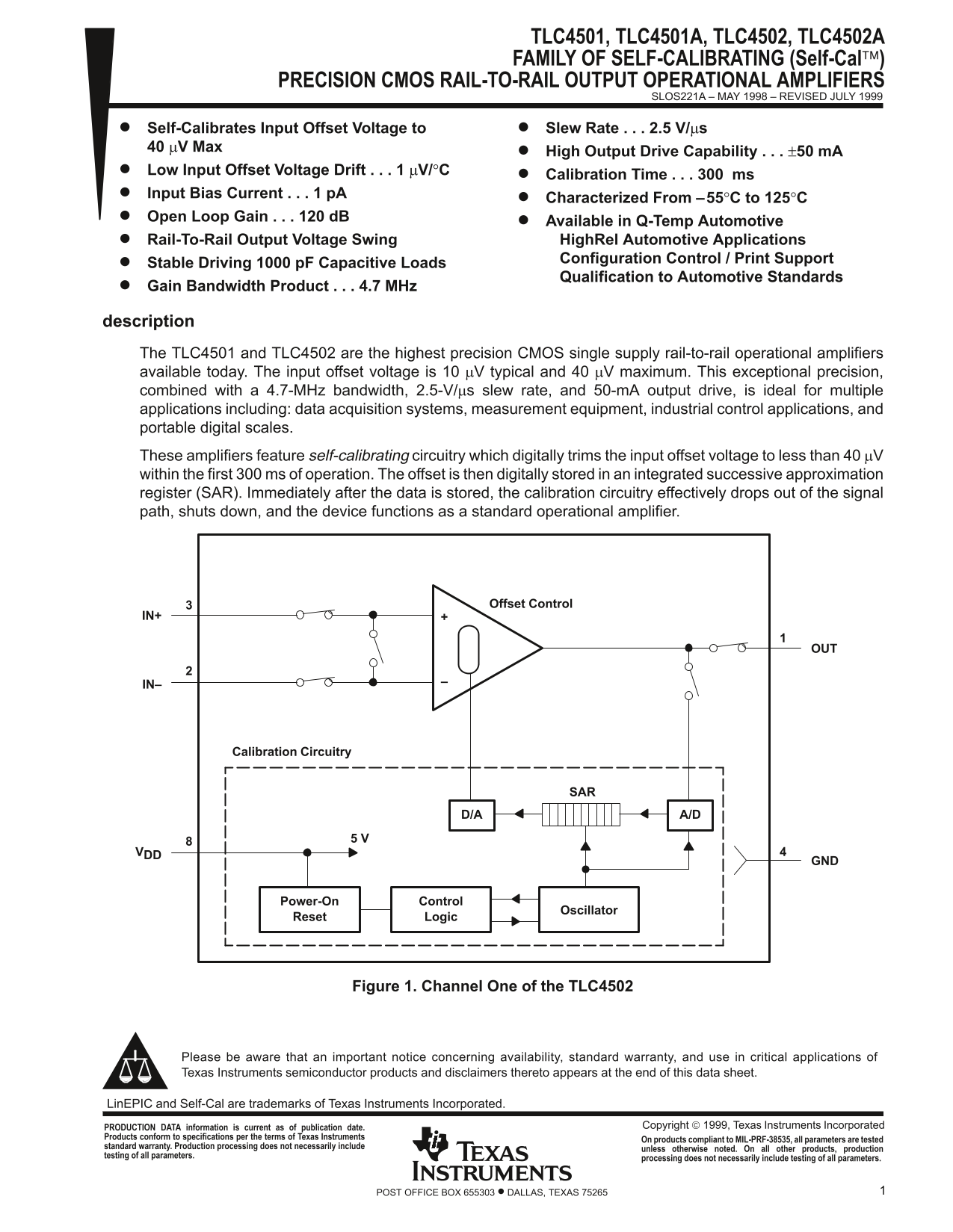

Texas Instruments TLC4501, TLC4501A, TLC4502, TLC4502A Family of Self-Calibrating (Self-Cal) Precision CMOS Rail-to-Rail Output Operational Amplifiers datasheet user manual - Page 1

›

Page 1 Text Content

TLC4501, TLC4501A, TLC4502, TLC4502A FAMILY OF SELF-CALIBRATING (Self-Cal)

PRECISION CMOS RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS

SLOS221A – MAY 1998 – REVISED JULY 1999

Self-Calibrates Input Offset Voltage to Slew Rate 2.5 V/µs 40 µV Max

High Output Drive Capability ±50 m A

Low Input Offset Voltage Drift 1 µV/°C

Calibration Time 300 ms

Input Bias Current 1 p A

Characterized From –55°C to 125°C

Open Loop Gain 120 d B

Available in Q-Temp Automotive

Rail-To-Rail Output Voltage Swing High Rel Automotive Applications

Configuration Control / Print Support

Stable Driving 1000 p F Capacitive Loads

Qualification to Automotive Standards

Gain Bandwidth Product 4.7 MHz

description The TLC4501 and TLC4502 are the highest precision CMOS single supply rail-to-rail operational amplifiers available today. The input offset voltage is 10 µV typical and 40 µV maximum. This exceptional precision, combined with a 4.7-MHz bandwidth, 2.5-V/µs slew rate, and 50-m A output drive, is ideal for multiple applications including: data acquisition systems, measurement equipment, industrial control applications, and portable digital scales. These amplifiers feature self-calibrating circuitry which digitally trims the input offset voltage to less than 40 µV within the first 300 ms of operation. The offset is then digitally stored in an integrated successive approximation register (SAR). Immediately after the data is stored, the calibration circuitry effectively drops out of the signal path, shuts down, and the device functions as a standard operational amplifier.

Offset Control3

Calibration Circuitry

Power-On Control

Oscillator

Reset Logic

Figure 1. Channel One of the TLC4502

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Lin EPIC and Self-Cal are trademarks of Texas Instruments Incorporated.

Products conform to specifications per the terms of Texas Instruments On products compliant to MIL-PRF-38535, all parameters are tested standard warranty. Production processing does not necessarily include unless otherwise noted. On all other products, production testing of all parameters. processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
