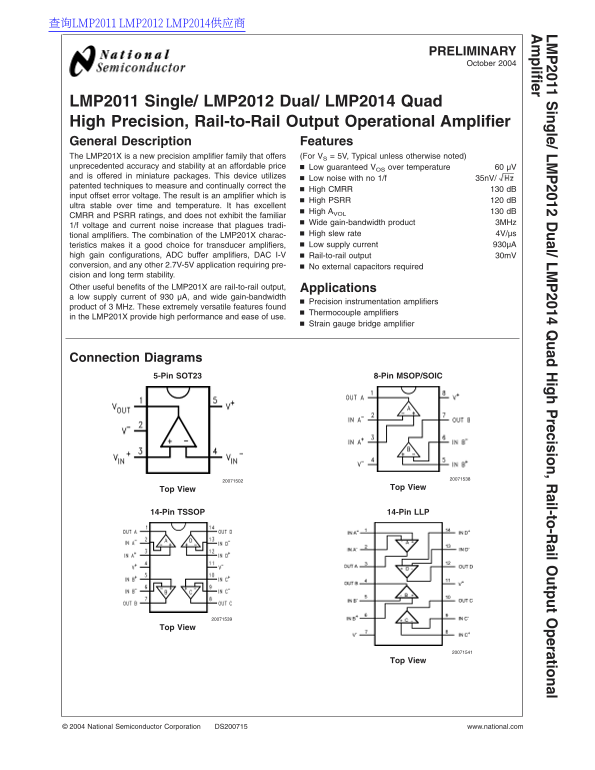

National Semiconductor LMP2011 Single LMP2012 Dual LMP2014 Quad High Precision, Rail-to-Rail Output Operational Amplifier User Manual and Data Sheet
Summary
These high-precision, rail-to-rail operational amplifiers (LMP201X) are designed for advanced analog circuits requiring exceptional stability and minimal drift. Ideal for engineers developing instrumentation, thermocouple, or signal acquisition systems, this series offers superior performance with low offset voltage, wide bandwidth, and impressive common mode rejection. The technical manual provides comprehensive datasheets detailing electrical characteristics, operating limits, and application guidelines for single, dual, and quad configurations.
Manual Details
| Brand | National |
|---|---|
| Pages | 16 |
| File Size | 667.98 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating temperature range for various models?
The recommended operating temperature ranges vary by model; for example, LMP2011MF to LMP2011MFX runs from -40˚C to 125˚C.
Are external capacitors needed for this amplifier family?
No, the device requires no external capacitors and maintains high precision and stability.
What is the guaranteed Common-Mode Rejection Ratio (CMRR)?
The published electrical specifications guarantee a CMRR of 130 dB when operating in the range -0.3 ≤ V ≤ 0.9V.
Does this amplifier support rail-to-rail output functionality?
Yes, the LMP201X family features excellent rail-to-rail output capabilities for various applications.
