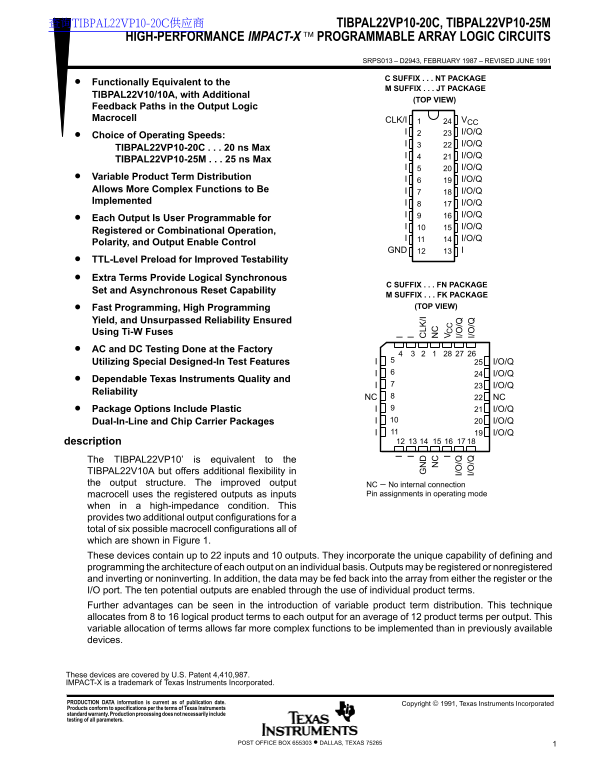

Texas Instruments TIBPAL22VP10-20C, TIBPAL22VP10-25M High-Performance Impact-X Programmable Array Logic Circuits Data Manual

查询TIBPAL22VP10-20C供应商 TIBPAL22VP10-20C, TIBPAL22VP10-25M

HIGH-PERFORMANCE IMPACT-X  PROGRAMMABLE ARRAY LOGIC CIRCUITS

SRPS013 – D2943, FEBRUARY 1987 – REVISED JUNE 1991

C SUFFIX . . . NT PACKAGE

Functionally Equivalent to the

M SUFFIX . . . JT PACKAGE

TIBPAL22V10/10A, with Additional

(TOP VIEW)

Feedback Paths in the Output Logic Macrocell CLK/I VCC

Choice of Operating Speeds:

TIBPAL22VP10-20C 20 ns Max

TIBPAL22VP10-25M 25 ns Max

Variable Product Term Distribution I/O/Q Allows More Complex Functions to Be I/O/Q Implemented I/O/Q

Each Output Is User Programmable for

Registered or Combinational Operation,

Polarity, and Output Enable Control

TTL-Level Preload for Improved Testability Extra Terms Provide Logical Synchronous

C SUFFIX . . . FN PACKAGE

Set and Asynchronous Reset Capability

M SUFFIX . . . FK PACKAGE Fast Programming, High Programming (TOP VIEW)

Yield, and Unsurpassed Reliability Ensured Using Ti-W Fuses AC and DC Testing Done at the Factory

Utilizing Special Designed-In Test Features I/O/Q I/O/Q

Dependable Texas Instruments Quality and

Reliability

NC NC

Package Options Include Plastic I/O/Q Dual-In-Line and Chip Carrier Packages I/O/Q

LK /I

description

The TIBPAL22VP10’ is equivalent to the I/O /Q I/O /Q TIBPAL22V10A but offers additional flexibility in I/O /Q I/O /Q

the output structure. The improved output NC No internal connection

macrocell uses the registered outputs as inputs Pin assignments in operating mode

when in a high-impedance condition. This provides two additional output configurations for a total of six possible macrocell configurations all of which are shown in Figure 1. These devices contain up to 22 inputs and 10 outputs. They incorporate the unique capability of defining and programming the architecture of each output on an individual basis. Outputs may be registered or nonregistered and inverting or noninverting. In addition, the data may be fed back into the array from either the register or the I/O port. The ten potential outputs are enabled through the use of individual product terms. Further advantages can be seen in the introduction of variable product term distribution. This technique allocates from 8 to 16 logical product terms to each output for an average of 12 product terms per output. This variable allocation of terms allows far more complex functions to be implemented than in previously available devices.

These devices are covered by U.S. Patent 4,410,987. IMPACT-X is a trademark of Texas Instruments Incorporated.

PRODUCTION DATA information is current as of publication date. Copyright  1991, Texas Instruments Incorporated Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
