Texas Instruments TAS5012 Data Handbook/Manual

Summary

Introducing the TAS5012 True Digital Audio Amplifier System—a high-efficiency, low-cost solution for modern audio design. This component provides advanced PCM-PWM modulation, enabling audiophiles to achieve superior performance with a 102-dB dynamic range and ultra-low THD+N (<0.06%). The technical documentation details its integration into diverse applications, including Home Theater, Car Audio, and Internet Music Appliances. Designed for engineers needing high-fidelity digital audio processing across various sampling rates (up to 192 kHz), this system ensures maximum power efficiency and pristine sound quality in next-generation audio systems.

📄 Preview ‹ PAGE OF 19 ›

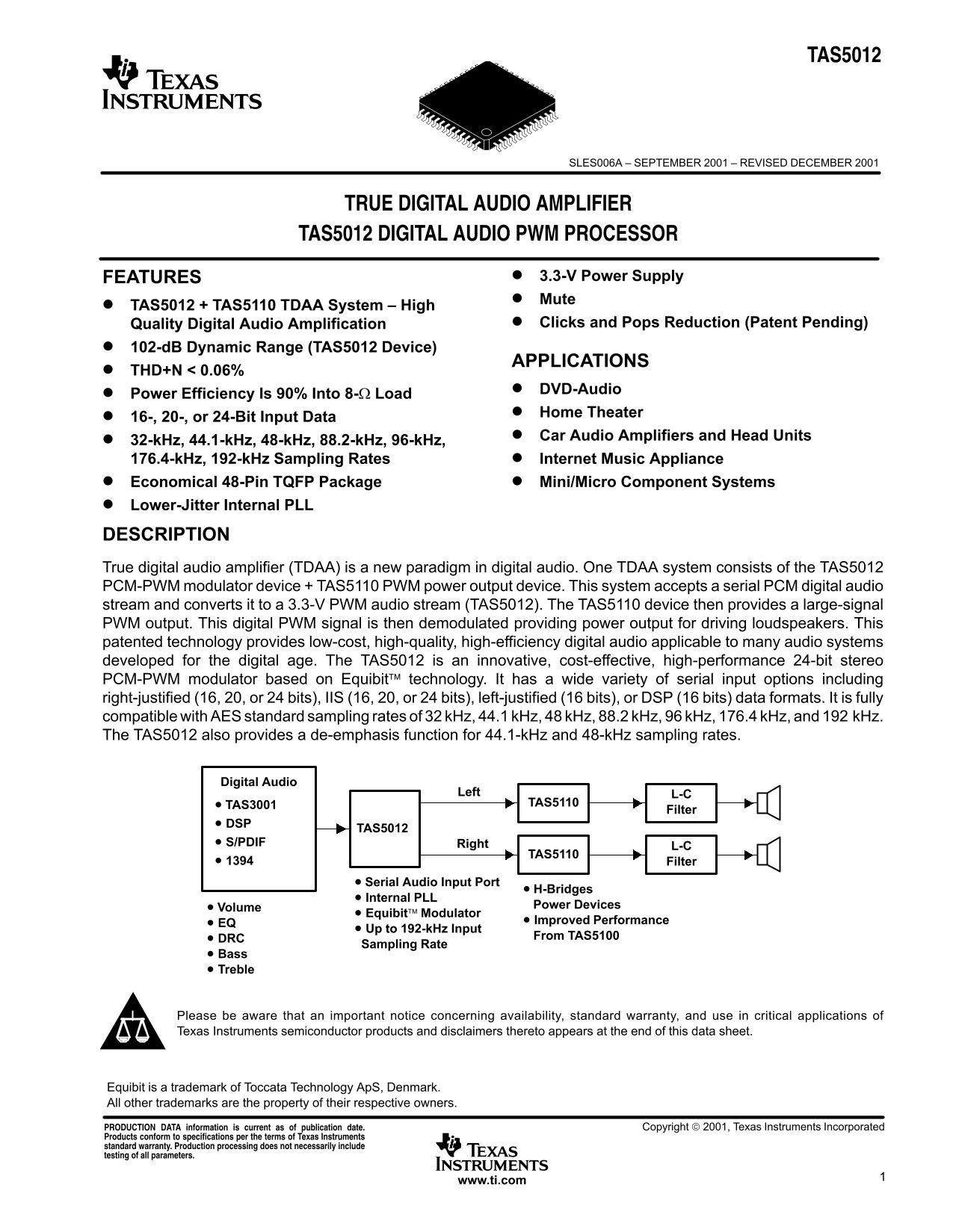

‹ Texas Instruments TAS5012 Data Handbook/Manual - Page 1 ›

Page 1 Text Content

TAS5012

SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001

TRUE DIGITAL AUDIO AMPLIFIER TAS5012 DIGITAL AUDIO PWM PROCESSOR

FEATURES 3.3-V Power Supply Mute

TAS5012 + TAS5110 TDAA System – High

Quality Digital Audio Amplification Clicks and Pops Reduction (Patent Pending)

102-d B Dynamic Range (TAS5012 Device)

APPLICATIONS

THD+N < 0.06%

DVD-Audio

Power Efficiency Is 90% Into 8-Ω Load

Home Theater

16-, 20-, or 24-Bit Input Data

Car Audio Amplifiers and Head Units

32-k Hz, 44.1-k Hz, 48-k Hz, 88.2-k Hz, 96-k Hz, 176.4-k Hz, 192-k Hz Sampling Rates Internet Music Appliance Economical 48-Pin TQFP Package Mini/Micro Component Systems Lower-Jitter Internal PLL DESCRIPTION True digital audio amplifier (TDAA) is a new paradigm in digital audio. One TDAA system consists of the TAS5012 PCM-PWM modulator device + TAS5110 PWM power output device. This system accepts a serial PCM digital audio stream and converts it to a 3.3-V PWM audio stream (TAS5012). The TAS5110 device then provides a large-signal PWM output. This digital PWM signal is then demodulated providing power output for driving loudspeakers. This patented technology provides low-cost, high-quality, high-efficiency digital audio applicable to many audio systems developed for the digital age. The TAS5012 is an innovative, cost-effective, high-performance 24-bit stereo PCM-PWM modulator based on Equibit technology. It has a wide variety of serial input options including right-justified (16, 20, or 24 bits), IIS (16, 20, or 24 bits), left-justified (16 bits), or DSP (16 bits) data formats. It is fully compatible with AES standard sampling rates of 32 k Hz, 44.1 k Hz, 48 k Hz, 88.2 k Hz, 96 k Hz, 176.4 k Hz, and 192 k Hz. The TAS5012 also provides a de-emphasis function for 44.1-k Hz and 48-k Hz sampling rates.

Digital Audio

• TAS3001 TAS5110

Filter

TAS5012

S/PDIF

TAS5110

Filter

• Serial Audio Input Port

• H-Bridges

Internal PLL

• Volume Power Devices

Equibit Modulator

EQ Improved Performance

Up to 192-k Hz Input

DRC From TAS5100

Sampling Rate

Bass Treble

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Equibit is a trademark of Toccata Technology Ap S, Denmark. All other trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date. Copyright  2001, Texas Instruments Incorporated

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1www.ti.com

Page Summary Contents For Texas Instruments TAS5012 Data Handbook/Manual

Page 1 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 TRUE DIGITAL AUDIO AMPLIFIER TAS5012 DIGITAL AUDIO PWM PROCESSOR FEATURES 3.3-V Power Supply Mute TAS5012 + TAS5110 TDAA System – High Quality...
Page 2 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 terminal assignments 48-Pin LQFP PACKAGE (TOP VIEW) MCLK_IN DVDD3_L AVDD2 PWM_AP_L PLL_FLT_OUT PWM_AM_L PLL_FLT_RET PWM_BM_L L_ IN AVSS2 PWM_B...
Page 3 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 functional block diagram PLL/Clock Generator _E _F LT _R PWM_AP_L _F LT _O PWM_AM_L PWM_BP_L _I LRCLK Serial Digital PWM_BM_L Equibit ID _L S...
Page 4 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 Terminal Functions TERMINAL I/O DESCRIPTION NAME NO. AVDD1 Analog supply for oscillator AVDD2 Analog supply for PLL AVSS1 Analog ground for os...
Page 5 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 functional description serial audio port The serial audio port consists of a shift clock (SCLK pin), a left/right frame synchronization clock ...
Page 6 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 functional description (continued) digital interpolation filter The 24-bit high-performance linear phase FIR interpolation filter up-samples t...
Page 7 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 functional description (continued) reset The reset signal for the TAS5012 must be applied whenever toggling the M_S, DBSPD signal. This reset ...
Page 8 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 functional description (continued) 10 µs Maximum 5 ms max Initialization VALID_L es se VALID_R PWM Outputs 50–50 Duty Cycle Inactive State Nor...
Page 9 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 functional description (continued) de-emphasis selection De-emphasis selection is accomplished by using the DEM_SEL and DEM_EN pins. See Table...
Page 10 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 functional description (continued) MSB first, right-justified (for 16, 20, 24 bits) LRCLK = Fs SDIN MSB LSB MSB LSB Left Channel Right Channel...
Page 11 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 functional description (continued) MSB left-justified serial interface format (for 16 bits) LRCLK = Fs SDIN MSB LSB MSB LSB Left Channel Right...
Page 12 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 absolute maximum ratings over operating free-air temperature (unless otherwise noted)† Analog supply voltage range, AVDD1, AVDD2 –0.3 V to 4.2...
Page 13 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 TAS5012/TAS5110 system performance measured at the speaker terminals See application note SLAA117. switching characteristics, TA = 25°C, DVDD1...
Page 14 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 PARAMETER MEASUREMENT INFORMATION th(SDIN)tsu(SDIN) SDIN ÎÎÎÎÎÎÎ Figure 11. Right-Justified, IIS, Left-Justified Serial Protocol Timing tsu(LR...
Page 15 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 PARAMETER MEASUREMENT INFORMATION LRCLK tw(FSHIGH) 64 SCLKs 16-Bit Left Channel Data 16-Bit Left Channel Data 32-Bit Ignore 16-Bit Left Channe...
Page 16 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 APPLICATION INFORMATION TAS5012 PLL_FLT_RET TAS5110 PWM_AP_L C2† H-Bridge PWM_AM_L PWM_BP_L PWM_BM_L PLL_FLT_OUT VALID_L RESET DEM_SEL Audio D...
Page 17 TAS5012 SLES006A – SEPTEMBER 2001 – REVISED DECEMBER 2001 MECHANICAL DATA PFB (S-PQFP-G48) PLASTIC QUAD FLATPACK 0,13 NOM 5,50 TYP 7,20 SQ Gage Plane 6,80 9,20 SQ 8,80 0,25 0,05 MIN Seating Plane 0,45...
Page 18 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and servic...
Page 19 WWW.ALLDATASHEET.COM Copyright © Each Manufacturing Company. All Datasheets cannot be modified without permission. This datasheet has been download from : www.All Data Sheet.com 100% Free Data Sheet S...

Manual Details

Brand Texas Instruments
Pages 19
File Size 236.77 KB
Published July 22, 2026
0 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What components are required to operate the TAS5012 amplifier?

The system requires both the TAS5012 PCM-PWM modulator device and the TAS5110 PWM power output device.

What range of sampling rates can this chip handle?

It is fully compatible with AES standard sampling rates from 32 kHz up to 192 kHz.

Does it support advanced audio sources like CD?

Yes, the TAS5012 provides a de-emphasis function specifically for 44.1 kHz and 48 kHz sampling rates.

What is the dynamic range of the TAS5012 device?

The TAS5012 device offers an impressive 102 dB dynamic range.
