This comprehensive technical manual provides detailed specifications for the Quad 2-Input NAND Gate logic IC (SN7400 series). It details various package options, electrical characteristics, thermal data, and ordering information for circuit designers. Use this guide to correctly select components for digital electronics projects, utilizing multiple IC packages including DIP, SOIC, MSOP, and specialized carriers.

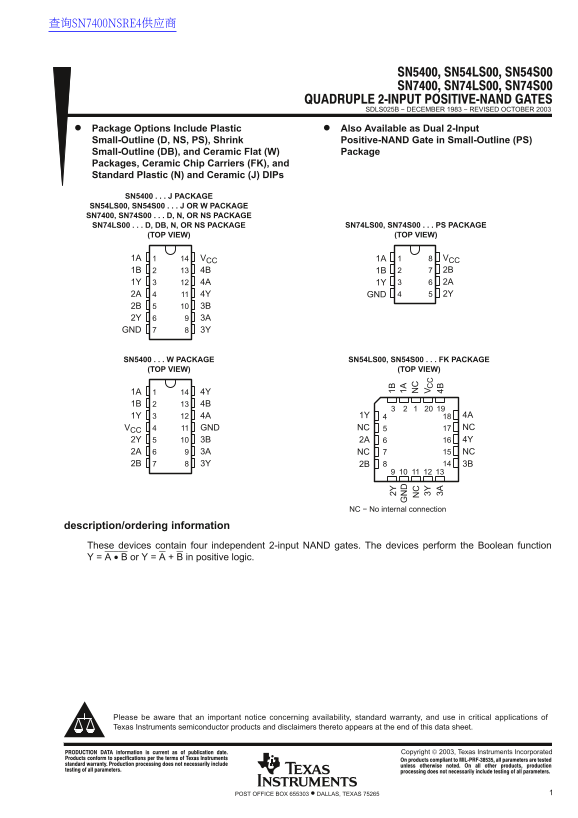

Page 1 Text Content
查询SN7400NSRE4供应商
SDLS025B − DECEMBER 1983 − REVISED OCTOBER 2003
Package Options Include Plastic Also Available as Dual 2-Input Small-Outline (D, NS, PS), Shrink Positive-NAND Gate in Small-Outline (PS) Small-Outline (DB), and Ceramic Flat (W) Package Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs
SN5400 J PACKAGE
SN54LS00, SN54S00 J OR W PACKAGE SN7400, SN74S00 D, N, OR NS PACKAGE
SN74LS00 D, DB, N, OR NS PACKAGE SN74LS00, SN74S00 PS PACKAGE
(TOP VIEW) (TOP VIEW)
1A VCC 1A VCC 1B 4B 1B 2B 1Y 4A 1Y 2A 2A 4Y GND 2Y
2B 3B 2Y 3A GND 3Y
SN5400 W PACKAGE SN54LS00, SN54S00 FK PACKAGE (TOP VIEW) (TOP VIEW)
1Y 4A 1Y 4A VCC GND 3Y NC NC 2Y 3B 3A 2A 4B 4Y
2A 3A NC NC 2B 3Y 2B 3B
NC − No internal connection
description/ordering information These devices contain four independent 2-input NAND gates. The devices perform the Boolean function Y = A • B or Y = A + B in positive logic.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments SN5400 SN54LS00 SN54S00 SN7400 SN74LS00 SN74S00 Data Handbook (1) User Manual
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 21 |
| File Size | 717.69 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What boolean function does the device perform?
The devices perform the Boolean function Y = A • B or Y = A + B in positive logic.
What is the storage temperature range for this component?
The storage temperature range is -65°C to 150°C.
Can I use different packages like PSOP, SOIC, and DIP?
Yes, various package options are available, including PDIP (e.g., SN7400N) and surface-mount types like PSOP/SOIC.
Will the product work in military or automotive applications?
The product is not designed or intended for use in these environments unless specifically designated by Texas Instruments.
