The PTH08000W is a high-efficiency switching regulator module designed to deliver up to 2.25A output current in a compact size. This manual provides comprehensive details on its usage, covering specifications for automatic voltage tracking (Auto-Track™), adjustable outputs (0.9V–5.5V), and integrated protection features like UVLO and overcurrent protection. It is ideal for engineers developing sophisticated electronics in telecommunications, instrumentation, and advanced consumer product sectors that require robust, heat-sink-free power conversion.

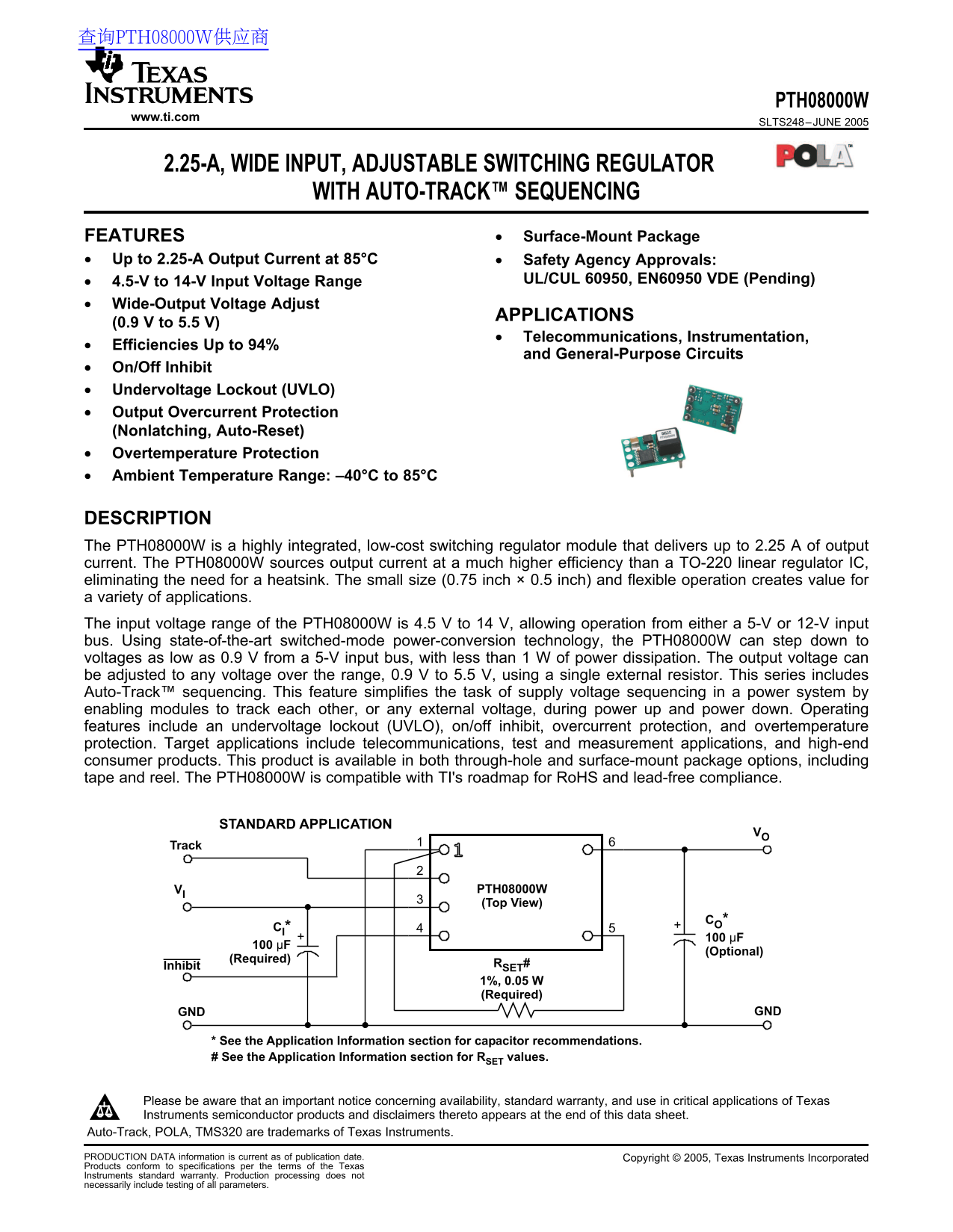

Page 1 Text Content
查询PTH08000W供应商
PTH08000W
www.ti.com
SLTS248–JUNE
2.25-A, WIDE INPUT, ADJUSTABLE SWITCHING REGULATOR
WITH AUTO-TRACK™ SEQUENCING
FEATURES Surface-Mount Package
Up to 2.25-A Output Current at 85°C Safety Agency Approvals:
4.5-V to 14-V Input Voltage Range UL/CUL 60950, EN60950 VDE (Pending)•
Wide-Output Voltage Adjust
APPLICATIONS
(0.9 to 5.5 V)
Telecommunications, Instrumentation,•
Efficiencies Up to 94%
and General-Purpose Circuits
On/Off Inhibit
Undervoltage Lockout (UVLO)
Output Overcurrent Protection
(Nonlatching, Auto-Reset)
Overtemperature Protection
Ambient Temperature Range: –40°C to 85°C
DESCRIPTION
The PTH08000W is highly integrated, low-cost switching regulator module that delivers up to 2.25 of output
current. The PTH08000W sources output current at much higher efficiency than TO-220 linear regulator IC,
eliminating the need for heatsink. The small size (0.75 inch 0.5 inch) and flexible operation creates value for
variety of applications.
The input voltage range of the PTH08000W is 4.5 to V, allowing operation from either 5-V or 12-V input
bus. Using state-of-the-art switched-mode power-conversion technology, the PTH08000W can step down to
voltages as low as 0.9 from 5-V input bus, with less than of power dissipation. The output voltage can
be adjusted to any voltage over the range, 0.9 to 5.5 V, using single external resistor. This series includes
Auto-Track™ sequencing. This feature simplifies the task of supply voltage sequencing in power system by
enabling modules to track each other, or any external voltage, during power up and power down. Operating
features include an undervoltage lockout (UVLO), on/off inhibit, overcurrent protection, and overtemperature
protection. Target applications include telecommunications, test and measurement applications, and high-end
consumer products. This product is available in both through-hole and surface-mount package options, including
tape and reel. The PTH08000W is compatible with TI's roadmap for Ro HS and lead-free compliance.
STANDARD APPLICATION
Track
VI PTH08000W (Top View)
(Optional)
(Required)
SETInhibit 1%, 0.05 W (Required)
GND GND
* See the Application Information section for capacitor recommendations. # See the Application Information section for R values.SET
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Auto-Track, POLA, TMS320 are trademarks of Texas Instruments.
PRODUCTION DATA information is current as of publication date. Copyright 2005, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Page Summary Contents For Texas Instruments PTH08000W Data Sheet Handbook
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 20 |
| File Size | 1.32 MB |
| Published | July 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What unique feature manages power system startup sequencing?
It features Auto-Track™ sequencing, allowing modules to track each other and external voltages during both power up and power down.
How can I adjust the regulated output voltage range?
The output voltage (between 0.9 V and 5.5 V) can be adjusted using a single external resistor provided on the module.
Does this switching regulator require an external heatsink?
No, because its high efficiency significantly reduces heat dissipation compared to traditional linear regulators.
What safety precaution should I take when handling this module?
To prevent electrostatic damage (ESD), the leads must be shorted together or placed in conductive foam during storage and handling.
